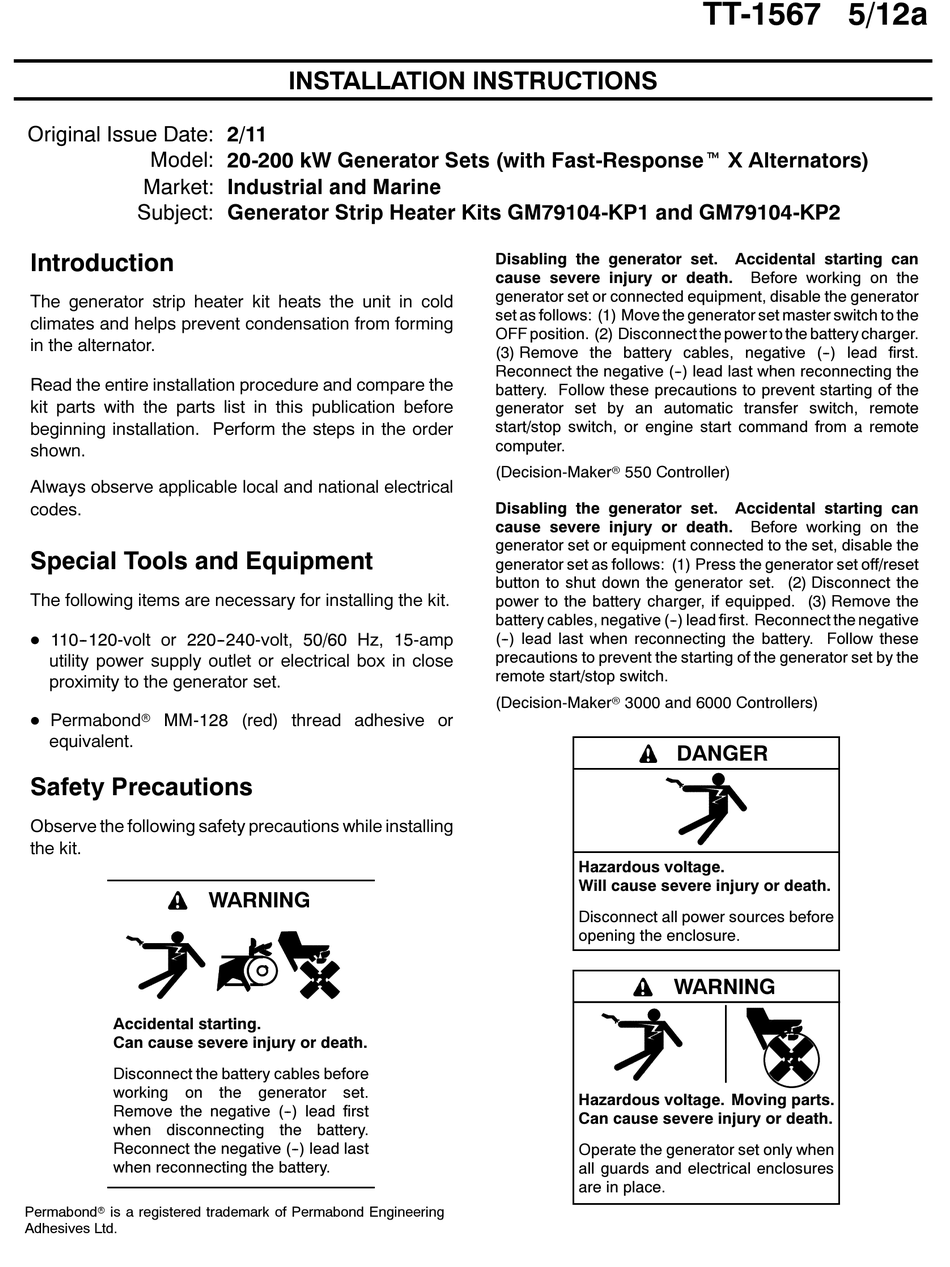

Original Issue Date: 2/11
Model: 20-200 kW Generator Sets (with Fast-Responset X Alternators)
Market: Industrial and Marine
Subject: Generator Strip Heater Kits GM79104-KP1 and GM79104-KP2

Introduction

The generator strip heater kit heats the unit in cold
climates and helps prevent condensation from forming
in the alternator.
Read the entire installation procedure and compare the
kit parts with the parts list in this publication before
beginning installation. Perform the steps in the order
shown.
Always observe applicable local and national electrical
codes.

Special Tools and Equipment

The following items are necessary for installing the kit.
D
110--120-volt or 220--240-volt, 50/60 Hz, 15-amp
utility power supply outlet or electrical box in close
proximity to the generator set.
D
Permabondr MM-128 (red) thread adhesive or
equivalent.

Safety Precautions

Observe the following safety precautions while installing
the kit.
Accidental starting.
Can cause severe injury or death.
Disconnect the battery cables before
working
on the
Remove the negative (--) lead first
when disconnecting the battery.
Reconnect the negative (--) lead last
when reconnecting the battery.
Permabondr is a registered trademark of Permabond Engineering
Adhesives Ltd.
INSTALLATION INSTRUCTIONS
WARNING
generator set.

Disabling the generator set.

cause severe injury or death.
generator set or connected equipment, disable the generator
set as follows: (1) Move the generator set master switch to the
OFF position. (2) Disconnect the power to the battery charger.
(3) Remove the battery cables, negative (--) lead first.
Reconnect the negative (--) lead last when reconnecting the
battery. Follow these precautions to prevent starting of the
generator set by an automatic transfer switch, remote
start/stop switch, or engine start command from a remote
computer.
(Decision-Makerr 550 Controller)
Disabling the generator set.
cause severe injury or death.
generator set or equipment connected to the set, disable the
generator set as follows: (1) Press the generator set off/reset
button to shut down the generator set. (2) Disconnect the
power to the battery charger, if equipped. (3) Remove the
battery cables, negative (--) lead first. Reconnect the negative
(--) lead last when reconnecting the battery. Follow these
precautions to prevent the starting of the generator set by the
remote start/stop switch.
(Decision-Makerr 3000 and 6000 Controllers)
Hazardous voltage.
Will cause severe injury or death.
Disconnect all power sources before
opening the enclosure.
WARNING
Hazardous voltage.
Can cause severe injury or death.
Operate the generator set only when
all guards and electrical enclosures
are in place.
TT-1567 5/12a
Accidental starting can
Before working on the
Accidental starting can
Before working on the
DANGER
Moving parts.
