Summary of Contents for Pleion ECO COMPACT Series
- Page 1 ECO COMPACT SOLAR SYSTEM Assembly and start-up manual Please contact Pleion S.r.l. for any information not contained in this manual...
-
Page 2: Table Of Contents
INDEX SAFETY WARNINGS _____________________________________ COMPOSITION _____________________________________ GENERAL INFORMATION _____________________________________ ECO COMPACT TANK _____________________________________ Description _____________________________________ Technical data _____________________________________ Plumbing details _____________________________________ Plumbing instruction _____________________________________ Electrical connections _____________________________________ START UP _____________________________________ Solar collectors _____________________________________ ECO COMPACT Tank _____________________________________ Solar control unit and pump _____________________________________ _____________________________________ WARRANTY CONDITIONS _____________________________________... -
Page 3: Safety Warnings
SAFETY WARNINGS Regulation-compliant, non-personal fall protection or safety netting or other Safety harnesses must be secured catch equipment, in accordance with DIN above the user if possible. Only 18338 Roof Covering and Roof Sealing secure safety harnesses to building Work and DIN 18451 Scaffolding Work elements or connection points with with Safety Net, must be installed before sufficient load-bearing capacity. -
Page 4: Composition

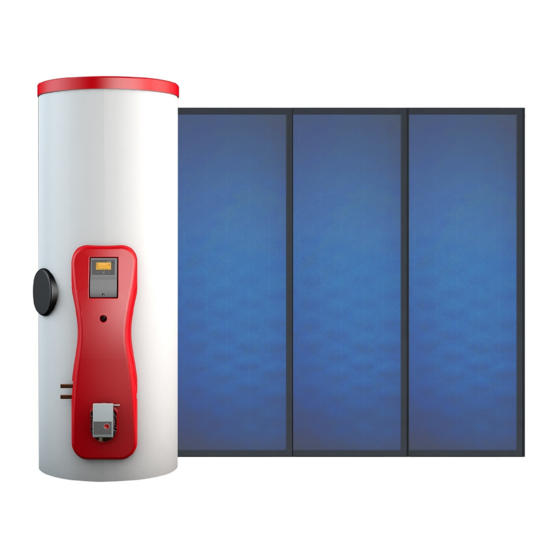

COMPOSITION Solar system ECO COMPACT is composed of the following articles: n.1 ECO COMPACT tank (available in sizes 200 liters, 300 liters, 500 liters). n.1, 2 or 3 solar collectors (X-RAY10, UNIKO, KSFG-25 or CSI model). The number of collectors depends on the size of the tank, according to the following scheme: n.1 collector for 200 liters;... -
Page 5: Technical Data
Technical Data Plumbing details... -
Page 6: Plumbing Instruction
Plumbing instructions (to be implemented on site) COLD SIDE HOT SIDE EXPANSION VESSEL The connections to the solar control unit are made of copper outer diameter 18 mm. Use copper or stainless steel corrugated, do not use plastic pipes and / or zinc. Use brass fittings to tighten with metal, weld copper with nickel silver, staple or tighten fittings with high temperature seals, loctite, teflon high temperature. -
Page 7: Electrical Connections
Electrical connections (to be implemented on site) SENSOR T3 (connected) ELECTRICAL RESISTANCE SLEEVE (not supplied) SOLAR SENSOR T1 (to be connected) POWER SUPPLY 220V – 50Hz SENSOR T2 (connected) The pump is wired directly to the power supply of control unit. The power cord of the control unit, wired on factory, comes out from the frontal cover in correspondence of the plumbing connections to the solar collectors and ends with a stretch of about 10/20 cm. -
Page 8: Start Up
It is recommended at installers and end-user to don't change the programming of solar control unit, in order to prevent not correct operation of the system. For any changes to the settings of the unit please contact the technical department of Pleion or the Service Center of competence. - Page 9 Loading Solar circuit To make the loading of the circuit will be necessary to have a solar charging station for solar installations. REAR VIEW SOLAR STATION FRONT VIEW SOLAR STATION TAP RIGHT: ATTACK TAP LEFT: AGAINST THE ATTACK OF SOLAR STATION DISCHARGE OF SOLAR STATION...
-
Page 10: Warranty Conditions
WARRANTY CONDITIONS Legal warranty All products supplied by Pleion have a legal warranty on defects in material or manufacturing that lasts for 24 months from the date of delivery. Commercial warranty Alongside the legal warranty, Pleion offers a commercial warranty on defects in material or manufacturing of the products supplied, with effect from the date of delivery for a period of: - 60 months for solar collectors. - Page 11 Via Venezia,11 - 37053 Cerea - VR - Tel. +39 0442.320.295 Fax +39 0442.327.742 www.pleion.it – info@pleion.it Pleion Srl reserves the right to make any technical, aesthetic and sales modification without no prior warning. ING version - Release 1.2 del 07/01/2013...
