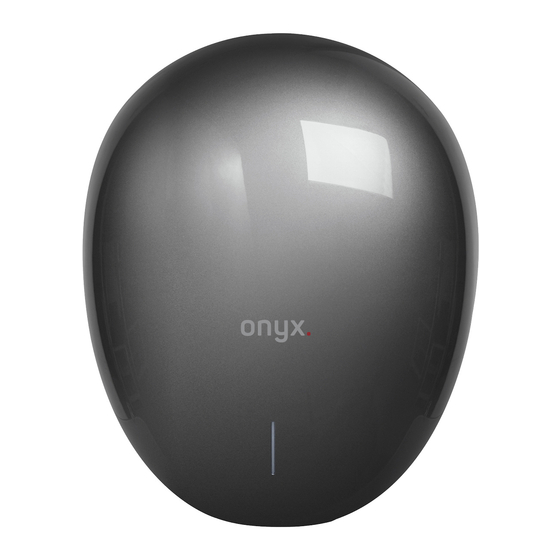

Summary of Contents for Onyx Pebble GWHD70
- Page 1 User Manual...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Item Category Performance Date Operating Voltage AC 220~240 V, 50/60 Hz, 700 W Standby Power ≤0.5 W Warm Air Speed Output 96 m/s Motor Type Brushless DC Motor, 30,000 RPM Sensor Type Auto Infrared touch free operation Sensor Range 45°... -
Page 3: Installation
UNPACKING 1. Remove all packing material. Recycling is recommended. 2. Carefully remove the hand dryer from the shipping carton, using care not to drop the appliance. 3. Inspect carefully for any damage that may have occurred during transit. Check for any loose, missing or damaged parts. - Page 4 CAUTION • Make sure power supply breaker is switched off. • Check that the electrical supply corresponds to that shown on the rating plate. If the unit is connected to any electrical supply other than stated on the rating plate of the unit, permanent damage or unsafe operation of the unit may result.
- Page 5 3. Installing Power cable & Connection terminal block WARNING: ENSURE POWER NOT CONNECTED 3.1 Pull the cable throuth the hole in the wall mounting bracket. Ensure the cable is long enought to route correctly through the wall mounting bracket to the terminal block (fig. 6). 3.2 The cable must sit in the dedicated channel.
- Page 6 Heater Swith ON/OFF & Filter replacing 1. Heater Switch ON/OFF (factory default setting “ON”) 1.1 Remove the one security screw on the bottom surface from the Unit, using the service tool (fig.2). 1.2 Lift the Unit off the Wall mounting bracket (fig 8). Note: Check whether LED light on the front of the Unit is OFF before opening the front cover, if LED light is still ON, wait until the light goes off.
- Page 7 2. Filter replacing (If clean air filter option is applicable for your unit) If the LED light on the front of the Unit flashes red then the filter needs to be changed. The Filter last about 60,000 uses. 2.1 Remove the one security screw from the middle of the bottom face of the dryer (fig.2). 2.2 Lift the main unit off the Wall mounting bracket (fig 8).
- Page 8 ATTACHING UNIT Reposition the front cover on the Unit. Insert and tighten two security screws into the bottom of the front cover (fig 8A). Reposition the Unit on the Wall mounting bracket and insert and tighten one security screw into the bottom of front cover (fig 7~7A).
-
Page 9: Maintenance And Cleaning
Maintenance and cleaning Make sure to lift the Unit and wait until the LED light turns off before maintenance or repair. Regular maintenace Regularly clean the outer casing use a soft, damp cloth to gently wipe away any dirt. CAUTION: Never use abrasives or chemicals to clean the cover. Do not soak. Periodical deep clean 1.
