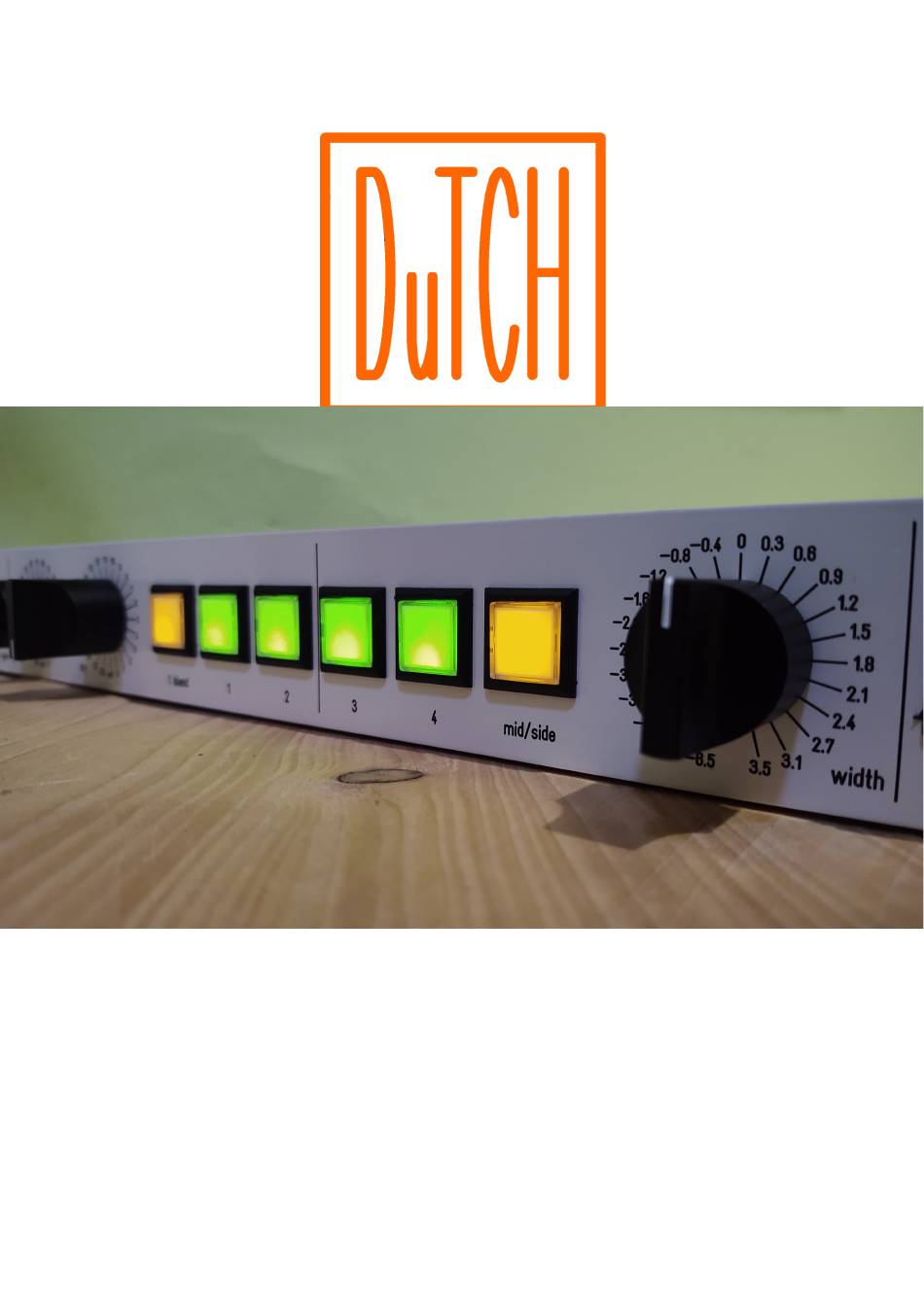

- Page 1 DuTCH.audio IM1.5 Insert Machine manual...
- Page 2 DuTCH.audio IM1.5 manual (v1.1 29-06-2021) Thank you for purchasing the DuTCH audio Insert Machine IM1.5. In this manual we will explain how this device works and how to use it. Since this is not really a beginner’s device, we will skip the basics and focus on it’s functions. We will go from the inputs (left side), to the inserts (middle) and to the outputs (right side), basically how the device handles signals.
- Page 3 With insert 1 you can blend the dry and wet signal together. Most parallel processing uses one control for blending from wet to dry and uses a potmeter. The IM1.5 uses two separate controls for wet and dry with stepped switches instead of one potmeter. This way you don’t have channel imbalance, easy recall and way better control over what happens to the signal.
- Page 4 The IM1.5 has balanced inputs. Both inputs consist of gold-plated Neutrik XLR’s. Inserts: The IM1.5 has 4 balanced inserts connected on the back with industry standard Tascam DB25 analog connectors. Each connector holds 2 inserts corresponding with the frontpanel numbering.
- Page 5 Warranty repairs are only made by us or by a workshop we agree upon. We are not responsible for any malfunction of or damage caused by parts that are not produced by DuTCH.audio.
- Page 6 If we find that the product is flawless the customer will be charged 200 euro to cover our costs for examination and handling. The return costs will also be charged. © DuTCH.audio 2021 Handmade in Holland on Solarpower contact@dutch.audio https://dutch.audio...
