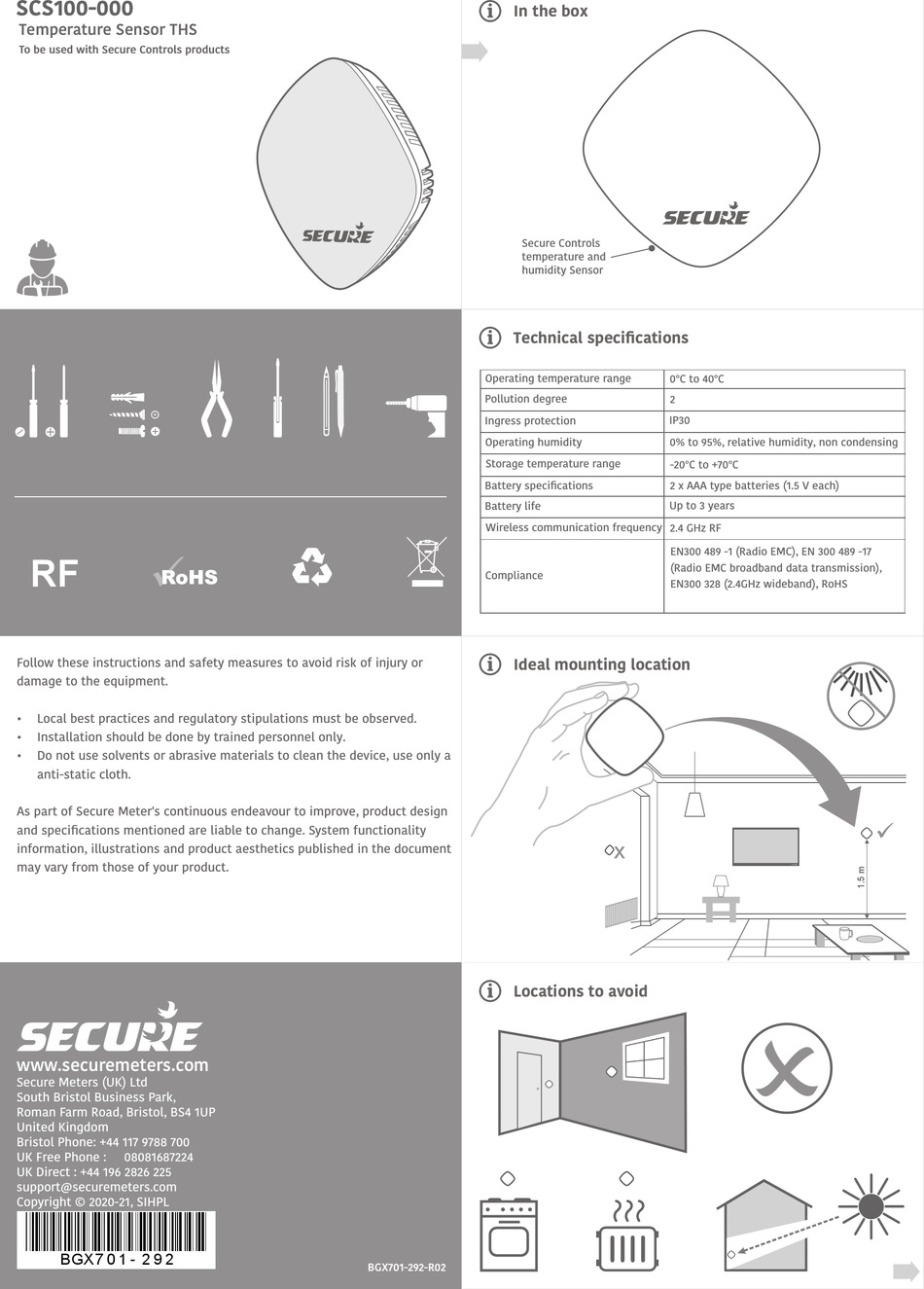

Secure SCS100-000 Quick Start Manual

SCS100-000
Temperature Sensor THS
To be used with Secure Controls products
RF
Follow these instructions and safety measures to avoid risk of injury or
damage to the equipment.
Local best practices and regulatory stipulations must be observed.
Ÿ
Installation should be done by trained personnel only.
Ÿ
Do not use solvents or abrasive materials to clean the device, use only a
Ÿ
anti-static cloth.
As part of Secure Meter's continuous endeavour to improve, product design
and specifications mentioned are liable to change. System functionality
information, illustrations and product aesthetics published in the document
may vary from those of your product.
www.securemeters.com
Secure Meters (UK) Ltd
South Bristol Business Park,
Roman Farm Road, Bristol, BS4 1UP
United Kingdom
Bristol Phone: +44 117 9788 700
UK Free Phone : 08081687224
UK Direct : +44 196 2826 225
support@securemeters.com
Copyright © 2020-21, SIHPL
BGX7 0 1 - 2 9 2

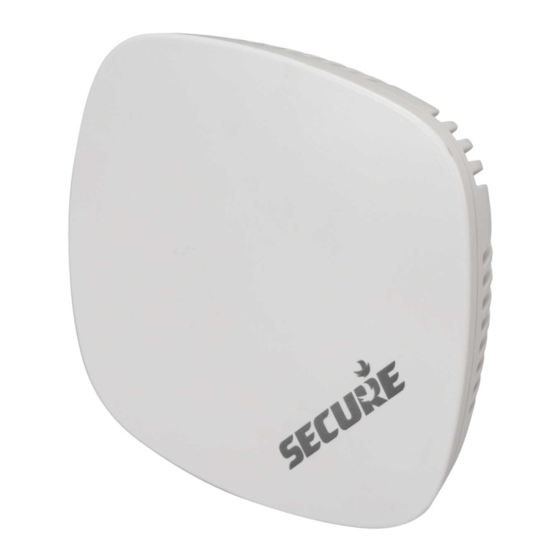

In the box

Secure Controls
temperature and
humidity Sensor
Technical specifications
Operating temperature range
Pollution degree
Ingress protection
Operating humidity
Storage temperature range
Battery specifications
Battery life
Wireless communication frequency
Compliance

Ideal mounting location

Locations to avoid

BGX701-292-R02
0°C to 40°C
2
IP30
0% to 95%, relative humidity, non condensing
-20°C to +70°C
2 x AAA type batteries (1.5 V each)
Up to 3 years
2.4 GHz RF
EN300 489 -1 (Radio EMC), EN 300 489 -17
(Radio EMC broadband data transmission),
EN300 328 (2.4GHz wideband), RoHS
21 .0
