Document Courtesy of Fly Parts Guy Co.
www.FlyPartsGuy.com

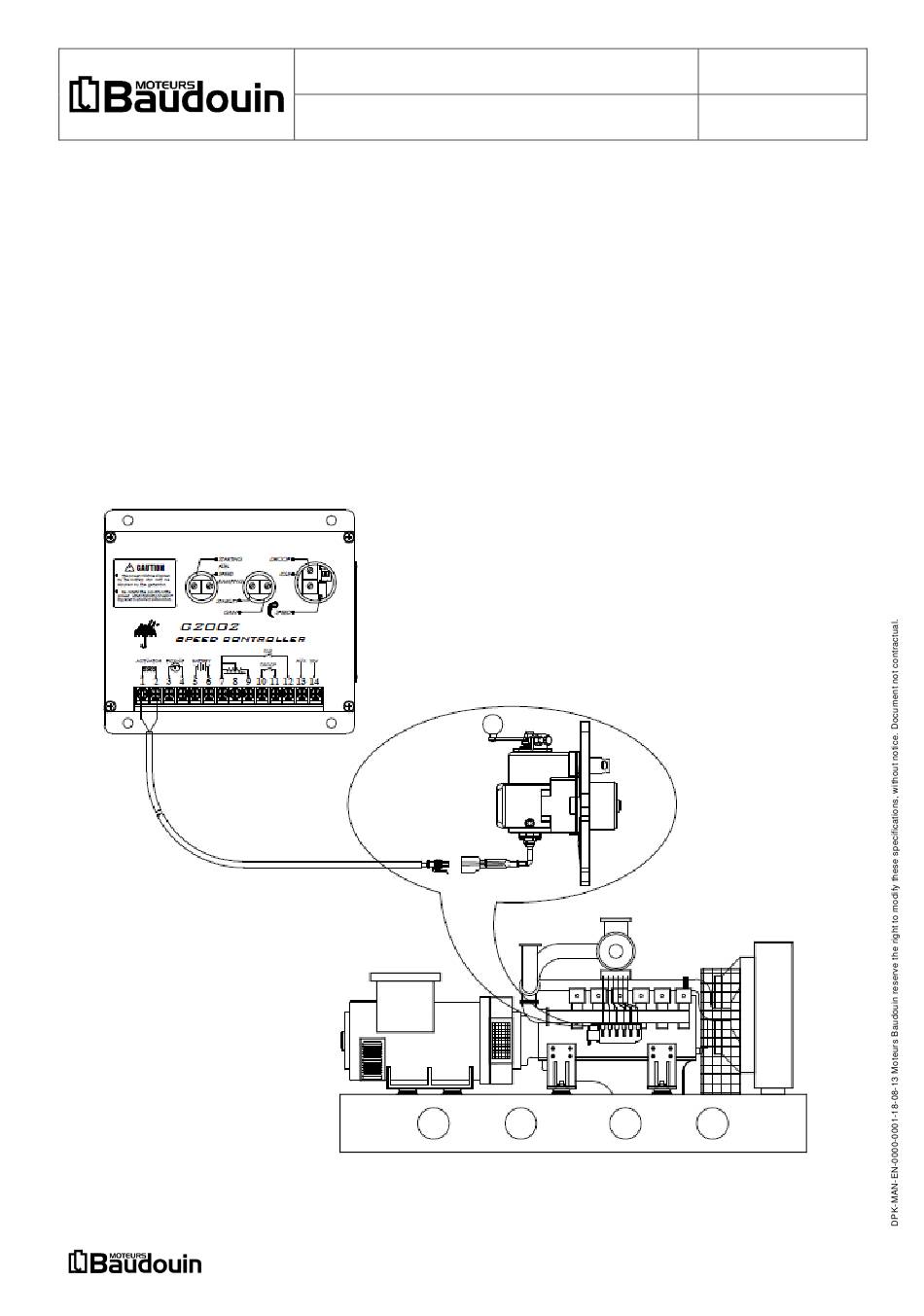

C2002 ELECTRONIC GOVERNOR
Use & maintenance manual
Technoparc du Brégadan - 13260 Cassis / France – Tel. +33 488 688 500
C2002 ELECTRONIC GOVERNOR
PowerKit Engine
Date :
13-08-18
Page :
1 / 15
Baudouin.com

Advertisement

Table of Contents
loading

Summary of Contents for Baudouin C2002 ELECTRONIC GOVERNOR

  • Page 1 Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 1 / 15 PowerKit Engine C2002 ELECTRONIC GOVERNOR Use & maintenance manual Baudouin.com Technoparc du Brégadan - 13260 Cassis / France – Tel. +33 488 688 500...

  • Page 2: Table Of Contents

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 2 / 15 PowerKit Engine INDEX Preface ........................3 Warning ........................3 Working principle of the electronic governor system ................ 3 The structure of the electronic governor system ................4 Speed governor C2002 ......................

  • Page 3: Preface

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 3 / 15 PowerKit Engine Preface This manual mainly introduced the working principle, composition, adjustment, operation, maintenance and some simple fault elimination methods of the electronic speed control system.

  • Page 4: The Structure Of The Electronic Governor System

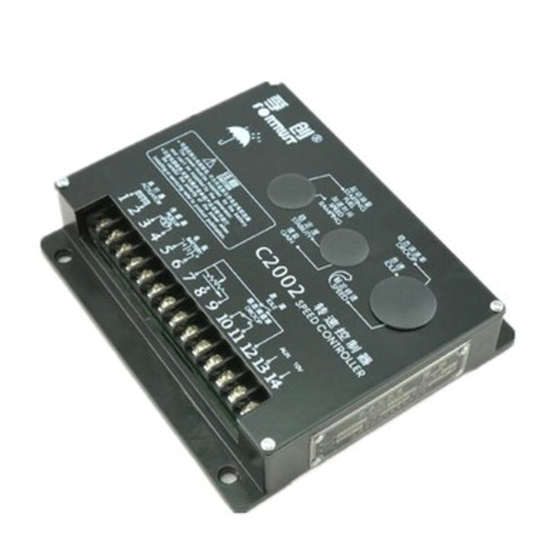

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 4 / 15 PowerKit Engine The structure of the electronic governor system Speed governor C2002 4.1.1 The basic electronic characteristics 12 Vdc (Scope 9 ～ 16 Vdc) or 24 Vdc (Scope 18 ～ 32 Vdc) Supply Voltage ≤...
  • Page 5 Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 5 / 15 PowerKit Engine 4.1.3 Connection diagram of the C2002 speed governor Wire harness Terminal Less than 6 meters More than 6 meters Terminal 1 and 2 shall connect with the winding 2.5 mm²...

  • Page 6: Actuator

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 6 / 15 PowerKit Engine  The battery positive (+) input, terminal 6, should be fused for 15 ampere.  Magnetic speed sensor connects to Terminal 3 and 4 MUST BE TWISTED AND/OR SHIELDED for their entire length.

  • Page 7: Installing And Debugging

    Do not rely exclusively on the governor system of electric actuator to prevent overspeed. A secondary shut off device, such as a fuel solenoid, should be used. Connection diagram of the C2002 electronic governor system Item Component name...

  • Page 8: Adjustments Before Starting The Engine

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 8 / 15 PowerKit Engine Adjustments before starting the engine Check to insure the GAIN and STABILITY adjustments, normally this value is set mid position by factory.

  • Page 9: Speed Droop Operation

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 9 / 15 PowerKit Engine Speed droop operation Droop is typically used for the paralleling of engine driven generators. Place the optional external selector switch in the DROOP position, that is connected Terminals 10 and 11.

  • Page 10: System Troubleshooting

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 10 / 15 PowerKit Engine System troubleshooting Fault judgment of the electronic governor The fault of the electronic governor will cause the engine performance degradation which may lead the engine shut down.
  • Page 11 Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 11 / 15 PowerKit Engine 6.1.2 Engine speed instability Baudouin.com Technoparc du Brégadan - 13260 Cassis / France – Tel. +33 488 688 500...
  • Page 12 Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 12 / 15 PowerKit Engine 6.1.3 Engine shuts down automatically during the running period 6.1.4 Engine speed fell sharply after loading Baudouin.com Technoparc du Brégadan - 13260 Cassis / France – Tel. +33 488 688 500...
  • Page 13 Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 13 / 15 PowerKit Engine 6.1.5 Engine overspeed Remark : If the trouble not be solved after You deal with the mentioned ways while there is no trouble with the engine system, maybe it is the internal fault of the governor, please send to the repair.

  • Page 14: Insufficient Magnetic Signal Of The Speed Sensor

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 14 / 15 PowerKit Engine Insufficient magnetic signal of the speed sensor When the speed sensor signal is stronger, it can resist the external pulses, the speed sensor can measure the outputted signal which is more than 3 Volts.

  • Page 15: Maintenance And Precautions

    Document Courtesy of Fly Parts Guy Co. www.FlyPartsGuy.com C2002 ELECTRONIC GOVERNOR Date : 13-08-18 Page : 15 / 15 PowerKit Engine Maintenance and precautions Maintenance of the electronic speed governor 7.1.1 Routine maintenance  Check cables whether there is any trouble and handle timely. Cables arranged along the route shall be tied tightly to avoid cable shaking which may lead to the body friction.
