Summary of Contents for EverDesk+ Lite Frame

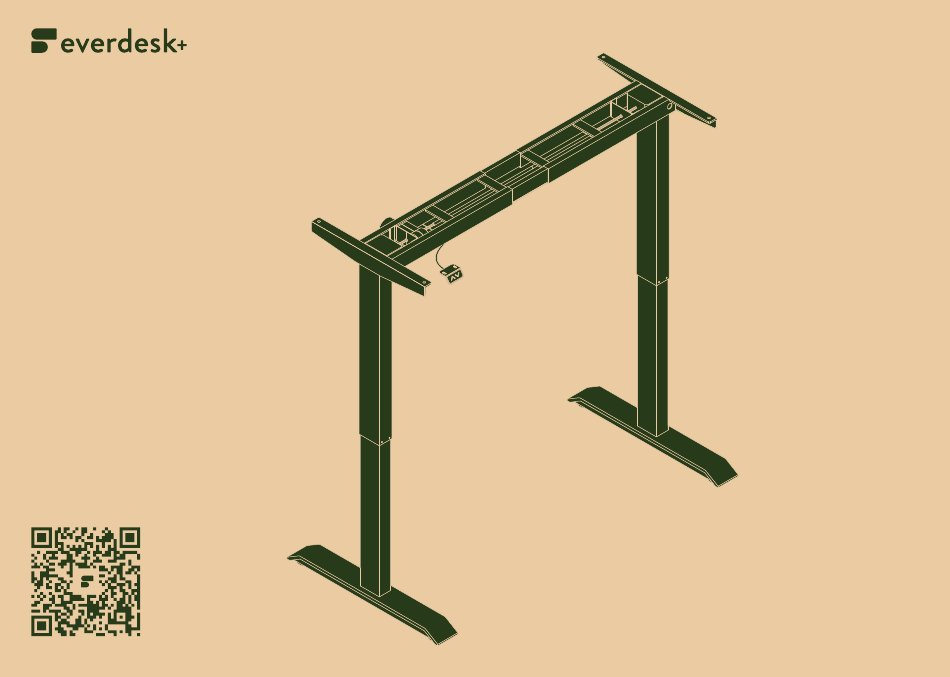

- Page 1 Lite Frame assembly manual Lite Frame Assembly Information...
- Page 2 Tools and Parts List Tools Parts Parts Parts Foot Aluminum Transfer Bar M6x10mm Pan Head Screw Left Lifting Column Long Hexagon Rod M6x20mm Countersunk Screw 4 Right Lifting Column Side Bracket ST5x20mm Wood Screw Left Rail Control Box ST5x16mm Wood Screw Center Rails Controller M6x12mm Pan Head Screw...
- Page 3 assembly S T E P O N E : S T E P T H R E E : Right Lifting Column and Rails Attaching The Foot • Place Right Lifting Column (3) to Right Rail (6) • Place one Foot (1) on top of Right Lifting Column (3) •...
- Page 4 assembly S T E P F I V E ( a ) : S T E P F I V E ( c ) : Preparing to Install Transfer Rod Connecting Transfer Bar to Short Hexagon Rod • Turn over assembled frame •...
- Page 5 assembly S T E P S I X : S T E P S E V E N ( b ) : Installing Side Brackets Attaching Frame To Table Top For Non Pre-Drilled Table Tops If your table is not pre-drilled: •...
- Page 6 assembly S T E P N I N E : S T E P E L E V E N : Connecting Cables to Control Box Flipping Everdesk+ Over notch • Connect Control Box (11) cable to Frame cable • Connect Power cable to Control Box •...
-
Page 7: Technical Information
Do not open or dismantle any of the components - Lite Frame Assembly Information the Legs, Control Box, or Switch. There is a danger of electric shock. This product is designed with a duty cycle of 10%.
