Smart Wireless Camera

Model No. T1

User Manual

Table of Contents

Need help?

Do you have a question about the T1 and is the answer not in the manual?

Questions and answers

Summary of Contents for rock space T1

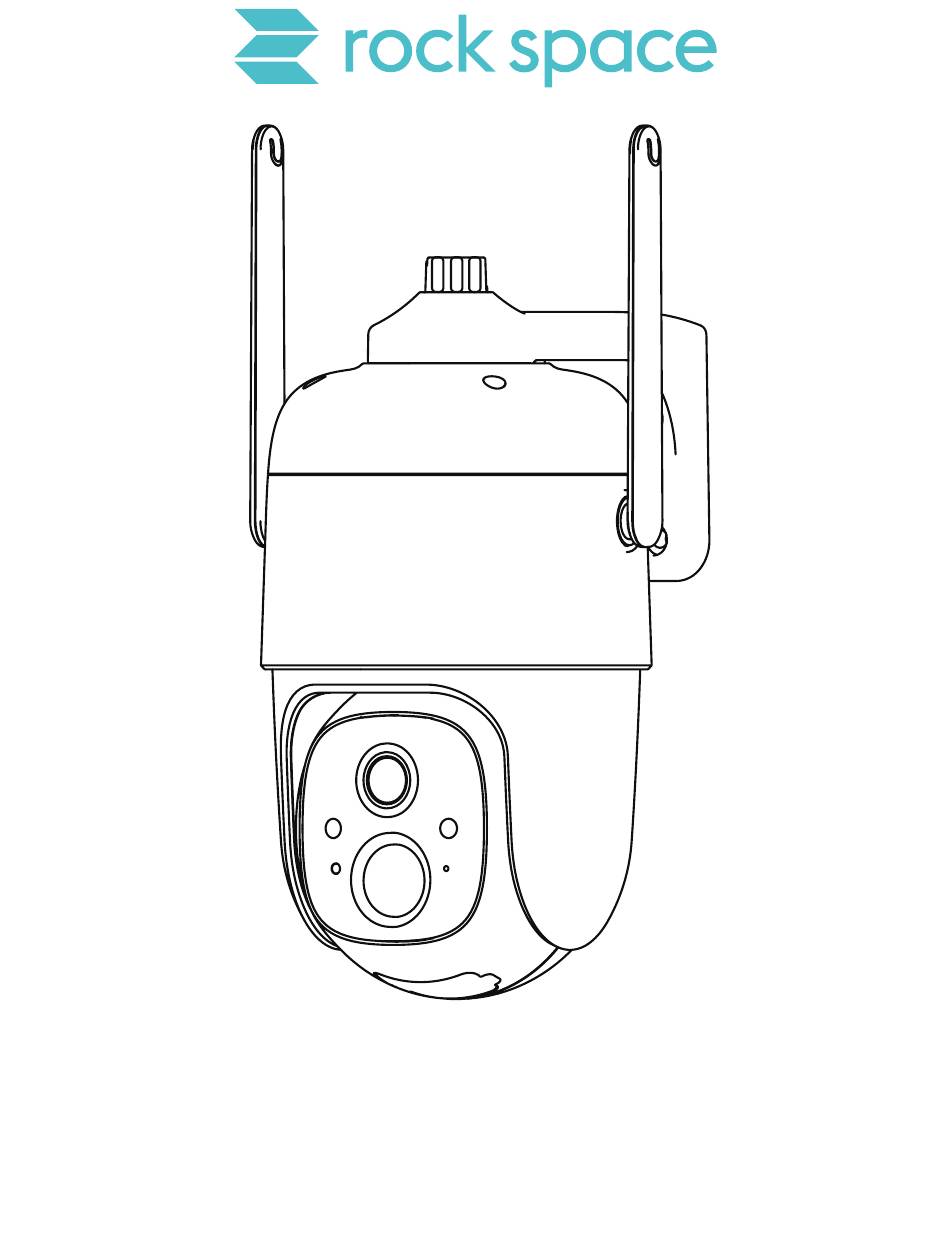

Page 1 Smart Wireless Camera Model No. T1 User Manual...
Page 2: Table Of Contents
Contents 1. In the box------------------------------------------ 01 2. Product overview------------------------------ 3. Product speciﬁcation------------------------- 4. Charge the camera----------------------------- 5. Set up the camera-------------------------------- 6. Install the camera-------------------------------- 7. Share the camera ------------------------------ 8. Firmware upgrade --------------------------- 9. FAQ--------------------------------------------- 10. FCC warning--------------------------------...
Page 3: In The Box
Thank you for choosing rock space! Please read over this User Manual before using your camera. If you have any questions or concerns, please visit https://rockspaceworld.com or contact us at service@rockhomelife.com to ﬁnd help and more information. In the box 1.
Page 4: Product Overview
Product overview Wi-Fi antenna Lens Infrared lamp White light Infrared human Indicator light body sensor Blue Working mode Oﬀ Sleep mode Yellow Charging mode Green Fully charged mode...
Page 5 Micro-USB port Speaker Micro-SD card slot Reboot hole Power button...
Page 6: Product Specification
Item Horizontal: 96° Vertical: 56° Field of view Diagonal: 128° Image resolution Max. 1920 X 1080 Video bitrate Adaptive Storage media Micro SD card (Up to 128GB) Rotation angle Horizontal: 355°, vertical: 90° Battery capacity 9000mAh Adapter requirement 5V/1.5A Size (without bracket) 120.2×101.1×158.3 (mm) Charge the camera Before you mount the camera on a wall or ceiling, make sure...
Page 7: Set Up The Camera
Set up the camera The camera supports battery-powered supply and AC-powered supply. 1. Download rockhome All the functions can be performed using the rockhome app. Get the app from the App Store or Google Play, or scan the QR code below to download directly. Get it on Google Play Download on the...
Page 8 4. Add the camera Click Add Camera Now in the rockhome app and follow app instructions to conﬁgure your camera and add it to your network. Note: To ensure a long distance connection, the camera only supports 2.4 GHz Wi-Fi with stronger wall penetration capability and does not support enterprise Wi-Fi.
Page 9 Troubleshooting: When you hear the "Wi-Fi Password Error", please check whether the Wi-Fi password you entered in the rockhome app is correct; When you hear the "Authentication error", please ensure that your Wi-Fi network is not an enterprise network, and the camera supports only the network with a security level below WPA-2;...
Page 10: Install The Camera
Install the camera You can simply place the camera on a horizontal surface like a shelf, or you can mount it on a wall or ceiling. (1) Select a good spot Select a good spot for your camera, place or install the camera in a position where its view is not blocked and ensure that it is within the coverage of your Wi-Fi network.
Page 11 ommended height about 6 ft For outdoor use, please install the camera upside down to maximize the waterproof performance and the infrared human body sensor's eﬀectivity. (2) Install the bracket Hold the bracket up where you want to mount your camera and screw it in.
Page 12 (3) Fix the camera Put your camera upside down, attach it to the bracket, and ﬁx the camera with the screw included.
Page 13: Share The Camera
Share the camera The one who set and conﬁgured the camera is the administrator. If you are the camera's administrator, you can share the camera with up to 50 members at no extra cost. Members can access live stream and playback, and talk to people near the camera. To share the camera: (1) Find the camera you want to share on rockhome homepage or camere setting page.
Page 14 2) Tap Camera sharing, a QR code will be generated for sharing. Camera sharing...
Page 15 (3) For family members or friends you want to share, go to the rockhome app, tap Add friend's camera on the homepage, then scan the QR code. abcc@gmail.com (4) The administrator will receive a request after the member scans the QR code, tap Accept. Now the member can view the camera's stream in their own apps.
Page 16: Firmware Upgrade
Firmware upgrade When you connect your camera through the rockhome app, it will prompt you if the latest ﬁrmware is available. You can also manually check the ﬁrmware upgrade in the settings of the app. Please make sure that your camera is fully charged or connected to the power adapter before upgrading the ﬁrmware.
Page 17 Wi-Fi authentication method to WPA2-PSK or other lower level of the security method. A password is required. Q5: Can rock space cameras work without Wi-Fi? A: Yes, they can! After setup, as long as an SD card is inserted into the camera, it can record videos even if there is no Internet connection.
Page 18: Fcc Warning
Q8: How rock space cameras store recorded videos? A: App storage: the rockhome app oﬀers a 7-day (≤1GB) free app storage service. As long as there is a network connection, video clips will be recorded and uploaded to the rockhome app automatically.
Page 19 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 20 V1.0...
