Summary of Contents for HPC Laser LS1390

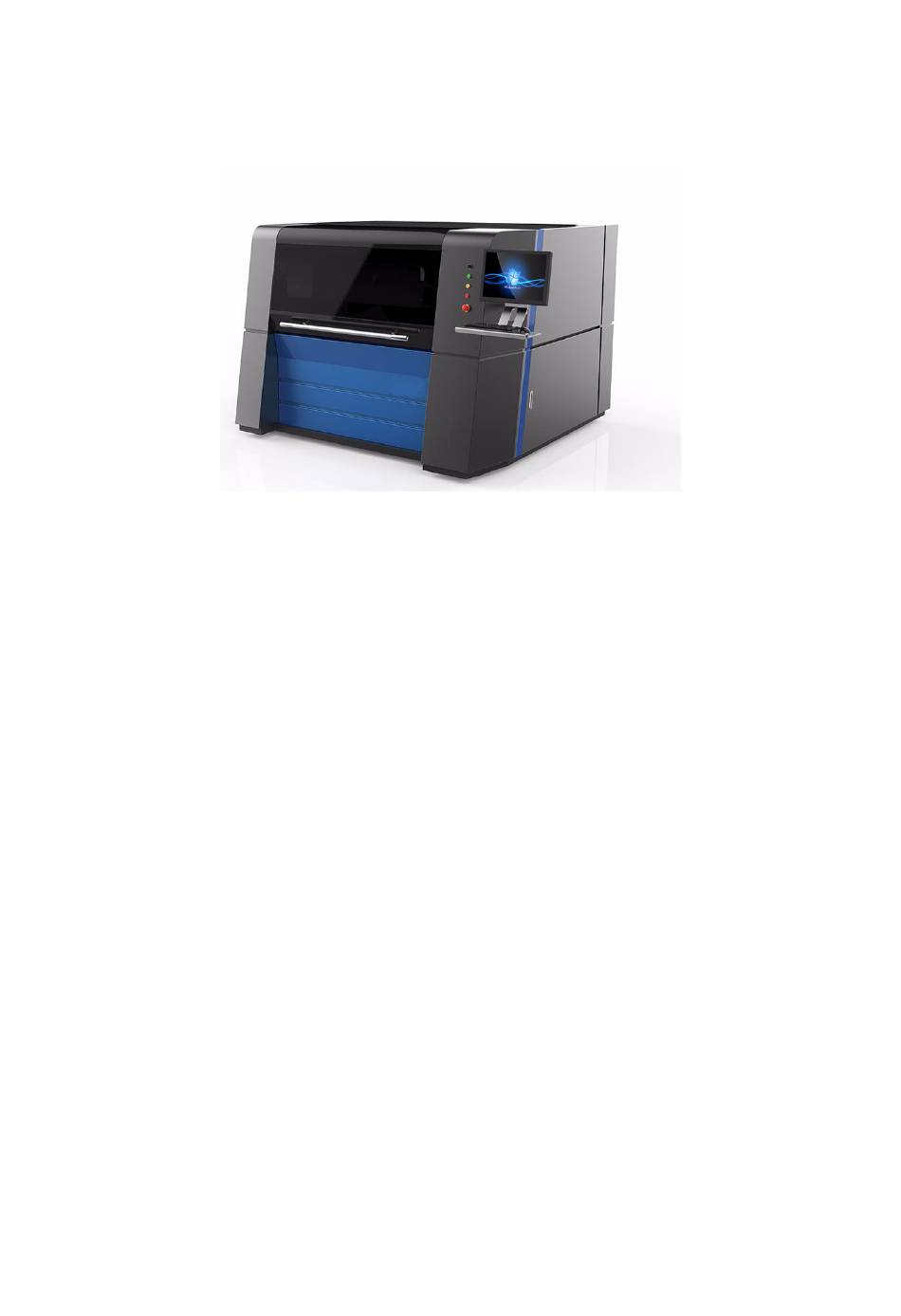

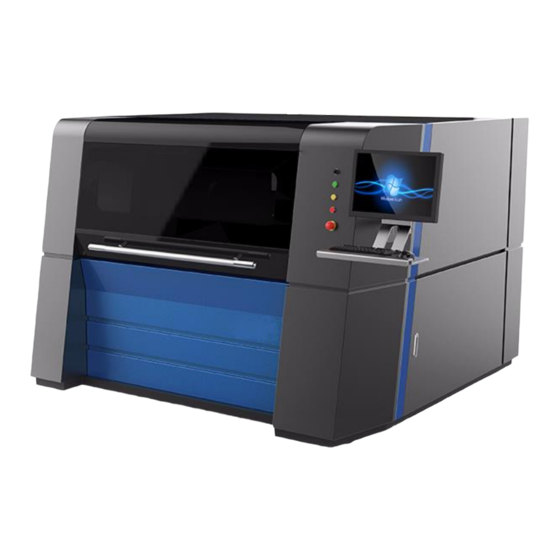

- Page 1 HPC LASER LTD LS1390 QUICK GUIDE HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
-
Page 2: Laser Safety
RECOMMENDED: It is certainly recommended that the user wears eye protection, especially when aligning the beam. HPC LASER can supply the suitable glasses. Alternatively 10.6 micron protective eye wear can be purchased elsewhere if you wish to do so, we would always recommend ours. This protection will not impair viewing and can easily be combined with safety glasses. -
Page 3: Electrical Safety
NEVER leave the machine unattended in any circumstances what so ever. There is a significant risk of fire if the machine is set improperly, or if the machine should experience a mechanical or electrical failure while operating. HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING... - Page 4 Unlock side doors using the keys provided to allow laser tube Removal and installation. Put keys into the on / off key switch. (Front right of machine). HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
- Page 5 Open the side of the machine which holds all the machines accessories. (Isolator door). HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
- Page 6 Switch on the machine at the isolator (found at the bottom right of the right side of the machine, SWITCH) Turn on the cutting gas – we recommend this being behind the machine. HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
- Page 7 Make sure you origin the machine so the head knows where it is on the bed. If not the laser head will bang into the sides and ends of the machine bed. HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
-
Page 8: Operation
3. By pressing frame on the computer this will show you the area of the cut. 4. You are now ready to press start for the machine to do the job. HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING... -
Page 9: Shutting Down The Machine
4. Turn off the laser machine by the key switch found at the front. 5. Shut down the computer. 6. Switch off the main laser power. 7. Switch off the chiller. 8. Finally switch of the isolator. HPC LASER LIMITED – NEVER LEAVE YOUR MACHINE UNATTENDED WHEN WORKING...
