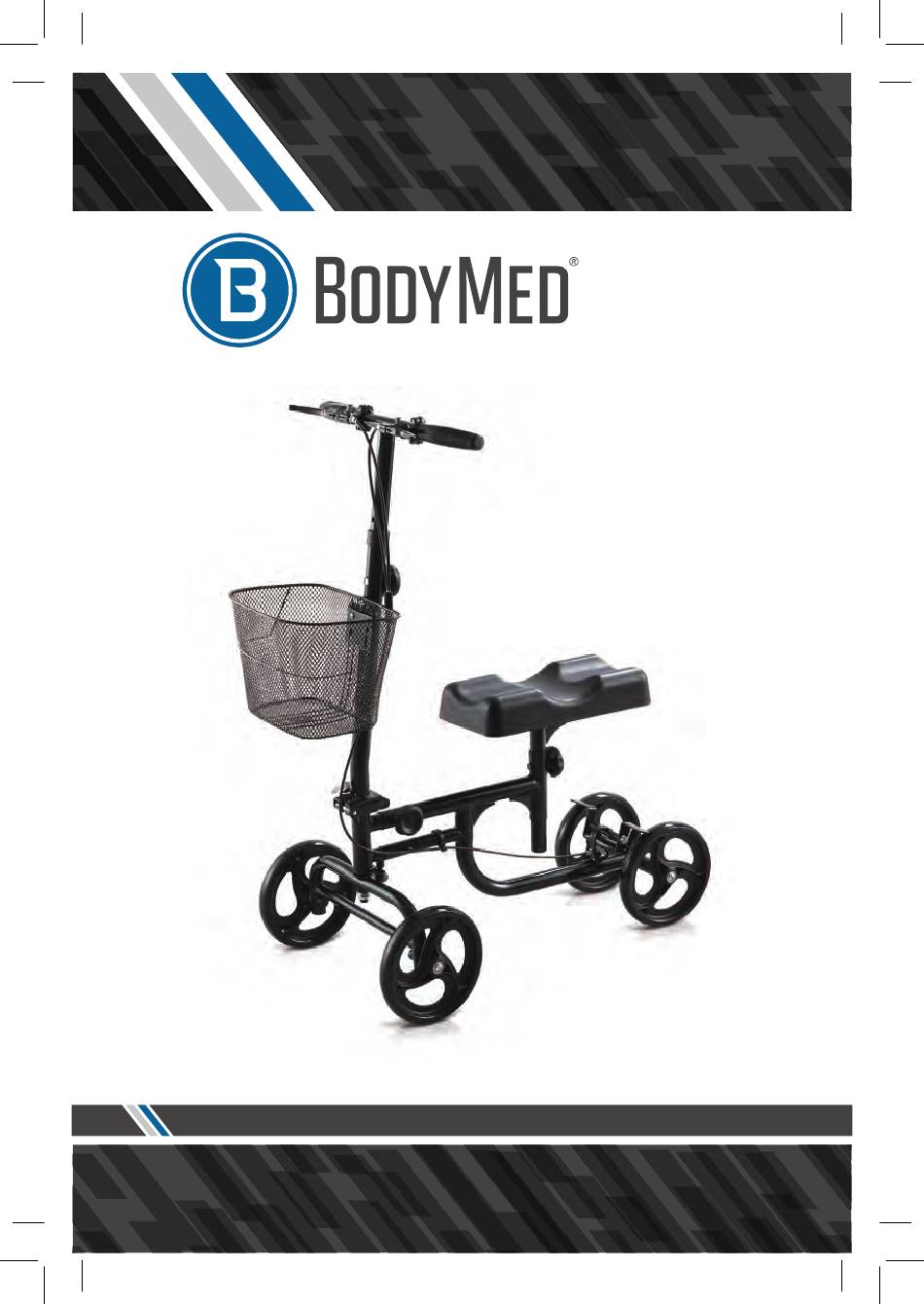

  • Page 1 ZZRWAL03E Knee Walker Instruction Manual...

  • Page 2: Product Introduction

    Please read the following instructions carefully before use. PRODUCT INTRODUCTION The BodyMed Knee Walker with Basket is a sturdy, ® durable, and comfortable 4-wheel mobility aid that offers patients suffering from a foot or ankle injury a smooth- rolling alternative to crutches during their recovery.

  • Page 3: Product Specifications

    Height Adjustable Handlebar 34” to 42” Anti Slip Grips Padded Contoured Knee Pad Height Adjustable Knee Pad 17” to 21” Double Attached Back Brakes Basket Sturdy 7.8” Dual Bar Frame Wheels Product Specifications • Handlebar Adjustable Height: 34”– 42” (87 cm–107 cm) •...

  • Page 4: Installation

    INSTALLATION To assemble the knee walker, the following components are required: 1. Front Frame with Front Wheels 2. Rear Frame with Back Wheels 3. Handlebar Attachment 4. Padded Contour Knee Pad Attachment 5. Attachable Basket with Mounting Hardware (Two Screws, Mounting Bar, and Allen Wrench) 6.

  • Page 5: Frame Assembly

    Frame Assembly 1. Insert the dual rods of the front frame into the dual rods of the rear frame. 2. Ensure the spring pin on the bottom rod of the front frame locks into the matching hole in the bottom rod of the rear frame.
  • Page 6 Knee Pad Assembly and Height Adjustment 1. Insert the knee pad into the knee pad column. 2. Select the height, then attach the second of the three knobs with a pin into the correct hole, locking the height in place. 3.
  • Page 7 Steering Column Assembly and Disassembly 1. From the folded position, straighten the steering column vertically. 2. Lock it in place by tightening the lever down at the base of the column. 3. To fold the steering column, release the lever, and push the column downward.
  • Page 8 Handlebar Assembly and Height Adjustment 1. Insert the handlebar into the steering column. 2. Adjust to the correct height, then attach the final knob with a pin into the correct hole, locking the height in place. 3. Tighten the knob to secure.
  • Page 9 Basket Attachment 1. To install the basket, align the holes in the front anchor plate located on the steering column with the holes in the anchor section of the basket. 2. Place the mounting bar over the holes, then screw in the two screws with the Allen wrench.

  • Page 10: Setting The Parking Brake

    Brakes Test Grip the hand brake levers on the handlebars tightly, and test to ensure the brakes are working on the back wheels. Setting The Parking Brake 1. To set the parking brake, locate the spring pins on each hand brake lever. 2.

  • Page 11: Safety Considerations

    SAFETY CONSIDERATIONS When adjusting the height of the handlebars, make sure the knob and pin lock tightly for a secure hold. Be sure to hold onto the handlebar grips using two hands. To slow down or stop the knee walker, squeeze the two hand brakes to engage the back-wheel brakes.

  • Page 12: Limited Product Warranty

    This warranty extends only to the original purchase. The purchase receipt or other proof of date of original purchase is required before full replacement will be provided. Please contact BodyMed at 1-866-528-2152 ® BODYMED MAKES NO OTHER WARRANTY, EXPRESS OR ®...
