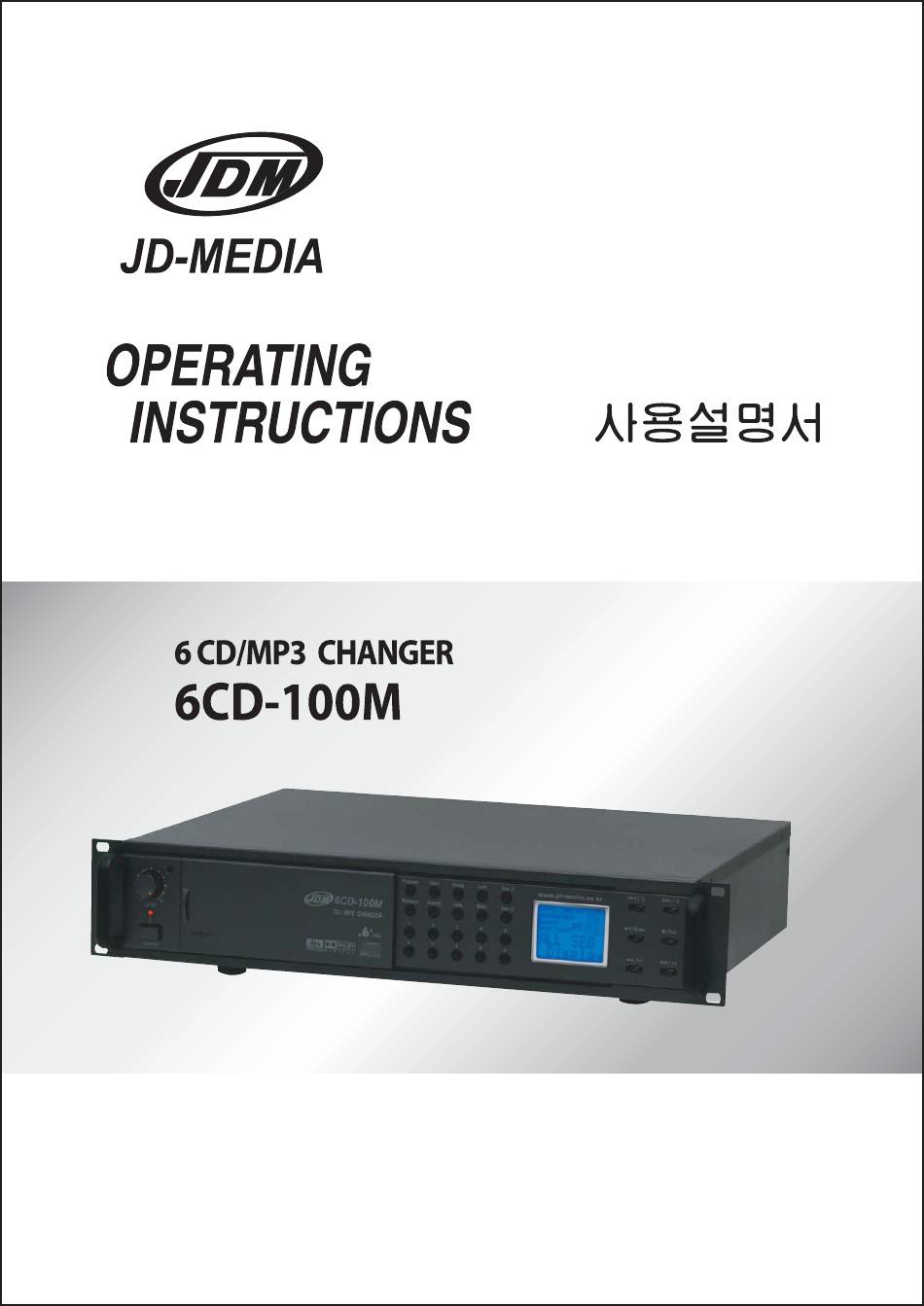

Summary of Contents for JDM 6CD-100M
-
Page 2: Table Of Contents
AUTION AVIS SAFETY INSTRUCTIONS IMPORTANT NOTICE NSTALLATIONS OW TO USE THE COMPACT DISC MAGAZINE EATURES RONT PANEL CONTROLS EAR PANEL CONTROLS RROR DISPLAY PECIFICATIONS LOCK DIAGRAM... -
Page 3: Caution Avis
SAFETY INSTRUCTIONS Read all safety instruction before operating the 6CD-100M. 1. Install equipment as follow conditions. Install at the place, not bending curved. Do not install this apparatus in a confined space such as a book case or similar unit. -
Page 4: Installations
NSTALLATION STORAGE DISC Be sure to keep discs away from CD changer during long-time not use. Be sure to keep in the case. Do not place or store disc in the following place. 1. Locations exposed to direct sunlight. 2. Locations directly exposed to a heat vent or heating appliance. 3. -
Page 5: How To Use The Compact Disc Magazine
OW TO USE THE COMPACT DISC MAGAZINE INSERTING DISC Inserting discs into the suppled magazine. Up to 6 discs may be inserted into the magazine. The discs are numbered from 1(bottom tray) to 6(top tray). Note : Do not touch the recorded side of a disc while inserting or removing it. -
Page 6: Features
EATURES FEATURES CAR STEREO AUTO 6CD CHANGER DECK MECHANISM USE PLAY/PAUSE FUNCTION STOP FUNCTION EJECT FUNCTION DISC SELECT (D-UP, D-DN) TRACK SELECT FUNCTION (T-UP, T-DN) REPEAT(DISC) FUNCTION(RPT) RANDOM(DISC) FUNCTION(RDM) SCAN(DISC) FUNCTION(SCAN) PICK-UP(SONY) PERMISSIBLE REMOTE-CONTROL L,R STEREO OUTPUT AND MONO OUTPUT AC, DC24V USE REMOTE-CONTROLLER RECEIVER SENSOR LED DISPLAY... - Page 7 RONT PANEL CONTROLS 6. IR SIGNAL INPUT WINDOW This is to receive infrared signal form card-type remote controller. (Avoid any foreign substances or contamination) 7. POWER BUTTON(POWER ON/OFF) Press this button to turn on/off the system power(Toggle). First, the changer will now start CD detection to check the disc tray 1.
-
Page 8: Rear Panel Controls
EAR PANEL CONTROLS CAUTION OUTPUTS RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: AC 230V/ 50Hz 13W DC POWER TO REDUCE THE RISK OF FIRE Balanced MONO 24V MAX 1.5A OR ELECTRIC SHOCK DON'T EXPOSE THIS STEREO EQUIPMENT TO RAIN OR MOISTURE. REMOTE CONTROL MODEL NO.: 6CD-100 1 2 3 4 5 6 7 8... - Page 9 RROR MESSAGE ERROR MESSAGE 1. NO MAGAZINE There is no magazine. 2. Err EJECT The magazine is not through out while eject function is executing. 3. Err LOAD The disc tray is not loaded to the chuck within fixed time (8 sec). 4.
-
Page 10: Specifications
PECIFICATIONS TECHNICAL Output Level MONO 0dB(0.775V) / BAL L, R 0dB(0.775V) / UNBAL(OPTION) Digital Filter 8-TIMES OVER SAMPLING T.H.D(1KHz) LESS THAN 0.03% (JIS A) Signal to Noise Ratio(1KHz) MORE THAN 85dB (JIS A) Dynamic Range(1KHz) MORE THAN 70dB Channel Separation(1KHz) MORE THAN 70dB (JIS A) Frequency Response 20Hz~20KHz(... -
Page 11: Lock Diagram
LOCK DIAGRAM DATA IN DATA OUT SELECTOR... - Page 12 435-831 www.jd-media.co.kr 231-19, Dang Jung Dong, Kun-Po City Tel : +82-31-453-9514 JD-MEDIA CO.,LTD. Kyung-Gi do, Republic of, KOREA Fax : +82-31-453-9502 C/N : 4M-6CD100-02...
