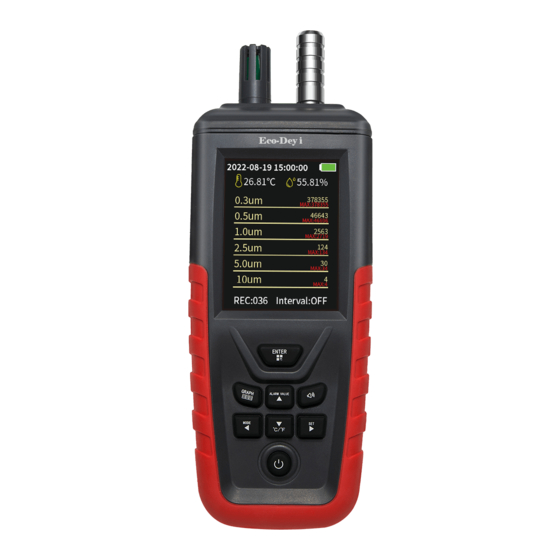

Deyi TC-8200 Manual

Dust particle counter
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Dust Particle Counter Manual
Parameter setting:
1.
backlight setting
2.
clear records
3.
time modification
4.
shutdown settings
5.
recording interval
Overview:
This product adopts the principle of laser scattering, can detect the number and quality of
0.3um, 0.5um, 1.0um, 2.5um, 5.0um, 10um particle size dust, the detection of clean room and
below clean room levels, temperature, humidity and AQI Grade detector.
It has 999 groups of data records, can view the data curve, with 3.2-inch TFT full-color display,
automatic measurement, real-time date and time, rechargeable lithium battery or separate
external USB power supply, stable data, etc.
Applied to:
Class 100 clean room and below clean room inspection
Industrial production of electronics, optics, chemicals, food, medicine and health, biological
products, aerospace, etc.
Filter seal inspection
Particle pollution source detection
Overview
Safety and maintenance
Appearance structure description
Button function description
Operation description
Power on or off
Counting and weighing mode conversion
Temperature unit conversion
Record data interval time setting
History query
6.
language selection
7.
factory settings
8.
Technical specifications
9.
Common problem analysis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-8200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deyi TC-8200

Summary of Contents for Deyi TC-8200

  • Page 1 Dust Particle Counter Manual Overview Safety and maintenance Appearance structure description Button function description Operation description Power on or off Counting and weighing mode conversion Temperature unit conversion Record data interval time setting History query Parameter setting: backlight setting language selection clear records factory settings time modification...

  • Page 2: Safety And Maintenance

    Safety and maintenance Do not use the instrument in a dusty or corrosive gas environment, so as not to reduce the life of the instrument or damage it When the battery icon on the display is empty or red, please charge it in time, and remove the battery if it is not used for a long time.

  • Page 3: Button Function

    Button function 1. Power on/off button: short press to power on or off 2. OK button: 1) Historical trend interface press this button to exit to the main interface 2) The history record interface can enter the page number view 3) The function parameter interface can enter the parameter modification 4) The alarm value setting can be exited to the main interface 3.
  • Page 4 4.Setting button: 1) Short press the history record → function parameter → main interface 2) Shift page position of history record interface 3) Parameters can be modified in the function parameter interface 4) Displacement value of alarm value setting interface 5.Alarm value setting button: 1) Short press to enter the alarm value setting, press this button again to increase the alarm value 2) The number of pages that can be turned up in the historical trend interface...

  • Page 5: Operation Description

    Operation description: 1. Power on or off： Short press button to turn on or off 2. Counting and weighing mode conversion： Short press button to switch between ug/m3 or Piece/L mode Temperature unit conversion Short press Button switch ℃/℉ 3. Record data interval time setting Press during automatic measurement, press the button twice to enter the function parameter interface.

  • Page 6: Parameter Setting

    4. History query Press Button once, Press enter Go to <History>, Button shift pages， Button to scroll through the record page， 5. Parameter setting Press the button twice and press Enter to <function parameter>, Press the button can move to select the corresponding parameter item, and the background color of the selected item will turn white，...
  • Page 7 Time Rev: Button to enter the time setting menu, press again The button can be shifted, The button can modify the time, press enter Button to confirm the modification, press again Button to exit modification，once again Button and return to the main interface. Auto shutdown: Button to select OFF (no automatic shutdown) / 15 minutes / 30 minutes / 45 minutes / 1 hour / 2 hours / 4 hours / 8 hours.

  • Page 8: Technical Specifications

    6. Technical specifications Particle detection range 0.3~10μm Six-channel particle size 0.3，0.5，1.0，2.5，5.0，10um PM2.5 Range 0～1000μg/m³ PM2.5 Precision 0~100μg/m³：±10μg/m³ 100~1000μg/m³：±10% Concentration resolution 1μg/m³ Number of particles output range ≤ 2000000 Granule/L Flow 1 liter/min（2.83L=1L*2.83） Cleanliness standard meets the ISO 14644-1 ISO5 level-ISO9 level Response time 1 second Boot stabilization time...
