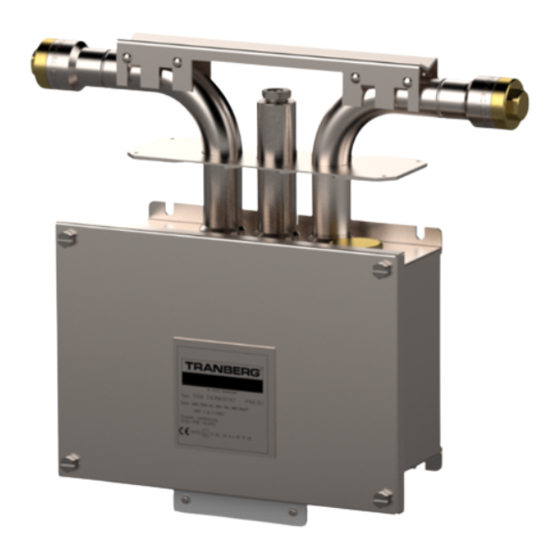

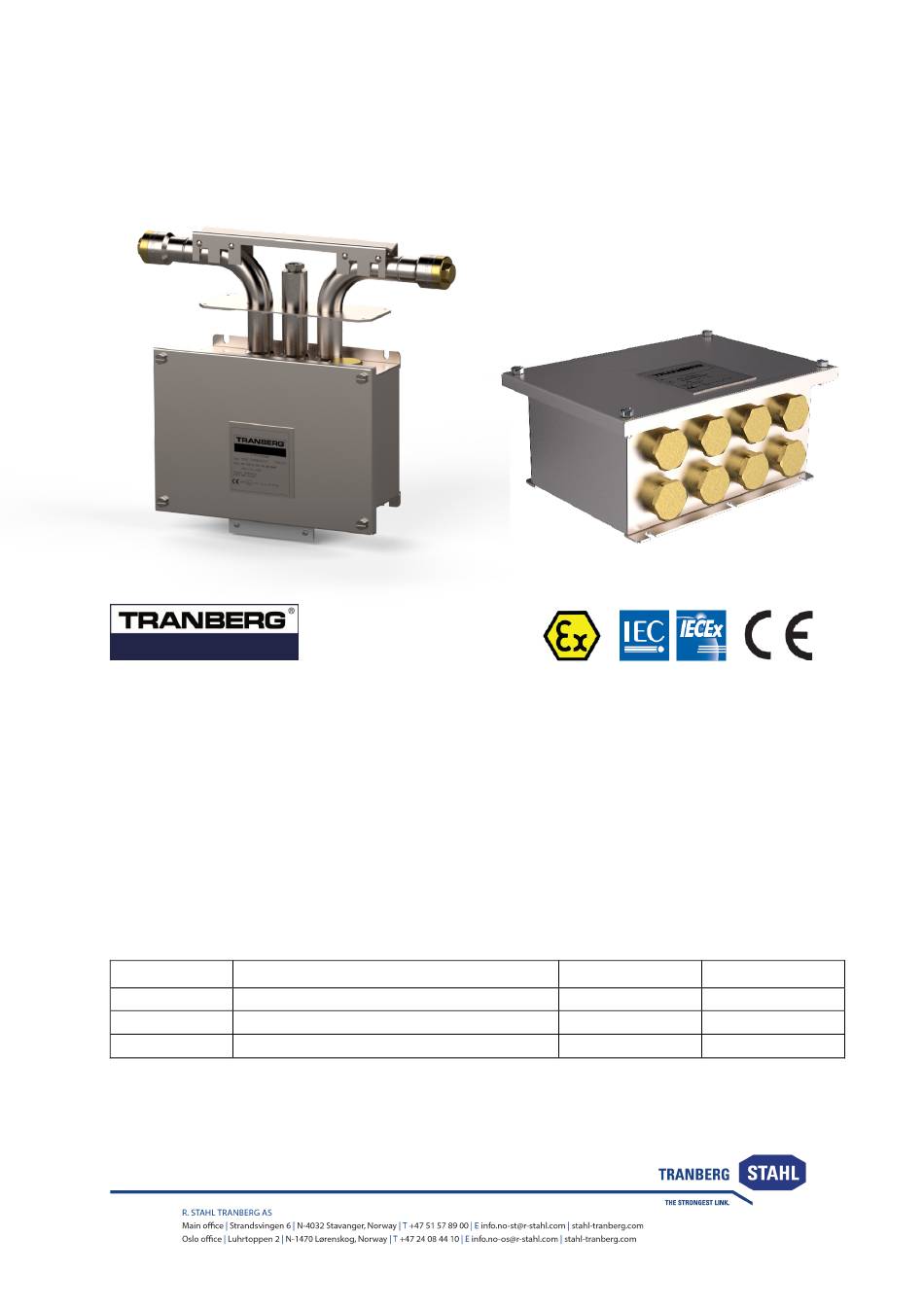

Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Installation Manual TEF 1058 Heat Trace Pipe & Wall Mounted Thermostat Zone 1, Zone 2 & Safe Area Document properties (TUM5134) Revision Comment Revision date Approved New design 07.03.2022... -
Page 2: Table Of Contents
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Installation and operating manual Contents Document properties (TUM5134) ..........................1 Warnings and risk levels ............................3 General information ..............................3 Marking and intended use ............................4 Special conditions for safe use ..........................5 Technical data ................................. -
Page 3: Warnings And Risk Levels
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Warnings and risk levels DANGER Non-compliance with the instruction results in risk of severe or fatal injuries to persons WARNING Non-compliance with the instruction may result in risk of severe or fatal injuries to persons... -
Page 4: Marking And Intended Use
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Marking and intended use DANGER Not for use in Zone 0 CAUTION The empty enclosures of these enclosure series are suitable for the installation of explosion protected components. The empty enclosures feature a component certificate. Therefore, the equipment may only be used for its intended use. -
Page 5: Special Conditions For Safe Use
Housing material Acid proof stainless steel Product description TEF 1058 thermostat is according to NORSOK requirements and is used for a various range of applications such as hazardous areas, chemical and petrochemical industries, industrial plants (for frost protection or temperature maintenance). -
Page 6: Mounting And Installation
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Mounting and installation DANGER Incorrect mounting and installation may lead to explosion risks, risk of falling objects, risk for electric shock and risk for equipment malfunction. In turn, this can lead to severe damage and/or injuries. -
Page 7: Mounting Of Pipe Mounted Type (Fig. 03)
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Mounting of pipe mounted type (fig. 03) Mount the thermostat junction box either standing or hanging to pipe with pipe straps. • Remove dust protection or stopping plugs and install selected gland. Install the drain plug at the lowest •... -
Page 8: Electrical Connections
• necessary lubricate the lid bolt threads with grease type Renolit Unitemp 2 from Fuchs. If repair or overhaul is necessary this may only be done with Tranberg spare parts. • Modification of the JB or change of design are not permitted, except for installing additional glands and •... -
Page 9: Disposal
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Disposal CAUTION This equipment or part of this equipment is considered EE-Waste, and shall be handled accordingly Observe national and local regulations and statutory regulations regarding disposal • Separate materials when sending it for recycling •... -
Page 10: Compliance/Conformity
Installation and operating manual - TUM5134 TEF 1058 Heat Trace Thermostat Compliance/Conformity Presafe 14ATEX4124 • IECEx PRE 14.0001 • Applicable standards 2014/34/EU ATEX Directive: EN 60079-0:2012 [ 2018], EN 60079-1:2007 [2014], • EN 60079-7:2007 [2015/A1:2018], EN 60079-18:2009 [2015/A1:2017] Document no DoC: TDC3131...
