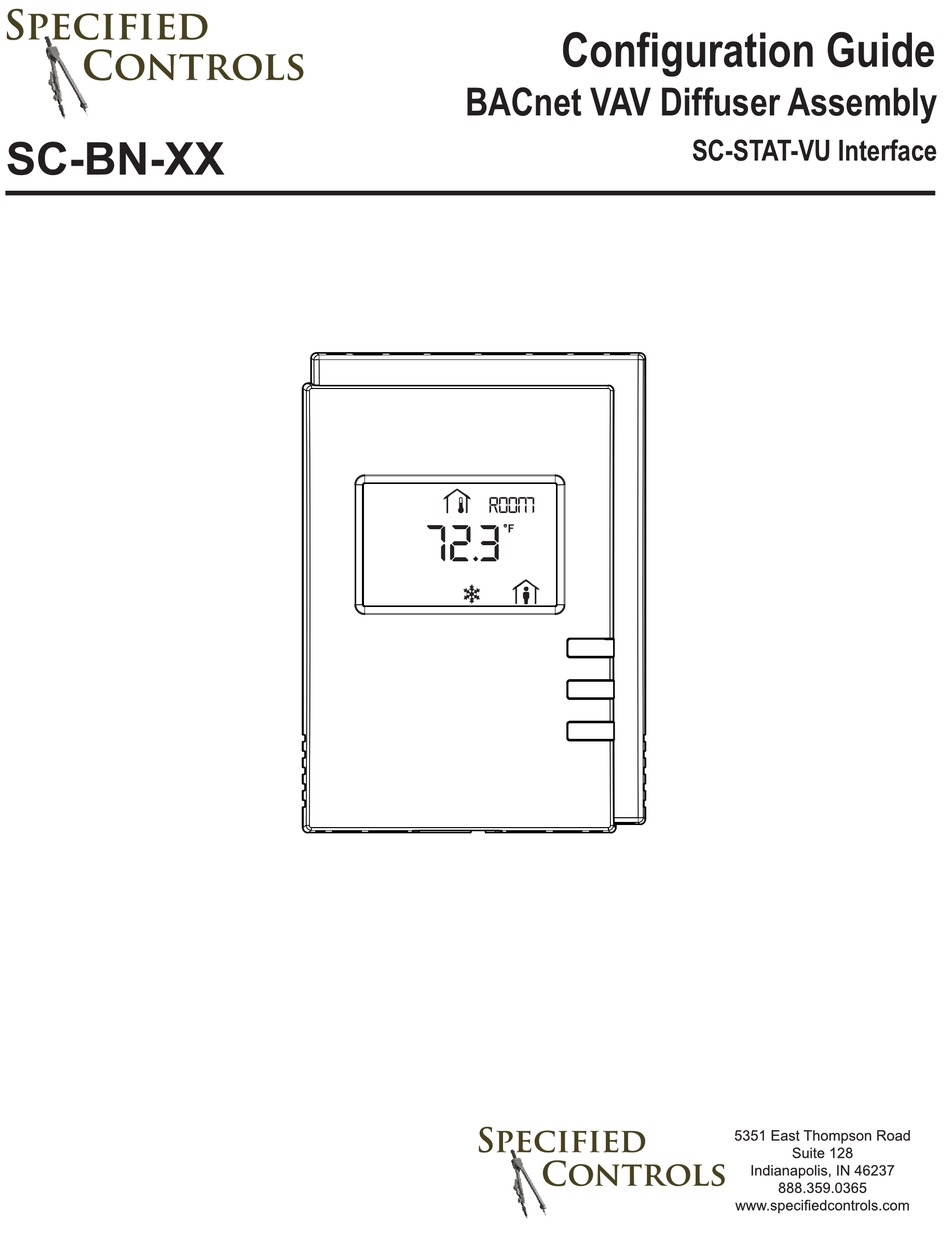

- Page 1 Configuration Guide BACnet VAV Diffuser Assembly SC-STAT-VU Interface SC-BN-XX ROOM 72.3...
- Page 2 SC-BN-XX NETWORK CONFIGURATION GEN CFG From the SC STAT VU General Configuration submenu, the controller’s network parameters can be set. MAC ADDRESS ROOM 72.3 SC STAT VU can be used to set the controller’s address and baud rate. In doing so, the STAT VU must have a subnet of 1.
- Page 3 3. Press the Menu button to submit the new contrast level. CONTRAST BAUD -BN-XX hardware information appears on the display. DEV .I SC BN-VU ’s hardware information may be 1. Press the Menu button several times until the Exit required by Specified Controls Technical Support for troubleshooting purposes.
- Page 4 SC-BN-XX CONFIGURATION How to enter the Configuration submenu 7. Press the Menu button again and the Setpoint High Limit will appear. The default setting is 74° F. To To enter the Configuration submenu: change the default setting, use the arrow keys. SETPOINT HIGH ROOM Hold for 5 seconds...
- Page 5 13. Press the Menu button again and the Unocc Heat 21. Press the Menu button again and Operation - Auto Setpoint will appear. The default setting is 62° F. To will appear. This is the default for automatic change the default setting, use the arrow keys. damper operation.
- Page 6 Configuration Guide BACnet VAV Diffuser Assembly Wiring Diagram SC-BN-XX SC-06-1271-051717...
