Summary of Contents for Oton KC400

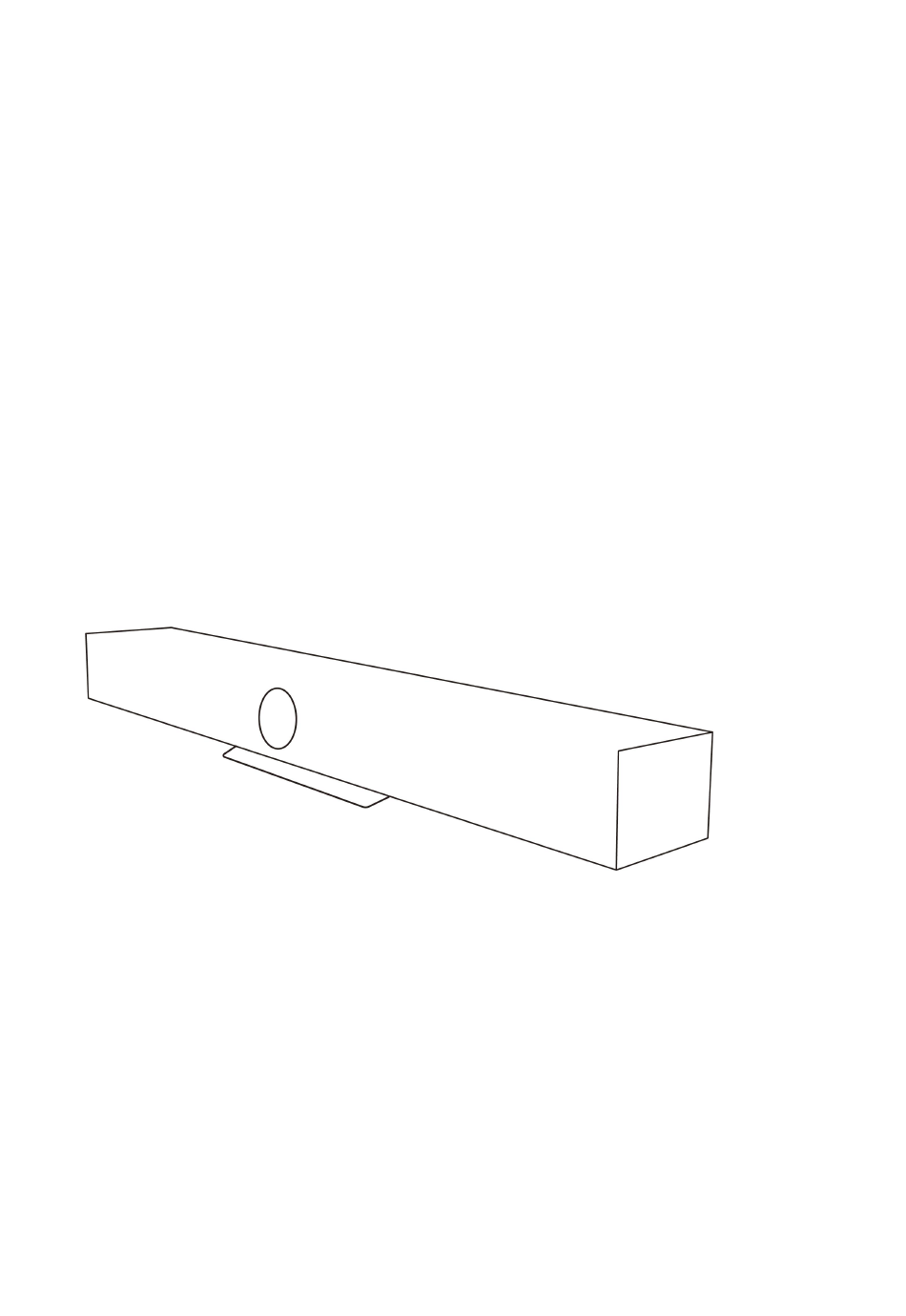

- Page 1 All-in-one video bar User Manual （V1.0） - 1 -...
- Page 2 Attentions This manual introduces functions, installation and operations for video conferencing BAR KC400 in details. Please read this manual carefully before installation and use. 1. How to use To prevent damage to this product or any product connected to it, this product can only be used within the specified range.
-
Page 3: Table Of Contents
Content 1. QUICK INSTALLATION INSTRUCTIONS....................- 3 - 1.1 P ............................- 4 - RODUCT NTERFACE 1.2 P ..............................- 4 - RODUCT 2. PRODUCT OVERVIEW............................- 5 - 2.1 P ..........................- 5 - RODUCT NTRODUCTION 2.1.1 Dimensions...............................- 5 - 2.1.2 Accessories...............................- 5 - 2.2 P ............................ -
Page 4: Quick Installation Instructions
1. Quick Installation Instructions 1.1 Product Interface Figure 1.1 Product Interfaces 1. Speaker 4. Power Switch 7. USB3.0 2. Lens 5. Power 8. Bracket 3. Built-in Mic 6. Line in 1.2 Product Use 1) Installation: Fix the device to the wall, over the display screen or directly put it on the desktop. 2) Power on: Connect the DC12V power adapter to the power input socket. -
Page 5: Product Overview
2. Product Overview 2.1 Product Introduction 2.1.1 Dimensions Figure 2.1 Dimensions 2.1.2 Accessories Standard accessories in the box User Manual 5m USB2.0 Cable Remote Control Accessories Standard Power Adapter Packing List Wall Bracket - 5 -... -
Page 6: Product Features
2.2 Product Features Features with compact design, crystal clear audio and excellent video quality, it uses advanced AI intelligent algorithms, integrates multiple AI intelligent framing technologies such as facial detection, sound positioning, and voice tracking. It automatically frame the meeting participants and adjust focus area to present the best view. Real-time detection of the speaker's position function enables the presenter to be focused in the view automatically. -
Page 7: Product Use
Processing Speaker 2*7W Controller Remote Control Infrared remote control USB Interface 1*USB3.0 (Type-B), compatible with USB2.0 Audio Port 1*3.5mm linear input Physical Power Interfaces HEC3800 power socket (DC12V) Connector Wall Bracket Standard wall mount bracket 3. Product Use 3.1 Remote Instructions 3.2 Menu Settings 3.2.1 Main Menu... - Page 8 MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Exposure） （Color） （Image） （Noise Reduction） （Verion） （Restore Default） [↑↓]Select [← →]Change Value 1) Language Move the pointer to (Language) in the main menu, press 【 ← → 】 to select the language. 2) Setting Move the pointer to (Settings) in the main menu, press [HOME] to get into the exposure page as shown below.
- Page 9 Switching Mode: pan mode/movie mode Prompt Info: on/off Transmission Mode: Bulk/Synchronization 3) Explosure In the main menu, move the pointer to (Exposure), and press [HOME] to enter the exposure page, as shown below. EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto Flicker 50Hz G.Limit [↑↓]Select [←...
- Page 10 4) Color Move the pointer to (Color) in the main menu, and press [HOME] to get into the color page, as shown below COLOR ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ WB Mode Auto Saturation 100% AWB Sensitivity High [↑↓]Select [← →]Change Value Saturation: 60%, 70%, 80%, 90%, 100%, 110%, WB Mode: automatic, manual, white balance, a key, 120%, 130%, 140%, 150%, 160%, 170%, 180%, specified color temperature...
- Page 11 Brightness：Settable：0～14 Contrast：0～14 Sharpness：0～15 Flip-H：On/Off Flip-V：On/Off B&W Mode ： Color, Black and White Gamma Curve：Default.0.34.0.39.0.47.0.50 Low-light Mode：On/Off 6) Noise Reduction Move the pointer to (Noise Reduction) in the main menu, press [HOME] to get into the noise reduction page, as shown below. NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
-
Page 12: Maintenance And Troubleshooting
page, as shown below. RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Restore Default? [↑↓]Select [← →]Change Value Notice：Color style and video format will not be restored to factory default 4. Maintenance and Troubleshooting 4.1 Product Maintenance 1) If camera is not used for long time, please turn off power adapter switch and AC plug. 2) Use soft cloth or tissue to clean the camera cover. -
Page 13: Copyright Statement
5. Copyright Statement All the contents in this manual and its copyright are owned by the company. No one is allowed to imitate, copy, or translate this manual without the company’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
