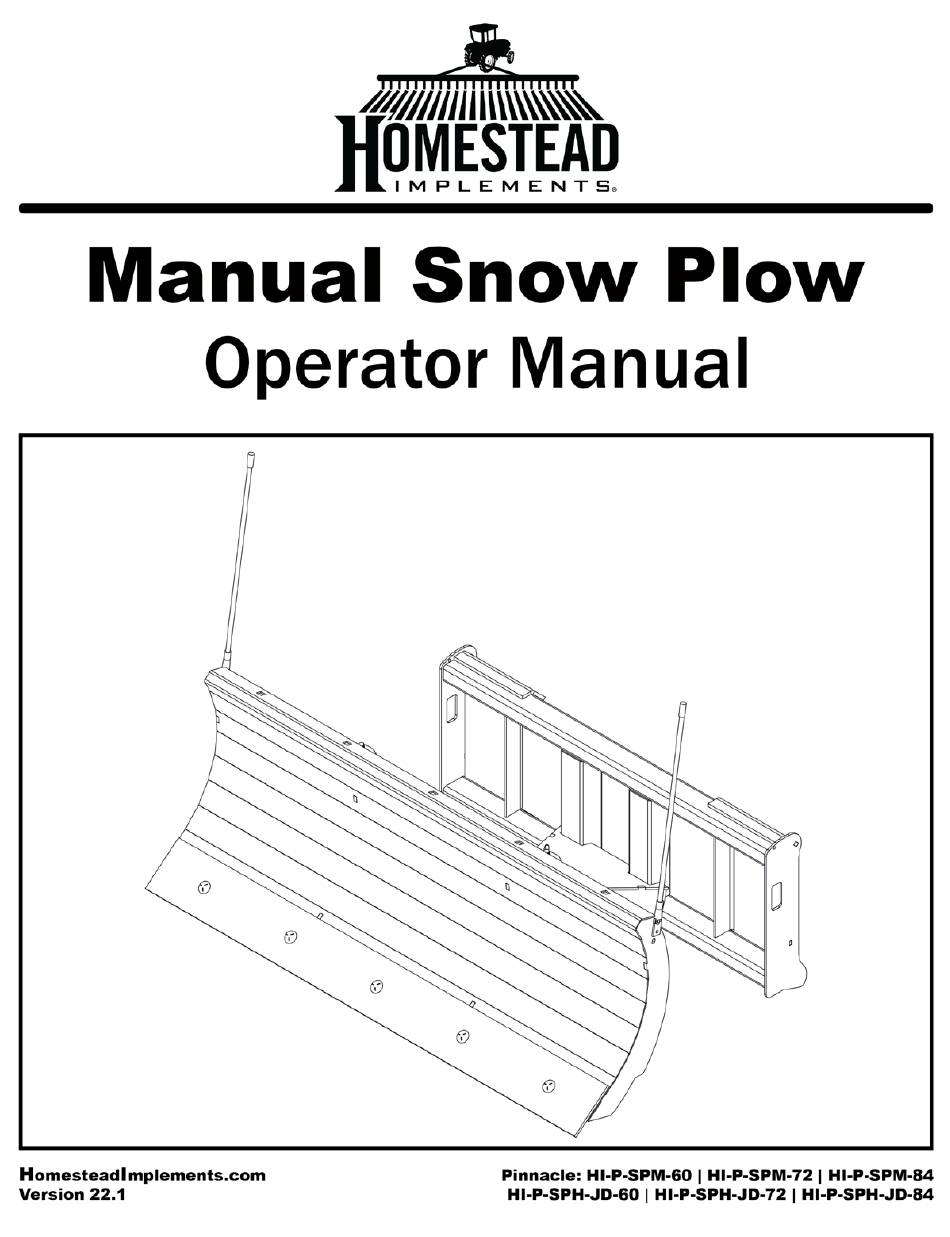

Summary of Contents for Homestead HI-P-SPM-60
-
Page 2: Table Of Contents
Table of Contents Product Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Safety Information . -
Page 3: Product Introduction
Product Introduction Homestead Implements is proud to have you as a new Serial Number Location owner of one of our high-quality tractor implements. Our Please refer to the below image for quick reference to find Manual Snow Plows have been expertly designed and... -
Page 4: Safety Information
Homestead Implements product. • Thoroughly read the “Safety Information” section and understand all instructions noted on them. - Page 5 • Disconnect battery ground cable (-) before servicing or adjusting electrical systems or before welding on the implement. • Replace parts on this implement with real Homestead Implements parts only. Do not alter this implement in a way which will adversely affect its performance.
- Page 6 Safety Information USING PERSONAL HIGH-PRESSURE FLUID SEAT BELTS AND ROPS HAZARDS PROTECTIVE EQUIPMENT • Homestead Implements recommends • Fluid escaping under pressure can (PPE) penetrate the skin and cause serious the use of a CAB or a roll-over- injury. protective-structures (ROPS) and •...
-
Page 7: Safety Decals
Safety Decals HomesteadImplements.com... -
Page 8: Ssqa Technical Information
SSQA Technical Information 2 " HI-P-SPM-60=60"(1.52m) 8 " HI-P-SPM-72=72"(1.52m) HI-P-SPM-84=84"(1.52m) CUSTOMER APPROVAL : DATE : THIS DRAWING, WHICH CONTAINS PROPRIETARY INFORMATION, IS THE PROPERTY OF JAMESTOWN ADVANCED PRODUCTS CORPORATION. IT SHALL NOT BE REPRODUCED IN ANY MANNER NOR 04/20/2022 DISCLOSED TO THIRD PARTIES WITHOUT WRITTEN PERMISSION OF JAMESTOWN ADVANCED DATE : PRODUCTS CORPORATION. -
Page 9: John Deere Technical Information
John Deere Technical Information 8 " HI-P-SPM-JD-60=60"(1.52m) 2 " HI-P-SPM-JD-72=72"(1.83m) HI-P-SPM-JD-84=84"(2.13m) CUSTOMER APPROVAL : DATE : THIS DRAWING, WHICH CONTAINS PROPRIETARY INFORMATION, IS THE PROPERTY OF JAMESTOWN ADVANCED PRODUCTS CORPORATION. IT SHALL NOT BE REPRODUCED IN ANY MANNER NOR DISCLOSED TO THIRD PARTIES WITHOUT WRITTEN PERMISSION OF JAMESTOWN ADVANCED DATE : 04/20/2022 PRODUCTS CORPORATION. -
Page 10: Grease Points
Grease Points ANGLE HOLDING PIVOT POINT TYPE OF LUBRICATION: GREASE QUANTITY: 6 STROKES HomesteadImplements.com... -
Page 11: Replacement Parts
Replacement Parts Photo Description 14" Trip Spring - Replaces Eyebolts with 2 Nuts & Lock washers Replacement Shoe Assembly 27" Long Snowplow Blade Markers Snow Plow Cutting Edge (72", 60", 84") HomesteadImplements.com... -
Page 12: Torque Information
Torque Information Torque Chart For Metric Bolts Tightening Torque Bolt Diameter Class 8.8 Class 10.9 (MM) ft lbs ft lbs Toraue Chart For Imperial Bolts Tightening Torque ASTM A354- ASTMA449/ Thread Per Bolt Size BD / SAE inches SAE Grade 5* Grade 8* ft lbs ft lbs... -
Page 13: Warranty Information
TERMS & CONDITIONS Product Warranty to the Original Purchaser All Homestead Implements products carry a 12-month limited warranty against defects in materials and workmanship under normal use. This includes all components of each implement – including gearbox assemblies, PTO shafts, and hydraulic cylinders. The warranty does not cover components of the implements that are declared wear items. - Page 14 Credit will only be issued after inspection by our staff. All returns must be sent freight prepaid. We will not accept any package shipped C.O.D. Warranty claims must be shipped with all original parts included should Homestead Implements confirm culpability for damage on the product. Homestead Implements will examine each Warranty claim individually and decide whether to repair or replace the item.
- Page 15 NOTES HomesteadImplements.com...
