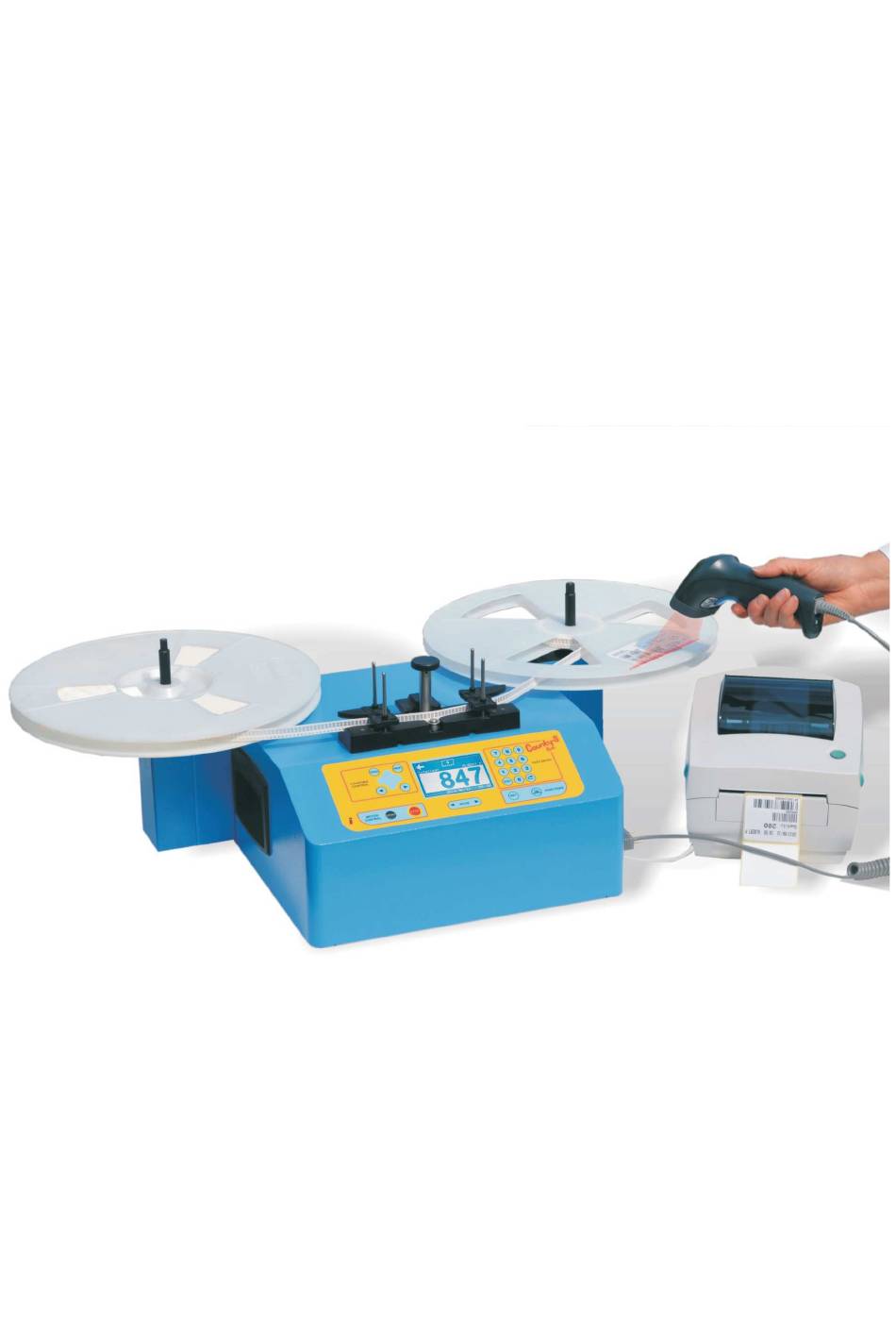

Page 1 COUNTY-S EVO REFERENCE MANUAL software release 2.x...
Page 2 EC CONFORMITY Units 8301.131, 8301.133, 8301.141 and 8301.143 conform to EC directives EMC - 2014/30/UE , LVD - 2006/95/CE, the following harmonized standards are in use EN 60335-1:2002-2006, EN 61000-6-1, EN 61000-6-3 A weighted sound pressure <70dB (A) A weighted sound power < 85dB (A) Rear sign: SAFETY INSTRUCTIONS Attach first the power cord to the counter and then into an appropriate AC...
Page 3: Table Of Contents
LIST OF CONTENTS TECHNICAL FEATURES General specifications ........4 Options .
Page 4: Technical Features
TECHNICAL FEATURES 8301.131 8301.141 8301.133 8301.143 model Power Supply 230V/25W 115V/25W 230V/25W 115V/25W Empty Pocket Check Counting: ....up to 999999pcs , 6 digits 22mm height Max.
Page 5: Set Up
SET-UP HOOKING REWIND MOTORS Left motor output Input power cord and power switch Right motor output 6 screws to fix the right motor Screw the 2 groups using the 6 motor mounting screws (in the photo is shown the fixing of the right motor) Connect the motor cable to the corresponding output close to the power input socket.
Page 6: Keyboard
KEYBOARD COUNTING CONTROL ZERO CONFIRM STARTING POSITION TO START COUNTING (TOTALIZER MODE) pressed when the first component is in correspondence of the reference LED located on the counting head. PRESET CONFIRM PRESET STARTING POSITION TO START COUNTING (PRESET MODE) pressed when the first component is in correspondence of the reference LED located on the counting head.
Page 7: Tape Move Control
TAPE MOVE CONTROL SLOW MOVING TO THE LEFT when the machine is ready for counting or rewind : - If pressed briefly moves the tape of a component left - If held longer advances the tape very slowly to the left until another key is pressed when the machine is in a special function: (SETTINGS MENU or CONTROL MENU)
Page 8: Special Functions And Printing
SPECIAL FUNCTIONS AND PRINTING ENTER THE SPECIAL FEATURES when pressed allows access to the "CONTROL PANEL" if held longer than 6 seconds allows access to the "SETTINGS PANEL" PRINT PRINT When pressed print on the external printer a label containing the counting informations.
Page 9: Operative Instructions
OPERATIVE INSTRUCTIONS POWER ON Turn on the counter( ON/OFF switch on the rear side). SETTING THE NUMBER OF HOLES PER COMPONENT Select the number of holes per component by pressing SET and accessing the "CONTROL PANEL". "PITCH" menu will be displayed . Use the data entry keys to input the number of holes per component (01 to 99) and then press EXIT The new value indicating the number of holes per component is displayed in...
Page 10: Preset Mode
PRESET MODE Select the counting direction (if not corrected) On the head will turn on the LED that indicates the counting direction, from now on we will call it "reference LED". Insert the tape and position it so that the first component reaches the reference LED (see section on "Inserting the tape and positioning").
Page 11: Control Panel Menu
CONTROL PANEL MENU To access the control panel press the "SET" button, the following screen appears: CHANGING THE MENU to move through the 5 menu PITCH MENU "0-9" to enter the number of holes per component. "EXIT" to exit the menu and save the data. 0402, 0201 and 01005 COMPONENT SIZE Repeatedly press the "0"...
Page 12: Panel Settings Menu
SETTINGS PANEL MENU To access the control panel press and hold the "SET" button for about 5 seconds, the following screen will be shown: CHANGING THE MENU to move through the 6 menu OPERATORS MENU "0-9" when the pointer is in the column "index number" to select the code to be changed "0-9"...
Page 13 BARCODE MENU "0" = barcode OFF barcode type: "1" = code39 barcode type: "2" = code128 barcode type: "0" "narrow" barcode width: "1" "normal" barcode width: "2" "large" barcode width: DATALOGGER MENU "2" NEWER (to display a more recent record) "8"...
Page 14: Barcode And Label Printing
BARCODE AND LABEL PRINTING It's possible to connect the counter to a barcode reader (8301.155) Access in the "settings panel" to the "BARCODE" menu and select the code39 or code128 and the print width desired (see section on "Settings Panel Menu"). It's possible to connect the counter to a printer (8301.090 or 8301.095) Access in the setting panel to "PC / PRINTER"...
Page 15: Connecting To A Pc
CONNECTION TO A PC It's possible connect the counter to a PC with the Windows operating system XP/2000/Vista/7/8. Access in the settings panel to "PC / PRINTER" menu and set "0" to connect to a PC (see section on "Settings Panel Menu"). Connect a serial cable RS232 output to a PC with an RS232 interface.
Page 16: Empy Pocket Check
EMPTY POCKET CHECK Only for models: 8301.133 and 8301.143 ENABLE / DISABLE EPC Access the control panel by pressing the "SET" button. to move through the 5 menu until 5/5 Menu is reached. "1" to enable EPC "0" to disable EPC to advance at Stop Number setting.
Page 17 E.P.CHECK OPTICAL SETTINGS OPTICAL SWITCH HEIGHT SETTING KNOB REFERENCE LED IR TRANSMITTER MOTOR KNOB DETECTION ZONE EPC MONITOR IR RECEIVER 1) Press "LEFT" direction . 2) Put the tape in the counting head and push throught into the driving wheel. 3) Place an Empty Pocket at the right of the REFERENCE LED in the DETECTION ZONE.
Page 18 7) Turn the HEIGHT SETTING KNOB until all the three LEDs are full lighted. INFRARED RAY (not visible) 8) Turn the HEIGHT SETTING KNOB 360° clockwise (half turn) in order to give a better tolerance to the settings PRELIMINARIY OPERATIONS TAPE LEADER without components Move the tape until you get the 3 EPC LEDs ON.
Page 19 NOTE : VARIATION OF THE STARTING NUMBER OF THE COUNT (to insert the components that are in the "Tape Leader") push = INCREMENT Keep pressed the "STOP" key or push = DECREMENT E.P.CHECK COUNTING REWIND MODE: The EPC eye indicates that system is active but empty pockets will not be taken into account.
Page 20 TOTALIZER MODE: The EPC eye indicates that EPC is active and empty pockets will be detected and counted. START AND STOP AT "STOP NUMBER" STOP NUMBER = 2: The motor has stopped because 2 consecutive empty pockets have been detected ( i.e. tape trailer without components at end of tape) COUNTY-S EVO May.2017...
Page 21: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING No particular maitenance is required. CLEANING THE OPTICAL SENSOR A periodical verification and cleaning of the optical sensor is a good practice in order to avoid counting errors due to waste paper or plastic tape . Remove first the plastic cover on the rear side of the counting head. Use an air gun to remove dust and waste.
Page 22 REWIND MOTOR FRICTION ADJUSTMENT 1) Lift up the counter about 6-8 cm 2) Unscrew the 2 rear screws on the external side 3) Unscrew the 4 upper screws and put down the metallic cover 4) Loosen the 2 fixing screws on the steel nut 5) Push up the nut , fix the screws 6) Verify the setting with a reel...
Page 23 COUNTYS-EVO SELF-TEST COUNTYS-EVO is provided with a self-test routine to check the inputs from sensor and microswitches and the funcionality of the internal memory and clock. 1) Turn OFF the CountyS-EVO 2) Keep pressed the key and without releasing it light-up the counter the display will show: Keyboard test: Z P S D R A <...
