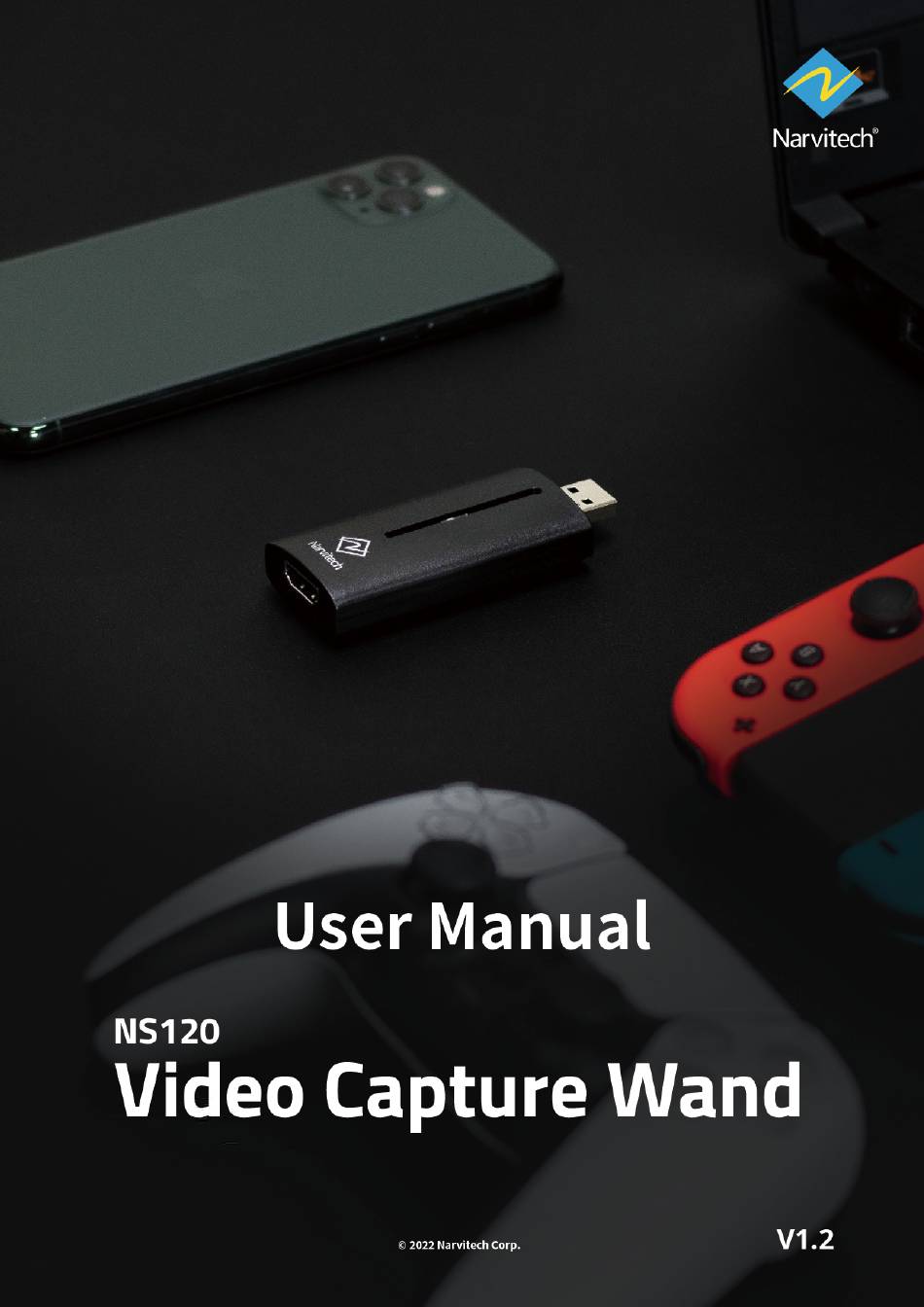

Summary of Contents for Narvitech NS120
-
Page 2: Table Of Contents
Content How to live stream via Xsplit with NS120 Download and install Video and Audio settings Start streaming Start recording How to live stream via OBS with NS120 Download and install Setting Start streaming Start recording Statement Get assistance... -
Page 3: How To Live Stream Via Xsplit With Ns120
PS4 as video source. 1. The software only supports Windows 10 and Windows 8.1 2. The software serial number card (one month only) is provided in the NS120 package, and the software needs to be downloaded from the XSplit official website. - Page 4 Start installation After the installation is completed, the login window will pop up, click "Sign In or Sign Up" Click "Continue without upgrading"...
- Page 5 After entering the main screen of XSplit Broadcast, click "Uppgrade" at the top After entering the website, scroll up and click Broadcaster After entering the serial number, restart XSplit Broadcast Enter the serial number card included in the NS120 package...
- Page 6 After restarting, "Your plug-in has been updated" appears in the upper left corner of the window interface, indicating that the professional version has been successfully upgraded.
-
Page 7: Video And Audio Settings
After entering the serial number, click "Add Resource" in the lower left corner and then click [Device> Video> Narvitech Video Capture Wand Video] 1. If the main screen is black after selecting the device video, please turn off the HDCP of the video source device [PS4: Settings>... - Page 8 NS120 input to the live broadcast The video setting of NS120 is now completed, and you are ready to start live broadcasting! 1. Click any resource in the list below and press "Delete" to delete it.
-
Page 9: Start Streaming
Start streaming After the hardware connection and software settings are completed, you can prepare to stream. Please be sure to test before the live broadcast (for example: sign up a test account to check for your streaming quality) to ensure that the resolution, volume, and content of the live broadcast are what you want. - Page 10 After clicking the next step, XSplit will automatically set it up, based on your network bandwidth and computer performance, to recommend you a suitable server and image quality settings. After that, please click Finish Next, enter the live broadcast settings and go directly to [Video Encoding> Bitrate(kbps)].
- Page 11 Click [Broadcast> Twitch] in the upper left corner again to end the live broadcast. For the XSplit live broadcast custom platform setup and more detailed settings, you can refer to [XSplit official website> Support> XSplit Broadcaster> User manual]...
-
Page 12: Start Recording
Start recording First click [Recording> Options in the red box] To end the recording, please click the option in the red frame again Finally, click [File> My Recording] in the upper left corner to find the recorded video... -
Page 13: How To Live Stream Via Obs With Ns120
How to live stream via OBS with NS120 OBS is widely known as a powerful and completely free live broadcast software. However, the difficulty of getting started with OBS is very high. Besides that, there is no complete set of "User Manual" and no professional technical team can ask for help. Therefore, only fragmented tutorials can be found on the Internet. -
Page 14: Setting
Then click [the + button in the red frame> Video capture device> Set source name] and click Select "Narvitech Video Capture Wand Video" in "Device" in the window If the preview screen is black after selecting the device, please turn off the HDCP of the video... - Page 15 (For live streaming, it is recommended to set the resolution to 1080p or 720p. Then click "Use custom audio device" option, after that, the audio device options below will pop up, and select "HDMI (Narvitech Video Capture Wand Audio) After the setting is completed, return to the main screen and click "Settings"...
- Page 16 15Mbps or more (you can test it through Google Fiber) 1. NS120 can be set up to 120FPS, but if you are going to live, it is recommended to set FPS to 60FPS or 30FPS...
-
Page 17: Start Streaming
Start streaming After the hardware connection and software settings are completed, you can prepare to stream. Please be sure to test before the live broadcast (for example: sign up a test account to check for your streaming quality) to ensure that the resolution, volume, and content of the live broadcast are what you want. - Page 18 After entering your Twitch account and password, the system will automatically send a verification code to your email After entering the verification code, please agree to the authorization Finally, click "Start Streaming" in the lower right corner can start live!
-
Page 19: Start Recording
Start recording First click "Settings" at the bottom right corner of the main screen Click "Output" in the left menu, then click to adjust the recording path after recording (send the recorded video to the specified location) and then adjust the rescaled output to the appropriate resolution by your own preferences. -
Page 20: Statement
Notices Federal Communications Commission This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 21: Get Assistance
Help Support You can go to Narvitech’ s official website for the latest updates on the product and also support information. Official website: https://Narivtech.com Support page: https://narvitech.com/home/support-center/ Contact Us You can also contact us via the following information, so we can provide the assistance you need.
