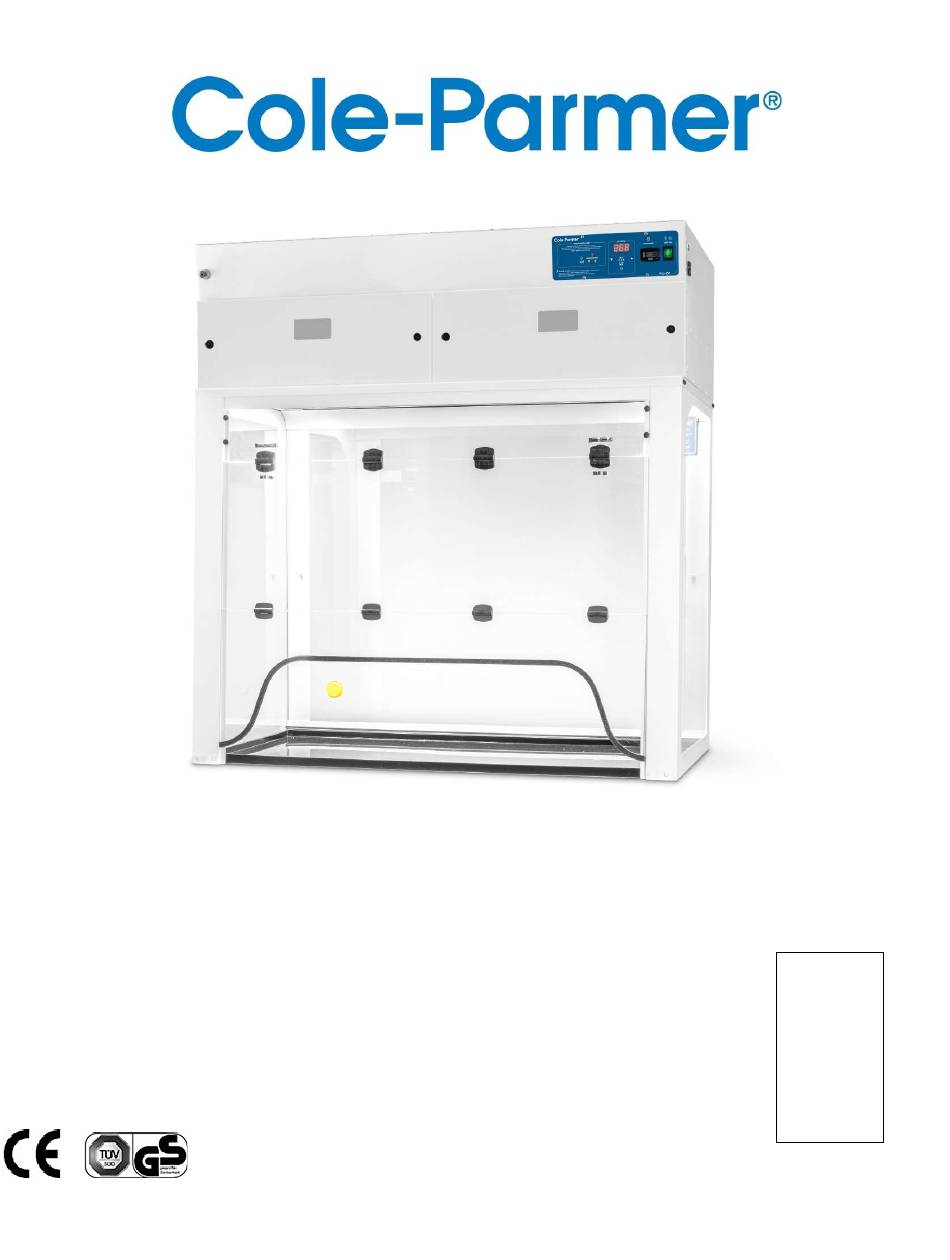

- Page 1 ® Cole-Parmer FHD-400 Series 78902-20 78902-21 Ductless Fume Hoods 78902-22 78902-23 78902-24 USER OPERATION MANUAL 78902-25 78902-26 78902-27...
-
Page 2: Table Of Contents
2 \ USER OPERATION MANUAL: FHD-400 Series Table of Contents Safety Warnings / Symbols ............................3 Limitation of Liability ..............................3 Warranty ..................................4 I. Product Information ............................ 5 II. Unpacking Your Cabinet ..........................5 2 .1 Step-By-Step Procedure ............................5 2 .2 Packaging Contents ............................... -
Page 3: Safety Warnings / Symbols
3 \ USER OPERATION MANUAL: FHD-400 Series Safety Warnings • Read all instructions before proceeding and observe the installation procedure and environmental/electrical requirements . • Anyone working with, on or around this equipment should read this manual . Failure to read, understand and follow the instructions given in this documentation may result in damage to the unit, injury to operating personnel and/or poor equipment performance . -
Page 4: Warranty
4 \ USER OPERATION MANUAL: FHD-400 Series Warranty The manufacturer agrees to correct for the original user of the product, either by repair (using new or refurbished parts), or at the manufacturer’s election, by replacement (with a new or refurbished product), any defects in material or workmanship which develop during the warranty period. -
Page 5: Product Information
5 \ USER OPERATION MANUAL: FHD-400 Series I . Product Information The FHD-400 Advanced Series ductless fume hoods are a series of high efficiency products designed to protect the user and the environment from hazardous vapors generated on the work surface . At the heart of the fume hood product line is the innovative Cole-Parmer Filtration Technology that creates a safe work environment over the widest range of applications in the industry . -
Page 6: Packaging Contents
6 \ USER OPERATION MANUAL: FHD-400 Series 5 . Moving the Cabinet . » When lifting the pallet with the cabinet, always ensure that the floor jack or mechanical lift truck has fully entered under the pallet . This is to increase the stability of the cabinet and reduce the risk of the cabinet falling down. Please use a suitable extension bar when necessary. -
Page 7: Installing Your Cabinet
7 \ USER OPERATION MANUAL: FHD-400 Series III . Installing Your Cabinet 3 .1 Choosing a Suitable Location Location impacts the nature and extent of external airflow disturbances, which may affect performance of the cabinet when it is exposed to these disturbances . -
Page 8: Installing Your Cabinet
8 \ USER OPERATION MANUAL: FHD-400 Series Power Cord: 1) For units intended to be operated at 120 volts (North America): Use a UL-listed and CSA-certified cord set consisting of a minimum 18 AWG, Type SVT or SJT, three-conductor cord, a maximum of 15 feet in length and a parallel blade, grounding-type attachment plug rated 15 amperes, 125 volts . -
Page 9: Set Up
9 \ USER OPERATION MANUAL: FHD-400 Series 3 .4 Set Up Your Cole-Parmer product is shipped in two parts . The following instructions and photos explain how to: Assemble the base “enclosure” and place the head unit (fan and controls) on top: •... - Page 10 10 \ USER OPERATION MANUAL: FHD-400 Series 3 . Ensure head unit is properly aligned . Back corners of head unit should be touching the guide brackets on the top of the enclosure . Remove protective film from clear panels.
- Page 11 11 \ USER OPERATION MANUAL: FHD-400 Series 6. To install the main filter(s), use key to unlock the cam locks on filter door. 7 . Place the wheels of the main carbon/HEPA filter on the track and push all the way in. If unit has...
- Page 12 12 \ USER OPERATION MANUAL: FHD-400 Series Final Assembly 10. To install the airflow sensor, remove the clear panel on the inner right sidewall. Open the screw cap on the outside of the enclosure, undo the screw and nut and set aside. DO NOT DISCARD! 11.
- Page 13 13 \ USER OPERATION MANUAL: FHD-400 Series Air Velocity Meter Equipped Units 14. Add airflow meter as follows: » Insert vane/film into the airflow meter. Slide out vane holder from side of meter (just below the screw) . b . Carefully remove vane from plastic bag and cardboard envelope (two vanes are enclosed, one is a spare) .
- Page 14 14 \ USER OPERATION MANUAL: FHD-400 Series 15 . Removable yellow caps are provided in the rear wall of the enclosure to allow cables and hoses to be fed inside of the enclosure as required; refit the yellow caps when the holes are not in use .
-
Page 15: Performance Validation / Certification
15 \ USER OPERATION MANUAL: FHD-400 Series 3.5 Performance Validation / Certification After installation and prior to use, cabinet performance must be validated and certified to factory standards. The following test should be performed: Airflow Velocity The testing methods and equipment required are specified on the test report. It is recommended that these tests be performed only by a qualified technician who is familiar with the methods and procedures for certifying these types of cabinets . -
Page 16: Operating Your Cabinet
16 \ USER OPERATION MANUAL: FHD-400 Series IV . Operating Your Cabinet 4 .1 Control System Control Panel The controller displays the airflow and offers limited detection of low concentrations of hydrocarbon, some gases and organic acids. Audio and visual alarms alert users to filter saturation and if the airflow reaches preset thresholds. An Hour Counter with preset alarm intervals for pre-filter and main filter change out is also included . -
Page 17: Cabinet Operating Procedure
17 \ USER OPERATION MANUAL: FHD-400 Series 4 .2 Cabinet Operating Procedure • The fume hood should only be operated with the correct filter installed for the application. Refer to Filter Information for further information. The ductless fume cabinet must not be used for laboratory work in which chemicals of different types are used that do not match the filter type or that the primary chemicals or their byproducts are not known . -
Page 18: Monitoring
18 \ USER OPERATION MANUAL: FHD-400 Series V . Monitoring 5 .1 General The purpose of the monitoring program is to ensure consistent reliability from the system . This is achieved by checking the following: • If the pre-filters become blocked, the velocity of the cabinet will begin to fall and will eventually cause the airflow alarm to illuminate. -
Page 19: Maintenance
19 \ USER OPERATION MANUAL: FHD-400 Series VI . Maintenance 6 .1 General In some countries it is mandatory to maintain written records of checks, tests and repairs carried out on safety equipment . These records must be kept for 5 years . A full list of Occupational Exposure Limits should be obtained from your safety officer. -
Page 20: Filter Condition Monitor (Fitted As An Option)
20 \ USER OPERATION MANUAL: FHD-400 Series 6 .6 Filter Condition Monitor (Fitted as an Option) Under normal operating conditions (if option fitted) the display will show a green filter to indicate it is safe. If the filter display is red, the filter should be checked as follows: •... -
Page 21: Changing Out Filters
21 \ USER OPERATION MANUAL: FHD-400 Series 6 .8 Changing Out Filters WARNING! Ensure persons removing filters are made aware of any potential hazards and that they are provided with any necessary protective clothing and equipment. Hazards associated with the removal and disposal of used filters will depend on the application of the hood. If an activated carbon filter is used with hydrocarbon solvents, the filter will retain the solvents without loss, and can be removed in the laboratory. -
Page 22: Maintenance Schedule
22 \ USER OPERATION MANUAL: FHD-400 Series 6 .10 Maintenance Schedule Please follow the suggested maintenance schedule in order to maintain your Cole-Parmer cabinet at its optimum performance . Monthly Semiannually 1 . Using a damp cloth, clean the exterior surfaces of the Replace all HEPA filters. -
Page 23: Fault Finding
23 \ USER OPERATION MANUAL: FHD-400 Series 6 .12 Fault Finding WARNING! Before attempting any inspection or replacement of electrical components, always isolate the cabinet from the main power supply and remove the power supply cable. Fault Check Filter Blockage Alarm •... -
Page 24: Component Changing
24 \ USER OPERATION MANUAL: FHD-400 Series 6 .13 Component Changing SHOULD ONLY BE CARRIED OUT BY TRAINED PERSONNEL WARNING! Ensure main power supply has been removed prior to any work being initiated. Light Units To change a light unit, use the following instructions: 1 . -
Page 25: Filter Information
25 \ USER OPERATION MANUAL: FHD-400 Series VII . Filter Information Filter Types Cole-Parmer offers various types of activated carbon and particulate filter media. These formulas can be customized or layered into nearly limitless combinations to best suit your specific application. HEPA filters are available for applications involving particulates and can be combined together with any of our activated carbon filters. - Page 26 Cole-Parmer, an Antylia Scientific company 625 East Bunker Court Vernon Hills, IL 60061-1844 Ph: 1-800-323-4340 Fax: 1-847-247-2929 coleparmer.com info@coleparmer.com ©2022 Cole-Parmer Instrument Company, LLC. All rights reserved.
