Summary of Contents for Technogym Easy Lamp

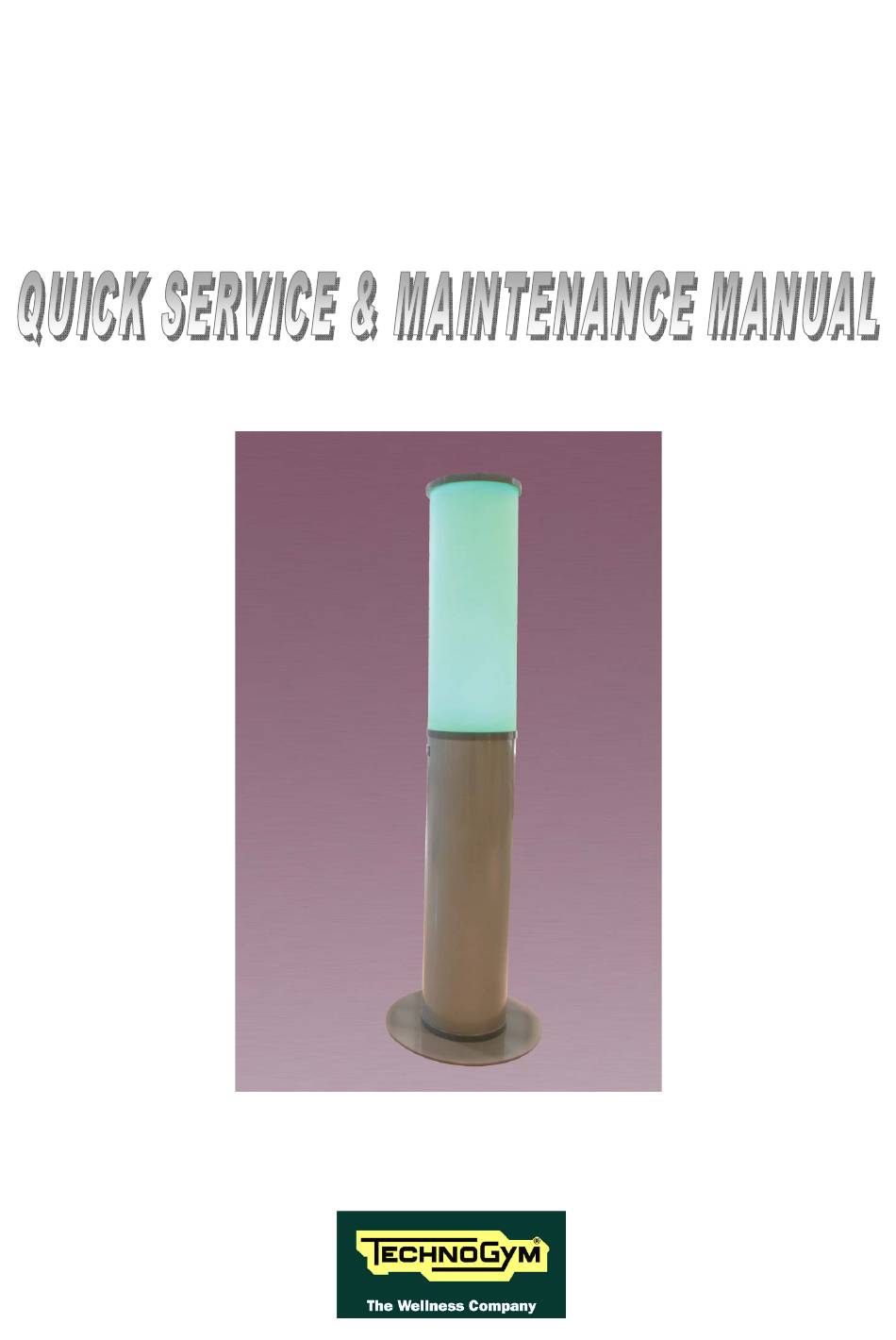

  • Page 1 . 1.0...
  • Page 3 The information contained in this document is subject to change without notice. Technogym does not guarantee this documentation in any way. Technogym shall not be held responsible for any errors contained in this manual and declines all liability for accidents or damages resulting from the supply, characteristics or use of this manual.

  • Page 5: Table Of Contents

    Easy Lamp: Quick Service & maintenance manual – rev. 1.0 Contents 1. GENERAL NOTICES............................. 1.1 1.1. I ..............................1.1 NTRODUCTION 1.2. R ............................1.1 ECOMMENDATIONS 1.3. G ......................1.2 ENERAL RULES FOR REPAIR PROCEDURES 2. TECHNICAL SPECIFICATIONS ........................2.1 2.1. EASY LAMP..............................2.1 2.2.
  • Page 6 Easy Lamp: Quick Service & maintenance manual – rev. 1.0 Page intentionally left blank. Page ii...

  • Page 7: General Notices

    1. GENERAL NOTICES 1.1. INTRODUCTION This document is reserved for Technogym Service technicians, and is intended to provide authorized personnel with the necessary information to correctly carry out repairs and maintenance. A thorough knowledge of the technical information contained in this manual is essential for completing the professional training of the operator.

  • Page 8: General Rules For Repair Procedures

    1. Always mark any parts or positions which may be confused with each other at the time of reassembly. 2. Use original Technogym spare parts and lubricants of the recommended brands. 3. Use special tools where specified. 4. Consult the Technical Newsletters, which may contain more up-to-date information on adjustments and maintenance than those contained in this manual.

  • Page 9: Technical Specifications

    Easy Lamp: Quick Service & maintenance manual – rev. 1.0 2. TECHNICAL SPECIFICATIONS 2.1. EASY LAMP 2.2. BATTERY SEALAKE FM-1270 12V/ 7 AMPS – 20 HR Made In USA Rech. Sealed Lead Acid battery Page 2.1...

  • Page 10: Power Supply (Battery Charger)

    Easy Lamp: Service & maintenance manual – rev. 1.0 Nominal voltage: 12V Nominal capacity ( 20 hour rate) : 7.0Ah Dimensions: Total height: 3.937" ( 100mm) Height: 3.740" ( 95mm) Length: 5.945" ( 151mm) Width: 2.559" ( 65mm) Mass weight: approx. 2.53kg Capacity ( 25 degrees Celsius) : 7.0Ah ( 20 hour rate/ 385mA)

  • Page 11: Wiring Diagrams

    Easy Lamp: Quick Service & maintenance manual – rev. 1.0 2.4. WIRING DIAGRAMS 2.4.1. GENERAL MAIN BOARD LAMP REMOTE CONTROL SENSOR Patch FUSE Conn. Conn. Plug BATTERY POWER SUPPLY BATTERY Page 2.3...

  • Page 12: Power Supply Connector

    Easy Lamp: Service & maintenance manual – rev. 1.0 2.4.2. POWER SUPPLY CONNECTOR 2.4.3. ELECTRONIC BOARD Page 2.4...
  • Page 13 Easy Lamp: Quick Service & maintenance manual – rev. 1.0 Page 2.5...

  • Page 14: Cables

    Easy Lamp: Service & maintenance manual – rev. 1.0 2.5. CABLES 2.5.1. POWER SUPPLY CABLE Power supply - Electronic board Power supply Signal Colour Electr. board +14Vdc* Black * It can be lower when the battery is being charged (13Vdc) 2.5.2.

  • Page 15: Principles Of Operation

    10 sec. otherwise Easy Lamp won’t switch on by itself. After this first pulse it can be switch on and off normally by the remote control.

  • Page 16: Tube Assembly

    Easy Lamp: Service & maintenance manual – rev. 1.0 3.2. TUBE ASSEMBLY It’s made of a transparent and painted tube assembly: painted tube contains batteries while transparent tube guarantees a correct light diffusion. Both the transparent and the painted tube assembly tube have been modified with some notches (highlighted in the picture below), in order to allow possible battery gas coming out from the tube, in case of battery issues.

  • Page 17: Remote Control

    It’s a 14,4Vdc (15W – 1,04A) power supply unit, used to re-charge battery and switch on the Easy Lamp the first time (or when battery are replaced, disconnected or fully empty). It has a diode in the red cable to stop possible current back from battery.

  • Page 18: Battery

    This in order to ensure a longer Easy Lamp run time by battery. But it is important, for the best performance, that both batteries basically has got the same voltage.

  • Page 19: Troubleshooting

    Easy Lamp: Service & maintenance manual – rev. 1.0 4. TROUBLESHOOTING The troubleshooting procedures are illustrated by means of flow diagrams. To facilitate interpretation of these diagrams, the following standard box shapes are used: This type of box is the START point of the troubleshooting START procedure.
  • Page 20 Easy Lamp: Service & maintenance manual – rev. 1.0\ THE EASY LAMP DOES NOT ILLUMINATE Check if the main power reach the electronic board at Connect the Power Supply and terminals P1 and P2. Replace the electronic check if a red f lash appear.
  • Page 21 Easy Lamp: Service & maintenance manual – rev. 1.0 Check the remote control lithium battery . Is it at least Replace the remote control battery . 3Vdc? Check if the remote control inf rared led trasmitter is Replace the remote control.
  • Page 22 Place the tester probes across pins P1 and P2 and check if you measure about 13,6Vdc. To switch on the Easy Lamp press any one of the 4 numeric keys. Related program should starts.
  • Page 23 Easy Lamp: Service & maintenance manual – rev. 1.0 Faston contacts needs to be firmly fixed. If it has any play, tight it down by pliers and fix it by adhesive tape (see picture below). See also Technical Newsletter 04/09.
  • Page 24 Easy Lamp: Service & maintenance manual – rev. 1.0\ Check the remote control Lithium battery as showed in the picture below. Full battery is about 3,3Vdc. Place the remote control infrared led transmitter just in front of a camera lens and press a button.
  • Page 25 Easy Lamp: Service & maintenance manual – rev. 1.0 THE EASY LAMP MAKES A BLUE LIGHT Check the battery v oltage. Is it Press 3 in the remote control to Program mode: ref er to the user's lower than 12Vdc?
  • Page 26 Easy Lamp: Service & maintenance manual – rev. 1.0\ Page intentionally left blank Page 4.8...

  • Page 27: Appendix

    Easy Lamp: Service & maintenance manual – rev. 1.0 5. APPENDIX 5.1. DISASSEMBLING THE CASING Page 5.1...

  • Page 28: Disassembling The Electronic Board

    Easy Lamp: Service & maintenance manual – rev. 1.0\ 5.2. DISASSEMBLING THE ELECTRONIC BOARD 5.3. BEFORE USING THE REMOTE CONTROL Page 5.2...
  • Page 29 Easy Lamp: Service & maintenance manual – rev. 1.0 Page intentionally left blank Page 5.3...
  • Page 32 TECHNOGYM S.p.A. Via G. Perticari, 20 47035 Gambettola (FC) ITALIA Tel.: +39-0547-650638 Fax: +39-0547-650150 e-mail: service@technogym.com...
