UltraLift Prolift Advanced Programming Manual

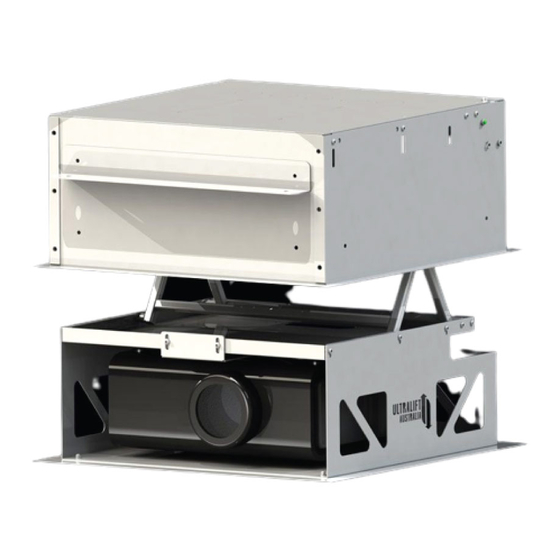

Prolift Advanced Control Box

3-STOP PROGRAMMING GUIDE

Contents

Introduction ........................................................................................................................................................................ 2

Programming Process ......................................................................................................................................................... 3

Reference Figures ............................................................................................................................................................... 5

Table of Contents

Need help?

Do you have a question about the Prolift Advanced and is the answer not in the manual?

Questions and answers

Summary of Contents for UltraLift Prolift Advanced

Page 1 Prolift Advanced Control Box 3-STOP PROGRAMMING GUIDE Contents Introduction ..................................2 Programming Process ................................. 3 Reference figures ................................5...
Page 2 Introduction This guide will allow you to program the show and service positions of your projector lift. To program the projector lift, you will need to know: 1. The Show position 2. The Service position or fully lowered position The following information is needed to calculate the rate at which the lift lowers (e.g. mm/sec).
Page 3 Programming Process I. Key Information – provided as a example only – you need to determine values for each for your lift: Motor tube diameter : 51.1 mm Motor rpm : 12 turns/minute Show position : 1500 mm from home/closed position (measured from bottom of the projector lift frame) Service position : 3000 mm from home/closed position (measured from bottom of the projector lift frame) Service position (fully lowered) is not programmed here.
Page 4 Programming instructions using the 24-channel Programming IR/RF Remote Transmitter: 1. Before we get started, the legend of the characters used are as follows: a. O = Open b. C = Close c. + = Press and hold simultaneously d. > = Indication to proceed to the next button to press e.
