Global Fire Equipment Vulcan 2 DS Quick Start Manual

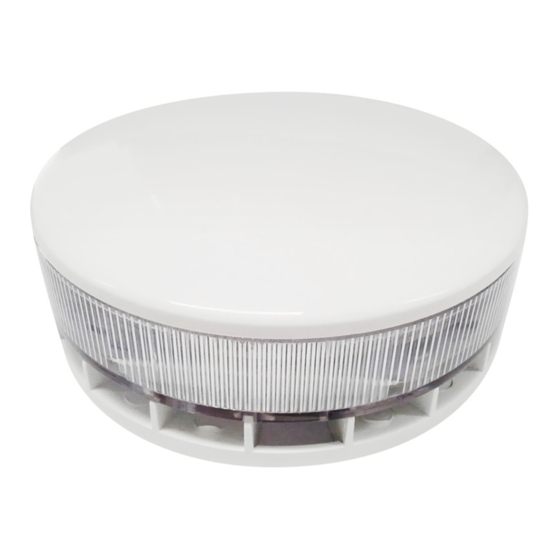

Vulcan 2 DS
Detector Sounder/ Beacon
Sítio dos Barrabés, Armazém Nave Y, Caixa Postal 908-Z, 8150-016 São Brás de Alportel - PORTUGAL |
Sales: sales@globalfire-equipment.com | Technical Support: techs@globalfire-equipment.com | www.globalfire-equipment.com
SUPPLY VOLTAGE
LOOP CURRENT - QUIESCENT
LOOP CURRENT - SOUNDER/BEACON ACTIVE
Sweeping Tone 800-1000 Hz
Alternating High Freq. 2.7-3.2 KHz
Continuous Tone 800 Hz
Alternating Low-Freq. 800-1000 Hz
LOOP CURRENT - BEACON
MAXIMUM SOUNDER OUTPUT
CABLE SIZE
RESET/START-UP TIMES
PROTECTION CATEGORY
COLOUR / CASE MATERIAL
OPER. TEMPERATURE / MAX. HUMIDITY
DIMENSIONS / WEIGHT
ORDER CODE
VULCAN 2 DS
VULCAN 2 DSI
VULCAN 2 DSB
VULCAN 2 DSBI
VULCAN 2 DB
VULCAN 2 DBI
VULCAN 2 L
VULCAN 2 LT
NOTE: Add to sounder/ beacon current when active, conventional detector current in alarm which is internally limited to a maximum of 12 mA.
Mode Selection
When connecting the conventional detector always follow the manufacturer's instructions to ensure proper operation.
NOTE: If Mode (M) SW 3 & SW 4 are set to OFF, the device will behave like a normal addressable sounder.
In this mode no detectors, conventional or analogue addressable can be connected to this sounder unit.
The shadow sounder mode will still be available by placing switch no. 8 in the OFF position.
GLOBAL FIRE EQUIPMENT S.A.

TECHNICAL SPECIFICATIONS

Loop Powered - 20V to 30V DC
430 uA & 550 uA with isolator - add conventional detector quiescent current
SOUNDER
2.5 mA
5 mA
2.5 mA
2.5 mA
Beacon 2.5 mA Beacon with isolator 2.7 mA
97 dB (@ 1 meter - 30 V DC)
0.5-2.5 mm²
20 seconds max.
Type A - Indoor Use - Rating IP21C
White or Red / ABS
o
-10 C to 55 C / 95% RH Non-Condensing
100 (D) x 50 (H) mm inc. base / 144 g inc. base
DESCRIPTION
VULCAN 2 DETECTOR SOUNDER
VULCAN 2 DETECTOR
VULCAN 2 DETECTOR SOUNDER WITH BEACON
VULCAN 2 DETECTOR SOUNDER WITH BEACON WITH ISOLATOR
VULCAN 2 DETECTOR BEACON
VULCAN 2 DETECTOR BEACON WITH ISOLATOR
LID FOR VULCAN 2
TRANSPARENT LID FOR VULCAN 2

CONNECTIONS AND TONE/MODE SETTINGS

Volume
Adjustment
black wire
red wire
Detector
Base
Normal Sounder
ma_vulcan2ds_01_010002_en_220103
SOUNDER/BEACON
3.3 mA
6.4 mA
3.3 mA
3.3 mA
o
SOUNDER WITH ISOLATOR
Detector
Sounder
Loop In/Out
T M
Optical Detector
1 2 3 4
MADE IN PORTUGAL - EU
Tel: +351 289 896 560
SOUNDER W. ISO. SOUNDER/BEACON W. ISO.
2.65 mA 3.45 mA
5.15 mA
6.55 mA
2.65 mA
3.45 mA
2.65 mA
3.45 mA
T M
M - Mode
T - Tone
ALTERNATING
T M
HIGH-FREQUENCY TONE
2.7 KHz-3.2 KHz
T M CONTINUOUS
TONE
800 Hz
T M SWEEPING
TONE
800-1000 Hz
T M ALTERNATING
LOW-FREQUENCY TONE
800-1000 Hz
T M
Heat Detector
1 2 3 4
