Summary of Contents for Seura SSB-1
- Page 1 WARRANTY REGISTRATION REGISTER FOR EXTRA BENEFITS Activate within 30 days of purchase: seura.com/activate OUTDOOR 80W SOUNDBAR MODELS SSB-1 SSB-2...
-
Page 2: Table Of Contents
Welcome Thank you for purchasing a Séura Outdoor 80W Soundbar. Please read these instructions carefully before operating your new product. Contents Specifications ......................... 3 Safety Warnings ......................4 Get to know your Séura® Outdoor Soundbar ............9 Parts and Tools ......................11 Installation Option 1: Mount to Bottom of Séura Outdoor TV ...... -
Page 3: Specifications
Specifications Model: SSB-1 Model: SSB-2 TV Models SHD2-43, TV Models SHD2-65, SÉURA TV COMPATIBILITY SHD2-55, UB4-50 SHD2-75, UB4-65, UB4-85 OPERATING TEMP. RANGE -40°F to 140°F* OPERATING HUMIDITY RANGE 10–90% Relative Humidity, Non-Condensing WATERPROOF RATING IP55 POWER CONSUMPTION 100-240V, 50-60Hz, 80W Peak... -
Page 4: Safety Warnings
WARNING: READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS PRODUCT. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s CAUTION enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 5 AVERTISSEMENT: LIRE TOUTES LES INSTRUCTIONS AVANT D’INSTALLER OU SERVICE CE PRODUIT. Ce symbole est destiné à alerter l’utilisateur de la présence d’une «tension dangereuse» non isolée à l’intérieur de l’enceinte du CAUTION produit qui peut être d’une amplitude suffisante pour constituer un risque de choc électrique pour les personnes.
- Page 6 Important Safety Instructions Read these instructions. operation and to protect the product type plug has two blades and a third from overheating. grounding prong. The wide blade or the Keep these instructions. third prong is provided for your safety. 20. Do not mount this product near a motor When the provided plug does not fit into Heed all warnings.
- Page 7 Consignes De Sécurité Importantes Lisez ces instructions. amplificateurs) qui produisent de la chaleur. 28. N’allez pas à l’encontre de l’objectif de sécurité de la prise de type polarisée ou mise Conservez ces instructions. 19. Une ventilation adéquate doit être à la terre. Une fiche polarisée a deux lames maintenue pour assurer un fonctionnement dont l’une est plus large que l’autre.
- Page 8 FCC Supplier’s Declaration of Conformity Séura Outdoor 80W Soundbar SSB-1, SSB-2 This device complies with part 15 of the FCC Rules. Operation is subject to the follow two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 9: Get To Know Your Séura® Outdoor Soundbar

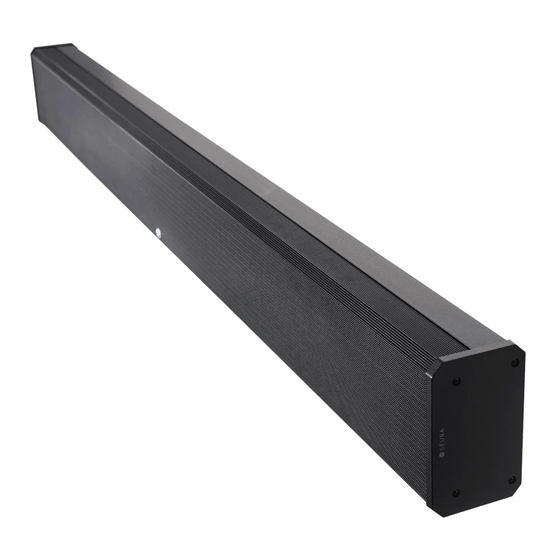

Get to know your Séura Outdoor Soundbar ® Audio Sources The Séura 80W Outdoor Soundbar is an amplified soundbar that has been designed to provide best-in-class sound for Séura Outdoor TVs. The soundbar uses a 3.5mm input jack dependent on a variable audio input similar to a standard headphone jack. - Page 10 Aux In Optical Micro Power Input Digital Audio Input Get to know your Séura Outdoor Soundbar ® Selecting the Installation Location Installation over a gas fireplace is acceptable if the distance from the heat source is such that the air temperature surrounding the display does not exceed the maximum operating temperature.
-
Page 11: Parts And Tools
Parts Included Parts NOT Included • Soundbar • TV mounting brackets (sold separately) • Power Cable (pre-installed to soundbar) • Four M8 screws (for attaching Soundbar Mounting Brackets to Séura Full Sun Series • 3.5mm RCA Cable (pre-installed to soundbar) Outdoor TVs) Note: VESA screws to mount the soundbar to the TV are included with •... -
Page 12: Installation Option 1: Mount To Bottom Of Séura Outdoor Tv
Installation Option 1 Mount to Bottom of Séura Outdoor TV... - Page 13 Step 1: Prep for Installation a. Lay the TV face down on a soft, clean surface. Position the soundbar face down along the bottom edge of the TV. Take caution not to lay the TV on a surface that will scratch or damage the screen. WARNING: Ensure the Séura display is properly supported on a flat surface at least as large as the display.
- Page 14 Step 2: Attach the soundbar mounting brackets to the TV a. Lay the soundbar mounting brackets on the back of the TV and soundbar. Use the shorter set of soundbar mounting brackets for 50-inch and smaller Séura TVs. Use the longer set of soundbar mounting brackets for 55-inch and larger Séura TVs.
- Page 15 Step 3: Attach the soundbar to the TV a. (Optional) Remove the backing on the VHB tape. b. Slide the soundbar so it touches the bottom of the TV and is flush with the vertical bars. c. (Optional) Firmly apply pressure to the soundbar against the TV edge to fully engage the VHB tape.
- Page 16 Step 4: Make AV connections 1. Unscrew the thumb screws on the AV compartment on the back of the TV to open it. Plug the 3.5mm RCA cable from the soundbar into the Line Out port on the TV. Plug the power cable from the soundbar into the power outlet on the TV.
-
Page 17: Installation Option 2 Mount To A Wall
Installation Option 2 Mount to a Wall... - Page 18 Mark the wall where you want to hang the soundbar. Using a level and a pencil, mark two holes 23.9" apart for soundbar model SSB-1 or 30.2" apart for soundbar model SSB-2. When installed, the top of the soundbar will sit approximately 2.5" higher than the screw location. The bottom of the soundbar will be approximately 3.0"...
- Page 19 Step 4: Make AV connections. Connect the 3.5mm RCA cable from the soundbar to the Line Out port on the TV. Connect the power cord from the soundbar to a GFCI protected AC outlet with an “in-use” waterproof cover. The 80W Outdoor Soundbar is designed for use with 100-240 volt, 50-60 Hz, 80W peak AC current.
-
Page 20: Operating Instructions
Operating Instructions The Séura Outdoor Soundbar powers on and off with the TV. Seamlessly integrated with display controls, the TV remote control operates all features via the display menu including volume, mute, sound profiles, etc. Caring for your Séura Soundbar Use of a Séura Outdoor Cover when not in use is recommended to keep your outdoor TV and soundbar clean and dry. -
Page 21: Troubleshooting
Troubleshooting If the product is not working properly, please check the following troubleshooting solutions before you contact customer service: Challenge Possible Solution • Make sure the soundbar is connected to the power supply • Make sure your cables are connected properly No Sound •... - Page 22 LIMITED PRODUCT WARRANTY For information regarding Séura’s warranty policy, please visit our website: www.seura.com/warranty. If the current Séura warranty policy is after your product purchase date, please contact Séura Customer Support to request warranty documentation from the date of your purchase.
