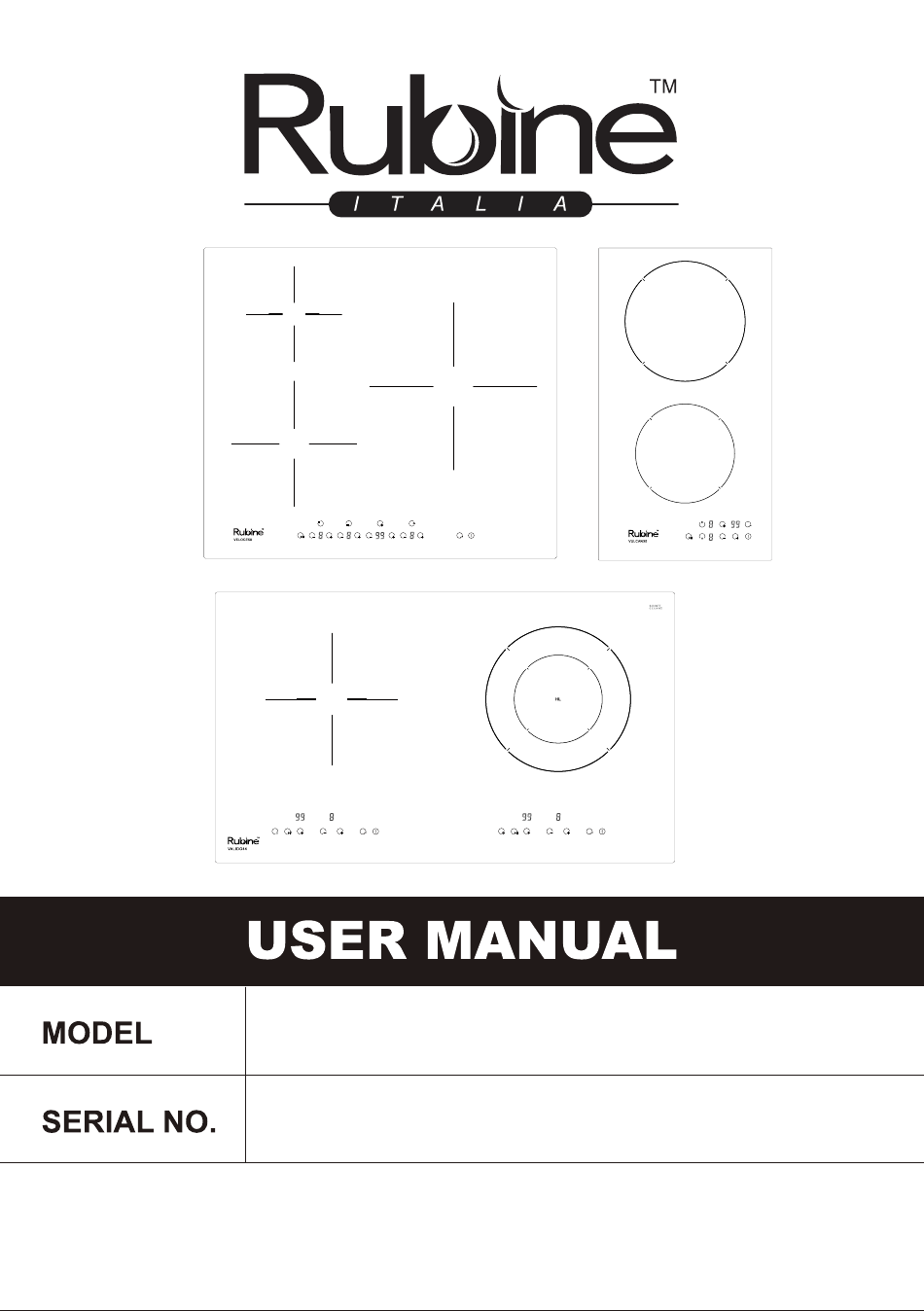

- Page 1 VULCAN series VELOCE series VALIDO series ELECTRIC HOB...
- Page 2 CONTENTS: Part 1. Safety Warnings Part 2. Installation Part 3. Operation Instructions Part 4. Cleaning and Maintenance...
- Page 3 Congratulations on the purchase of your new hob and thank you for choosing us! Please read all the safety instructions carefully before use and keep this Manual for future reference. Part 1. Safety Warnings Safety Warnings Your safety is important to us. Please read below information carefully before installing or using your Hob.
- Page 4 Panel Hazard • Take care - panel edges are sharp. • Failure to use cautiously could result in injury or cuts. Important safety instructions • Read these instructions carefully before installing or using this appliance. • No combustible material or products should be placed on this appliance at any time.
- Page 5 Operation and maintenance Electrical Shock Hazard • Do not cook on a broken or cracked hob. If the hob surface should break or crack, switch the appliance off immediately at the main power supply (wall switch) and contact a qualified technician. •...
- Page 6 Hot Surface Hazard • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact with the ceramic glass until the surface is cold. •...
- Page 7 Important safety instructions • Never leave the appliance unattended when in use. Over boiled causes smokes and greasy spillovers that may ignite. • Never use your appliance as a work table or storage surface. • Never leave any objects or utensils on the appliance.
- Page 8 the area where the appliance is in use. •Children should have guardian to assist if they wish to use the appliance (we strongly recommend not to allow children to use the appliance for their safety). Besides, for disabled personnel, he/she must fully competent to use the appliances at its own risk &...
- Page 9 other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments. •This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning usage...
- Page 10 Part 2. Installation Installation Instructions The appliance must be installed and connected in accordance with current regulations. After unpacking the appliance, ensure there is no visible damage. If it has been damaged during transit, DO NOT USE, contact where you buy immediately. Selection of installation equipment -Cut out the work surface according to the sizes shown in the drawing.
- Page 11 RIH-VELOCE58-BL 555+5 495+5 50 min RCE-VULCAN40-BL 705+5 405+5 50 min RIH-VELOCE44-BL RCH-VALIDO44-BL RCE-VULCAN44-BL RCH-VALIDO53-BL 555+5 495+5 50 min Installing the foam gasket Before inserting the hob into the opening on the kitchen worktop, the supplied foam gasket (in a plastic bag) must be attached to the lower side of the ceramic glass.
- Page 12 A(mm) B(mm) C(mm) 760mm 50mm minimal 20mm minimal Air intake Air exit 5mm Before locating the fixing brackets The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Easy Fit kits There is one easy fit kits package for each hob, include fixing clips and screws (for ceramic hob total 2pcs clip and 2pcs screw, for induction hob total 4pcs clip and...
- Page 13 Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The appliance has a large power rating and must be connected to electricity by a Qualified Electrician. Notes: 1.
- Page 14 The method of connections shown below.
- Page 15 Part 3. Operation Instructions Product Overview Model: RCE-VULCAN30-BL 1. 1800W Cooking Zone 2. 1200W Cooking Zone 3. Glass plate 4. Control panel Control Panel 1. Cooking Zone selection button 2. Timer control button 3. Child Lock control button 4. Stop & Resume control button 5.
- Page 16 Model: RCE-VULCAN40-BL 1.1800W Ceramic Zone 2. 2200/1100W Ceramic Dual Zone 3. Ceramic Glass 4. Control panel of cooking zone#1 5. Timer control 6. Control panel of cooking zone#2 Control Panel 1. Extended zone control button 2. Stop & Resume control button “-”...
- Page 17 Model: RIH-VELOCE44-BL 1. 2000W booster 2200W induction Zone 2. 2000W booster 2200W induction Zone 3. Ceramic Glass 4. Control panel of cooking zone#1 5. Control panel of cooking zone#2 Control Panel Booster function control button 2. Stop & Resume control button 3.
- Page 18 Model: RIH-VELOCE58-BL 1. 1500W Cooking Zone 2. 2000W Cooking Zone 3. 2300W Cooking Zone 4. Glass plate 5. Control panel Control Panel 1. Cooking zone/timer Icon Stop & Resume control button 3. Heating level/Timer “-”/ “+”button 4. Child Lock control button 5.
- Page 19 Model: RCH-VALIDO44-BL 1. 2000W booster 2200W induction Zone 2. 2200/1000W Ceramic Dual Zone 3. Ceramic Glass 4. Control panel of cooking zone#1 5. Control panel of cooking zone#2 Control Panel Induction Hob Ceramic Hob Booster/Extend zone control button 2. Stop & Resume control button 3.
- Page 20 Model: RIH-VELOCE35-BL 1. 2000W Cooking Zone 2. 1500W Cooking Zone 3. Glass plate 4. Control panel Control Panel 1. Cooking Zone selection button 2. Heating level/Timer “-” button 3. Heating level/Timer “+” button 4. Child Lock control button 5. ON/OFF button Stop &...
- Page 21 Model: RCE-VULCAN44-BL 1. 2200/1100W Ceramic Dual Zone 2. 2200/1100W Ceramic Dual Zone 3. Ceramic Glass 4. Control panel of cooking zone#1 5. Control panel of cooking zone#2 Control Panel 1. Extended zone control button 2. Stop & Resume control button 3.
- Page 22 Model: RCE-VULCAN52-BL 1. 1200W Cooking Zone 2. 1800W Cooking Zone 3. 2200W/1100W Dual Cooking Zone 4. Glass plate 5. Control panel Control Panel 1. Extended zone control button 2. Cooking Zone selection button 3. Timer control button 4. Child Lock control button 5.
- Page 23 Model: RCH-VALIDO53-BL 1. 1300W booster 1500W induction Zone 2. 1800W booster 2000W induction Zone 3. 2200W/1100W ceramic Zone 4. Ceramic Glass 5. Control panel Control Panel 1. Booster/ Extended zone control button 2. Cooking Zone selection button 3. Child Lock control button 4.
- Page 24 Before using your New Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your new electric hob. Using the Touch Controls • The controls respond to touch, so you don’t need to apply any pressure. •...
- Page 25 Using your Hob To start cooking 1. After the hob connected to electricity and power on. Press and hold the ON/OFF control button for about 3 seconds till you hear a “beep” to turn the hob on. Now the hob enters into Standby mode, all heat setting indicators and Timer setting indicators lit up.
- Page 26 To turn off hob 1. You can turn the cooking zone off by adjust heat setting to level 0, which indicator shows “-“. 2. You can also turn the whole hob off by touching the ON/OFF control button. Note: If there is power cut off during cooking, all setting will be cancelled. Note: The cooling fan of induction hob will remain on for about 1 minute after the hob turned off.
- Page 27 more touching of the button , hob restarts where they were, to carry on cooking. 1. Active Stop & Resume function To active Stop & Resume function, you can press the Stop & Resume function button once. Then all programmer setting be hold on and hob stop heating, all heat setting indicators show “P”.
- Page 28 2. Then adjust Minute Minder setting follows below: • Set timer setting by touching the button. • If press and hold either of the two buttons, the value will adjust down or up rapidly in circle. 2)for model RIH-VELOCE58-BL, set timer by touching the button of timer control.
- Page 29 NOTE: The red dot next to power level indicator will illuminate for those zones be set with timer. You can check timer setting of different cooking zone which set with timer, by active this cooking zone. NOTE: If more than one heating zone has timer setting, the timer indicator will show the lowest time.
- Page 30 Over-flow Protection For your safety, the programme will auto shut off the power if boiling liquid or wet cloth over touch control panel. All control buttons became invalid except ON/OFF and Child Lock button, unless you wipe the touch control area dry. Cooking Guidelines Take care when frying as the oil and fat heat up quickly, especially if you are using Booster function.
- Page 31 5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving. For stir-frying 1. Choose a ceramic compatible flat-based wok or a large frying pan. 2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
- Page 32 Part 4. Cleaning and Maintenance Cleaning and Maintenance Important: Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from ELECTRICITY supply and ensure the appliances is completely cool. Cleaning the Hob Surface Clean spillages from the hob surface as soon as possible after use. Always ensure the surface is cool enough before cleaning.
- Page 33 Hints and Tips What? How? Important! Everyday 1. Switch off the power • When the hob is turned off, soiling on supply. there will be no ‘hot surface’ glass 2. Apply a vitro-ceramic indication but the cooking (fingerprints, glass cleaner while the zone may still be hot! Take marks, stains glass is still warm (but...
- Page 34 Maintenance of the Hob If there is something goes wrong for your hob, before contact customer service, please check the below: 1. There is no power to the appliance: - Check whether there is a power cut of your hob; - Check whether the appliance be connected to electricity properly;...
- Page 35 Failure Inspection for induction hob If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes: Problem Possible causes What to do E1/E2 Abnormal supply voltage Please check whether power supply is normal, Power on after the power supply is normal.
- Page 37 FOR TEMPERED GLASS OF GAS HOB ONLY Scan to go registration site directly!
