Carrier INFINITY KIT63000 Installation Instructions

Replacement power supply kit for gapab infinity air purifier

Download this manual

KIT63000

Replacement Power Supply Kit for

GAPAB Infinity

NOTE:

Read the entire instruction manual before starting the install.

Improper installation, adjustment, alteration, service, maintenance, or use can cause explosion, fire, electrical shock, or other conditions

which may cause personal injury or property damage.

Follow all safety codes. Wear safety glasses and work gloves. Have a fire extinguisher available. Read these instructions thoroughly

and follow all warnings or cautions attached to the unit.

It is important to recognize safety information. This is the safety-alert symbol

instructions or manual, be alert to the potential for personal injury. Understand the signal words DANGER, WARNING, and

CAUTION. These words are used with the safety-alert symbol. DANGER identifies the most serious hazards which will result in

severe personal injury or death. WARNING signifies hazards which could result in personal injury or death. CAUTION is used to

identify unsafe practices may result in personal injury or product and property damage. NOTE is used to highlight suggestions which

will result in enhanced installation, reliability or operation.

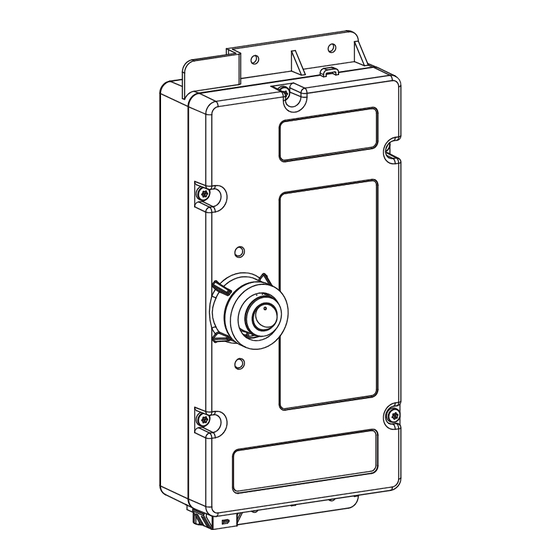

Power Supply Module (x1)

Air Purifier

Installation Instructions

Alcohol Swab (x1)

Splice Insulation Tape (x2)

Butt Connector (x1)

¼" Quick Disconnect

Terminal (x1)

. When you see this symbol on the unit and in

Installation Manual (x1)

Air Flow Bypass Plug (x1)

Page 1: Installation Instructions
KIT63000 Replacement Power Supply Kit for GAPAB Infinity Air Purifier Installation Instructions NOTE: Read the entire instruction manual before starting the install. SAFETY CONSIDERATIONS: Improper installation, adjustment, alteration, service, maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause personal injury or property damage.
Page 2 2: Remove the air purifier door (Fig. 1). Disconnect the power cord and air flow sensor cables from the power supply module (Fig. 2). 3: Remove the filter and enhancement module from the air purifier cabinet (Fig. 3) and place on a flat surface in a well lit area.
Page 3 8: Remove the power supply module from the enhancement module by unscrewing the four Phillips head screws (Fig. 9). You are now ready to install the new power supply. INSTALLING THE NEW POWER SUPPLY: 1: Strip the red and black replacement power supply wires ¼”...
Page 4 6: Crimp the butt connector to the severed media cartridge enhancement grid wire (Fig. 13). Please note that the grid wires will typically be black. 7: Crimp the opposite side of the butt connector to the black replacement power supply wire (Fig. 14). Fig. 13...
