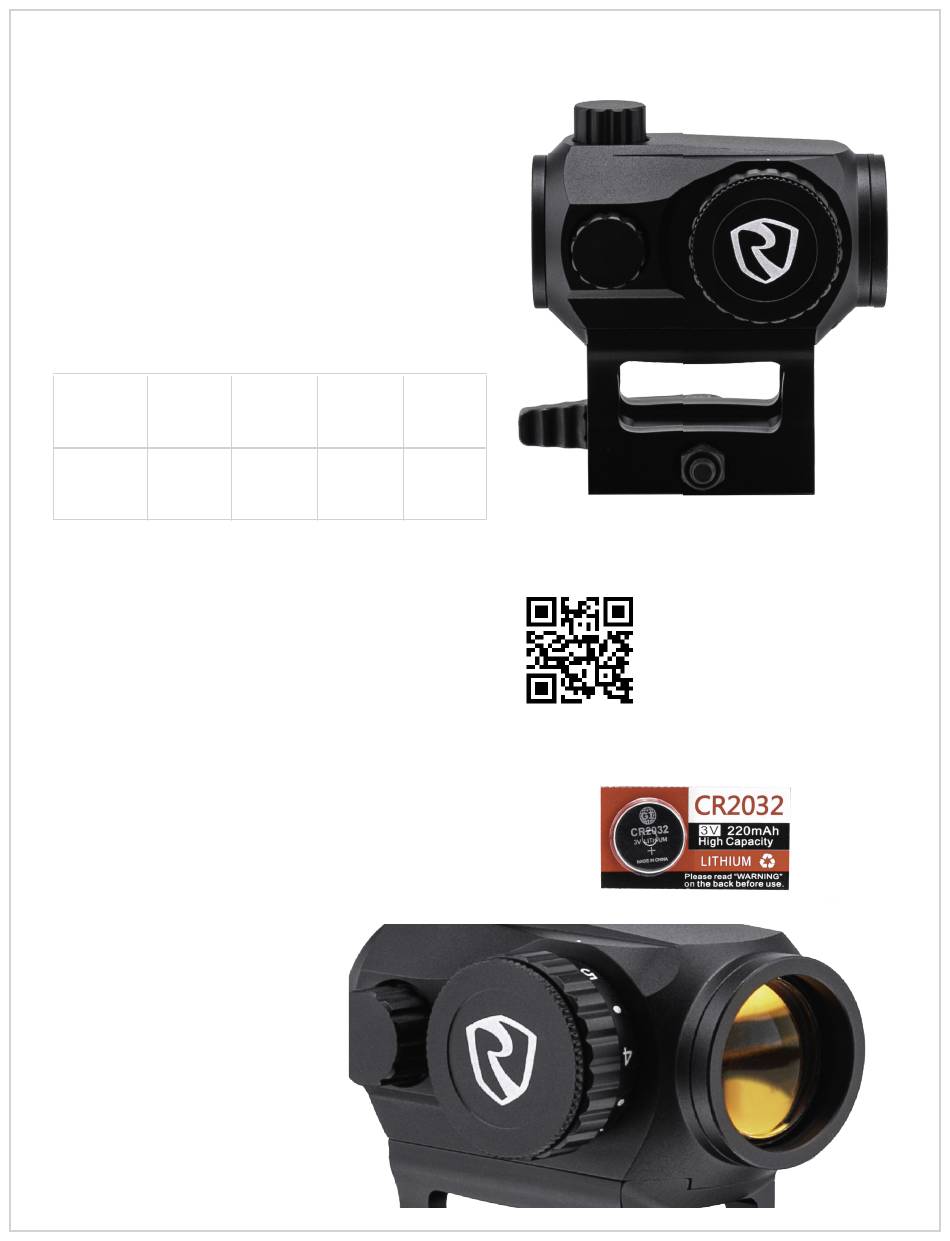

Illumination System - Riton 1 TACTIX Manual

EXPLANATION OF MINUTE OF ANGLE (MOA)
MOA unit of arc measurements are based on degrees and minutes. There
are 360 degrees in a circle and 60 minutes in a degree for a total of 21,600
minutes (MOA) in a circle. A minute of angle will subtend 1.05 inches at a
distance of 100 yards.
ADJUSTING YOUR RED DOT
Use the chart's below to determine the clicks needed to adjust your point of
impact.
BASED ON 1 MOA ADJUSTMENTS
25 YARDS 50 YARDS
.25 IN .50 IN
*Graduations can be calculated at additional distances beyond 200 yds.

ILLUMINATION SYSTEM

The variable intensity reticle illumination system aids in low light
situations.
TO ACTIVAT E T H E I L LUMI N AT I O N :
Rotate the adjustment knob in either direction. There are six levels of
brightness with off positons between each brightness setting.
TO C H A N GE T H E BAT T E RY
Unscrew the outer cap located on the illumination/parallax knob, then
replace with a new CR2032 Battery.
100 YARDS 150 YARDS 200 YARDS
1 IN 1.5 IN 2 IN
For more information on MOA and MRAD,
scan the QR code above for an in depth
video from Riton University
5
