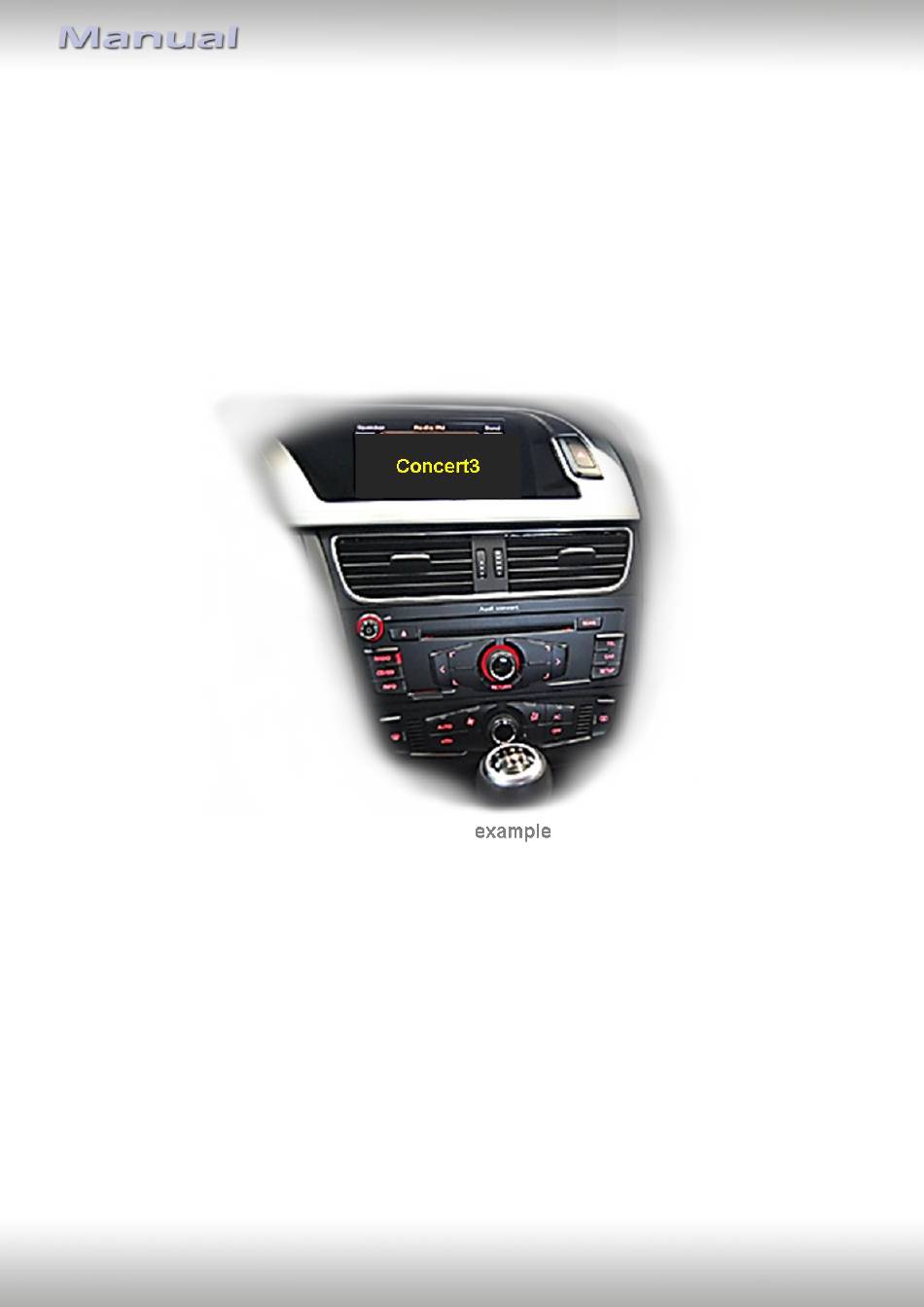

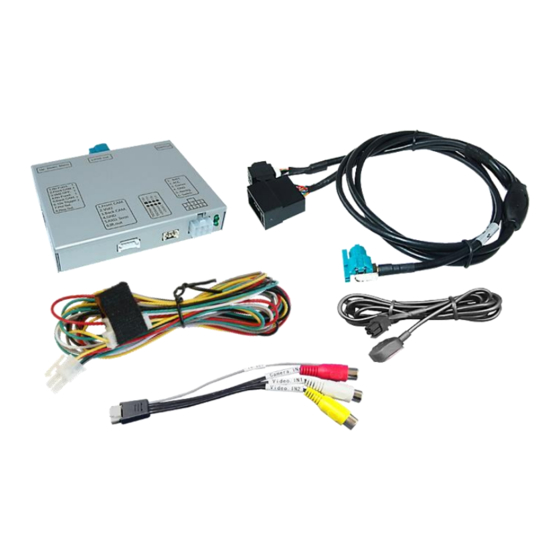

Compatible with Audi vehicles with
Symphony3-or Concert Radio3 system
Video-inserter for one rear-view camera
Product features
• Video-inserter for factory-infotainment systems
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
• 1 CVBS Rear-view camera video-input
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Activatable parking guide lines for rear-view camera (not available on all vehicles)
• Video-in-motion in drive mode (ONLY for connected video-sources)
• Video inputs NTSC and PAL compatible
Version 05.01.2022
Video-inserter
RL1-CONCERT
and 6.5inch touch-monitor
and two additional video inputs
HW: CAM(V31)/(V35))
RL2-CONCERT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RL1-CONCERT3 and is the answer not in the manual?

Questions and answers

Related Manuals for NavLinkz RL1-CONCERT3

Summary of Contents for NavLinkz RL1-CONCERT3

  • Page 1 Video-inserter RL1-CONCERT Compatible with Audi vehicles with Symphony3-or Concert Radio3 system and 6.5inch touch-monitor Video-inserter for one rear-view camera and two additional video inputs Product features • Video-inserter for factory-infotainment systems • 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner) •...

  • Page 2: Table Of Contents

    Contents 1. Prior to installation 1.1. Delivery contents 1.2. Verification – interface compatibility to vehicle and accessories 1.3. Connectors – video interface 1.4. Dip-switch settings – video interface 1.4.1. Enabling the interface’s video inputs (dip 2-3) 1.4.2. Rear-view camera setting (dip 5) 1.4.3.

  • Page 3: Prior To Installation

    Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. This product should only be used while standing or to display fixed menus or rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades.

  • Page 4: Verification - Interface Compatibility To Vehicle And Accessories

    1.2. Verification – interface compatibility to vehicle and accessories Compatibility Brand Compatible vehicles infotainment systems A4 (8K) from 09/2007 til 08/2015 Symphony3- or Concert3-radio systems Audi A5 (8T) from 06/2007 til 06/2016 with 6.5” monitor Q5 (8R) from 11/2008 til 12/2016 Limitations Video only The interface inserts ONLY video signals into the infotainment.

  • Page 5: Connectors - Video Interface

    1.3. Connectors – video interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface.

  • Page 6: Enabling The Interface's Video Inputs (Dip 2-3)

    1.4.1. Enabling the interface’s video inputs (dip 2-3) Only the enabled video inputs can be accessed when switching through the interface’s video sources. It is recommended to enable only the required inputs, disabled inputs will be skipped when switching through the video-interfaces inputs. 1.4.2.

  • Page 7: Connection Schema

    2.2. Connection schema Version 05.01.2022 HW: CAM(V31)/(V35)) RL2-CONCERT...

  • Page 8: Connection - Picture Signal Cable

    2.3. Connection - 6pin interface cable Connect the white female 6pin connector of the 6pin interface cable to the male 6pin connector of the video interface. Connect the green wire of the 6pin interface cable to +12V of the reverse gear signal. (e.g.
  • Page 9 Remove the female 10pin connector from the rearside of the monitor and connect it to the male 10pin connector of the picture signal cable. Connect the female 10pin connector of the picture signal cable to the previously become free male 10pin connector at the rearside of the monitor. Connect the picture signal cable’s female waterblue colored HSD+2 connector to the HSD+2 connector of the video interface.

  • Page 10: Connection - Video Sources

    2.5. Connection - video sources It is possible to connect one after-market rear-view camera and two more video sources to the video-interface. Note: Before the final installation, we recommend a test-run to ensure the compatibility of the vehicle and the interface. Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility.

  • Page 11: After-Market Rear-View Camera

    2.5.1. After-market rear-view camera Note: Do not forget to set dip5 of video-interface to ON before testing. To switch to the rear-view camera when reverse gear is engaged, an external switching signal from the reverse gear light is required. As the reverse gear light signal contains electronic interference, a traditional open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g.

  • Page 12: Audio-Insertion

    2.5.2. Audio Insertion This interface can only insert video signals into the factory infotainment. If an AV-source is connected, audio insertion must be done by factory audio AUX input or FM-modulator. The inserted video-signal can be activated simultaneously to each audio-mode of the factory infotainment.
  • Page 13 2.7. Picture settings The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU button to open the OSD settings menu or to switch to the next menu item. Press UP and DOWN changes the selected value. The buttons are embedded in the housing to avoid accidental changes during or after the installation.

  • Page 14: Switching The Video Sources

    3. Switching the video sources Der externe Taster kann zur Umschaltung der aktivierten Eingänge verwendet werden. Durch einen langen Druck (2-3 Sekunden) wird zum nächsten aktivierten Video Eingang gewechselt. Wenn alle Eingänge aktiviert sind, ist die Reihenfolge: → → → →...

  • Page 15: Specifications

    4. Specifications BATT/ACC range 7V - 25V Stand-by power drain 45mA Power consumption 200mA Video input 0.7V - 1V Video input formats NTSC / PAL Temperature range -40°C to +85°C Dimensions video-box 113 x 22 x 115 mm (W x H x D) Version 05.01.2022 HW: CAM(V31)/(V35)) RL2-CONCERT...
  • Page 16 FAQ – Trouble shooting Interface functions For any troubles which may occur, check the following table for a solution before requesting support from your vendor. Symptom Reason Possible solution Not all connectors have been reconnected to factory head- Connect missing connectors. unit or monitor after installation.

  • Page 17: Technical Support

    6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
