- Page 1 INSTRUMENT GUIDE rbr-global.com...
-
Page 2: Table Of Contents
Physical specifications..................4 Sensor specifications ..................5 PAR sensor (LI-COR) connector ................9 MCBH and DB9 connectors................10 RS-232 cables ....................10 Maintenance....................... 11 Cable maintenance ..................11 DO sensor (OxyGuard) care and maintenance ..........12 Calibration......................13 Repairs ........................ 1 3 Revision history....................1 3 RBR#0008817revC... -
Page 3: Rbrcoda³

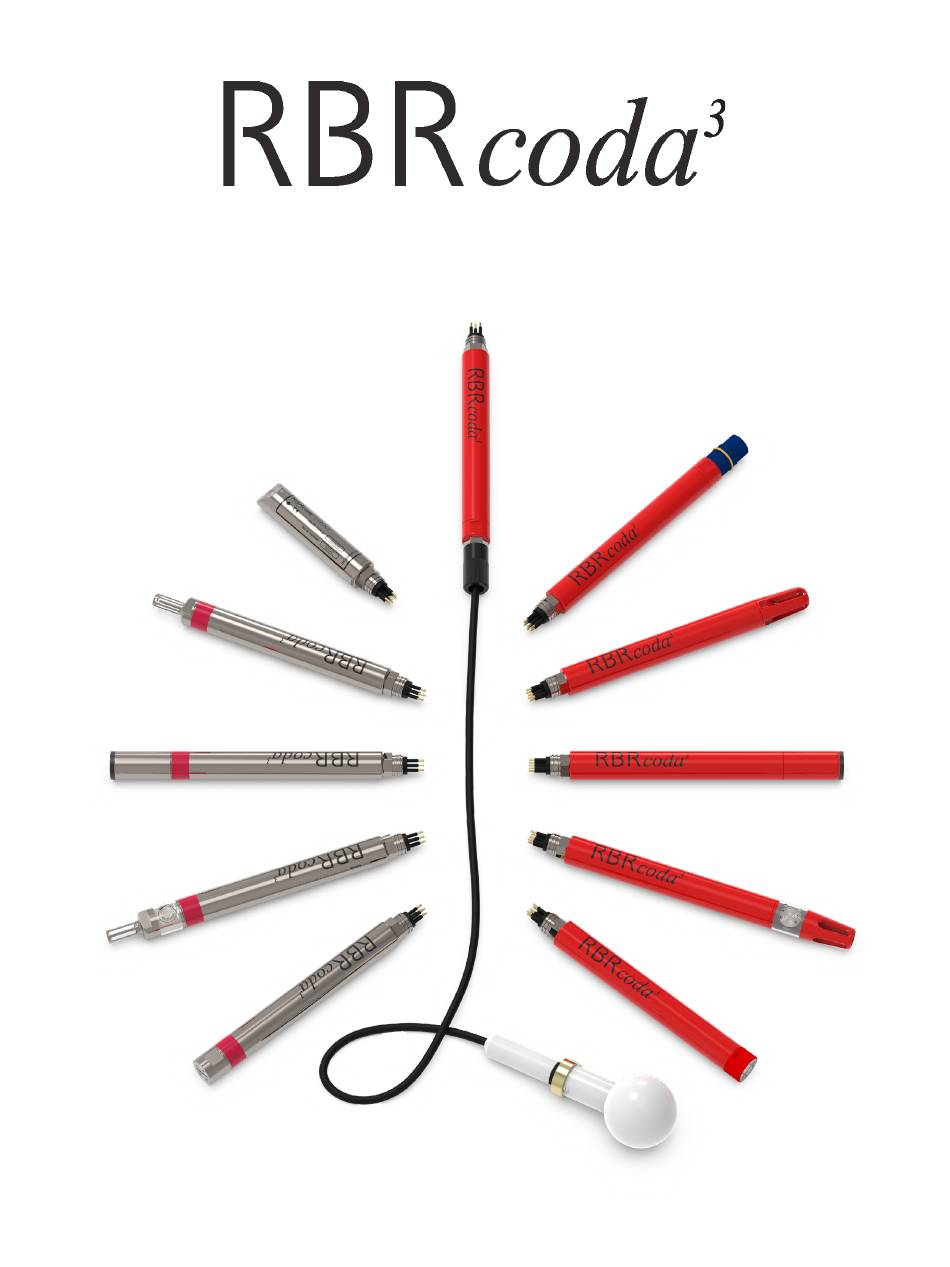

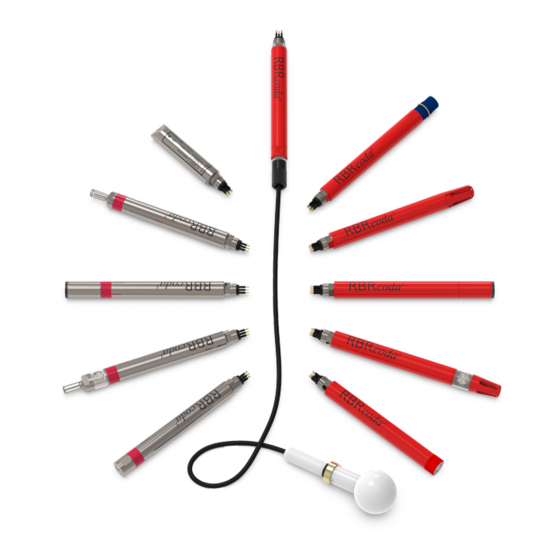

These realtime streaming sensors are easy to integrate into any RBR multi- parameter instrument, or connect directly via RS-232. ... -
Page 4: Specifications
390g in air, 280g in water 6000m RBRcoda³ PAR (LI-COR), cosine ~25mm ~300mm, 460g in air, 240g in water 560m RBRcoda³ PAR (LI-COR), spherical cable 0.6m 400g in air, 100g in water 350m *Total length of the instrument, including the connector. RBR#0008817revC... -
Page 5: Sensor Specifications
Temperature sensor Parameter Value Range* -5°C to 35°C Initial accuracy ±0.002°C Resolution <0.00005°C Typical stability ±0.002°C / year Time constant ~0.1s |fast, ~1s standard, ~15s | slow *A wider temperature range is available upon request. Contact for more information. RBR#0008817revC... - Page 6 * Dark offset is internally temperature-compensated. ±3nm Accuracy ** Out-of-band rejection and resolution are wavelength (for FWHM) dependent for narrow-band radiometers. *** RBR calibrates radiometers with NIST traceable Full scale range 0 to 400µW/cm /nm (minimum) references. Initial offset error* ±0.010µW/cm²/nm...
- Page 7 Optical dissolved oxygen sensor Parameter Value Calibrated range (concentration) 0-500µM Calibrated range (saturation) 0-120% Calibrated range (temperature) 1.5ºC to 30ºC Initial accuracy Maximum of ±8µM or ±5% Resolution <1µM (saturation 0.4%) Time constant ~1s (|fast), ~8s (standard), ~30s (|slow) RBR#0008817revC...
- Page 8 PAR sensor (LI-COR) The RBR coda PAR (LI-COR®) instruments use cabled cosine (one hemisphere, LI-192) or spherical (omnidirectional, LI-193) PAR sensors. Cosine PAR sensor (LI-COR) Spherical PAR sensor (LI-COR) Parameter Value 400 to 700nm Wavelength range Calibrated range 0 to 10000µmol/m...
-
Page 9: Par Sensor (Li-Cor) Connector
The sensor is ready for deployment. Ensure proper orientation of the yellow mark and the tab before each deployment. Inverted connection of your PAR sensor will result in incorrect or lost data. RBR#0008817revC... -
Page 10: Mcbh And Db9 Connectors
The RBRcoda sensors use RS-232 patch cables to connect to power supplies and computers. Patch cables and underwater extension cables are sold separately and not included with the sensors. Refer to the RBR Cable Guide contact our support team for the list of available cables. ... -
Page 11: Maintenance
3 Maintenance 3.1 Cable maintenance Cable bend radius The smallest bend radius for RBR supplied cables is 15cm. Lubricating the connectors Lubrication improves watertight sealing, prevents corrosion, and reduces the force required to de-mate the connector. Use the silicone compound provided with your instrument. -
Page 12: Do Sensor (Oxyguard) Care And Maintenance
3.2 DO sensor (OxyGuard) care and maintenance Storage Store the OxyGuard dissolved oxygen sensor in the dedicated storage cap to minimize fluid loss. Storage caps are provided with the instrument. Contact RBR if a replacement is needed. Storage cap O-ring The red O-ring of the OxyGuard sensor serves two... -
Page 13: Calibration
RBR recommends calibrating your instrument before any critical deployment, periodically once a year, or if you suspect the readings to be out of specifications. Discuss your calibration requirements with RBR. In some cases, the instrument will need to be returned to RBR to have it checked and re-calibrated.
