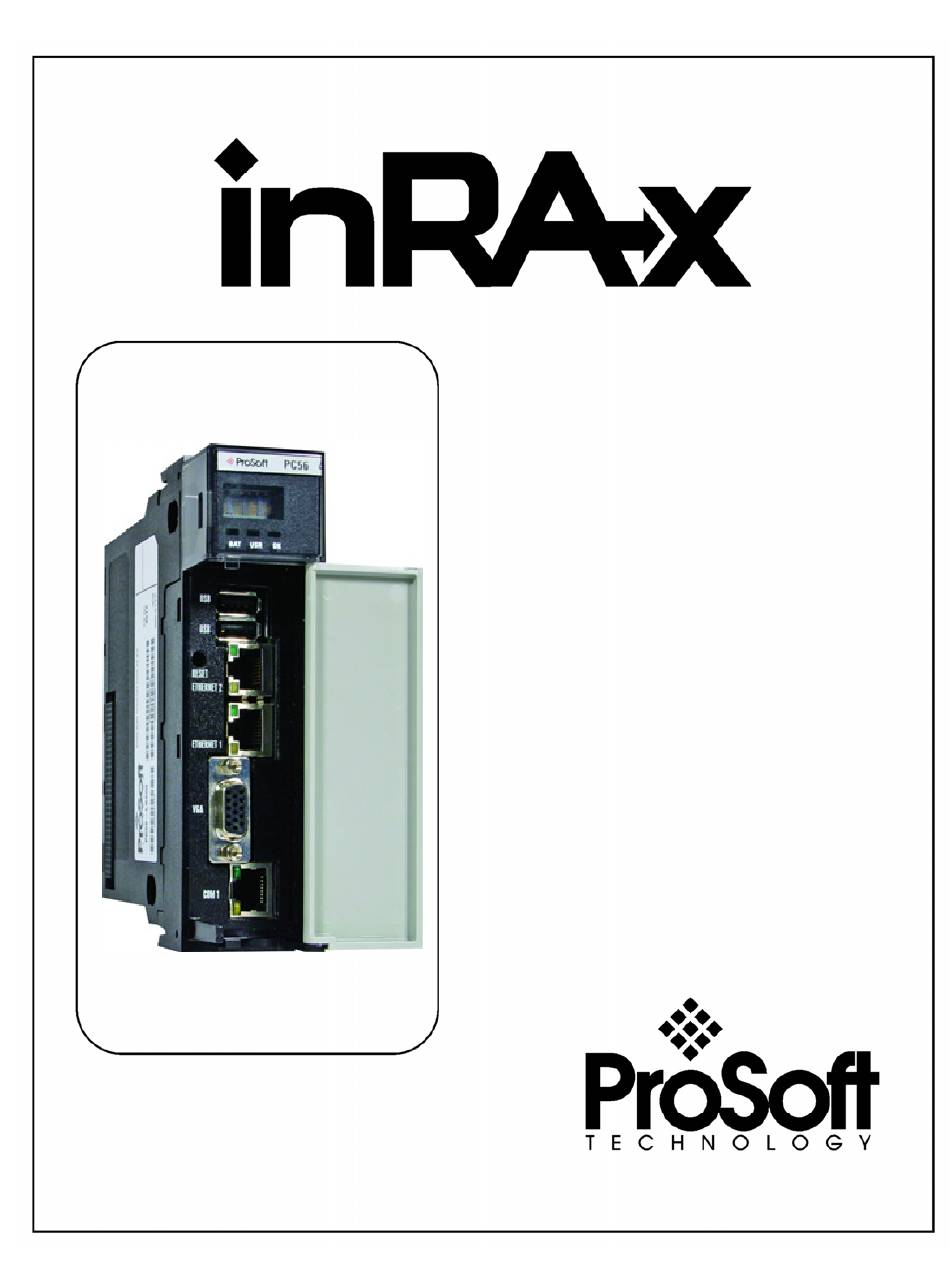

- Page 1 PC56 ControlLogix Platform In-Rack Industrial PC User Manual January 28, 2008...
-
Page 2: Please Read This Notice
Information in this manual is subject to change without notice and does not represent a commitment on the part of ProSoft Technology Improvements and/or changes in this manual or the product may be made at any time. These changes will be made periodically to correct technical inaccuracies or typographical errors. -
Page 3: Your Feedback Please
+1 (661) 716-5101 (Fax) http://www.prosoft-technology.com Copyright © ProSoft Technology, Inc. 2000 - 2008. All Rights Reserved. PC56 User Manual January 28, 2008 PSFT...UM.08.01.28 ProSoft Technology ®, ProLinx ®, inRAx ®, ProTalk® and RadioLinx ® are Registered Trademarks of ProSoft Technology, Inc. -
Page 5: Table Of Contents
Un-repairable Units........................26 7.3.2 Purchasing Warranty Extension ....................27 7.4 LIMITED WARRANTY ......................27 7.4.1 What Is Covered By This Warranty ................... 27 7.4.2 What Is Not Covered By This Warranty..................28 ProSoft Technology, Inc. Page 5 of 33 January 28, 2008... - Page 6 PC56 ♦ ControlLogix Platform Contents In-Rack Industrial PC 7.4.3 DISCLAIMER REGARDING HIGH RISK ACTIVITIES .............. 29 7.4.4 DISCLAIMER OF ALL OTHER WARRANTIES................. 29 7.4.5 LIMITATION OF REMEDIES**....................29 7.4.6 Time Limit for Bringing Suit ....................... 29 7.4.7 No Other Warranties ......................... 30 7.4.8 Intellectual Property........................
-
Page 7: Using This Manual
API manuals for the various operating systems. The "Windows API Users Manual" comes on a CD packaged with each PC56. Each PC56 component ships with installation instructions. The user manuals and installation instructions are also available from the ProSoft Technology web site at http://www.prosoft-technology.com. ProSoft Technology, Inc. -
Page 8: Reference Material
82C54 Timer Clock 14 MHz - Interrupt Interval 1.67619 US Video 1920 x 1440 1280 x 1024 256 1024 x 768 56K 800 x 600 16 M 43 Hz Interlaced 56 through 85 Hz Refresh Rates Page 8 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 9: Environmental Specifications
Windows XP Windows CE 5.0 1.3.4 Engineering Support Prosoft Technology. can provide additional technical support to ease and expedite the development and implementation of applications on the PC56. This support is available by ordering the PC56 Developer's Support Kit. Contact ProSoft Technology for additional information. - Page 10 PC56 ♦ ControlLogix Platform Using This Manual In-Rack Industrial PC Page 10 of 33 ProSoft Technology, Inc. January 28, 2008...
-
Page 11: Introducing Pc56
ControlLogix back plane. Included with each PC56 are the APIs necessary to develop application code for a variety of Operating Systems. Currently supported Operating Systems include Windows CE and XP. ProSoft Technology, Inc. Page 11 of 33 January 28, 2008... -
Page 12: Features And Benefits
BIOS during the boot process. The CPU board houses the processor, the PCI chipset and connector and the Ethernet chipset. These components are most likely to change with new advances in component technology. Page 12 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 13: Compatibility Issues
In each PC56 package there is a CD with the Windows APIs and its manual. There is also example code included as well as source code for common tasks. Refer to the API manual for information. ProSoft Technology, Inc. Page 13 of 33 January 28, 2008... - Page 14 PC56 ♦ ControlLogix Platform Introducing PC56 In-Rack Industrial PC Page 14 of 33 ProSoft Technology, Inc. January 28, 2008...
-
Page 15: Installing Pc56
Look at the three jumper settings: COM1 port mode setting Battery Enable/CMOS Clear ControlLogix™ Backplane shared memory allocation Setting Jumpers There are three jumpers to set, as your application requires. 3.1.1 Battery Enable/ CMOS Clear ProSoft Technology, Inc. Page 15 of 33 January 28, 2008... -
Page 16: Battery Enable
The PC56 will go through a POST routine that will check RAM and when complete will set the OK LED to GREEN. All other LEDs will be blank or OFF, unless your application sets them. Page 16 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 17: Reset, Auxiliary Timers And Pci Information
The PCI configuration space contains the addresses allocated to the shared RAM of the ControlLogix interface circuitry and the SRAM as well as other PCI relevant addresses. The Vendor ID = 167Ch and Device ID = 0001h. ProSoft Technology, Inc. Page 17 of 33 January 28, 2008... -
Page 18: Four Character Alpha-Numeric Display
PC56 has two high speed Universal Serial Bus 2.0 (USB) ports for connection to a variety of USB devices. USB device drivers are normally provided by the USB device manufacturer. Page 18 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 19: Troubleshooting
ControlLogix backplane it will be set to RED. This LED is under program and API control. It is sometimes referred to as the status LED. Refer to your application and the API manual for information. ProSoft Technology, Inc. Page 19 of 33 January 28, 2008... - Page 20 PCI peripheral module should be installed to match its corresponding physical slot location. Question: What is the maximum number of peripheral PCI modules I can plug onto PC56? Answer: Three unless otherwise specified. Page 20 of 33 ProSoft Technology, Inc. January 28, 2008...
-
Page 21: Reference
0F0000 to 0FFFFF System BIOS 0100000 to 07FFFFFF 1 to 128 System Extended Memory Mbyte 080000000 to 2 GByte to Used to map memory windows requested by PCI peripherals 0C0000000 3 GByte ProSoft Technology, Inc. Page 21 of 33 January 28, 2008... - Page 22 PC56 ♦ ControlLogix Platform Reference In-Rack Industrial PC Page 22 of 33 ProSoft Technology, Inc. January 28, 2008...
-
Page 23: Support, Service & Warranty
Internet E-mail address: support@prosoft-technology.com Those of us at ProSoft Technology, Inc. want to provide the best and quickest support possible, so before calling please have the following information available. You may wish to fax this information to us prior to calling. -
Page 24: How To Contact Us: Sales And Support
Support, Service & Warranty In-Rack Industrial PC How to Contact Us: Sales and Support All ProSoft Technology Products are backed with full technical support. Contact our worldwide Technical Support team and Customer Service representatives directly by phone or email: USA / Latin America (excluding Brasil) (Office in California) -
Page 25: Return Material Authorization (Rma) Policies And Conditions
ProSoft. The credit will only be issued provided the product is returned with a valid Return Material Authorization Number and in accordance with ProSoft's shipping instructions. ProSoft Technology, Inc. Page 25 of 33 January 28, 2008... -
Page 26: Procedures For Return Of Units Out Of Warranty
* 30% of list price is an estimated repair cost only. The actual cost of repairs will be determined when the module is received by ProSoft and evaluated for needed repairs. Page 26 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 27: Purchasing Warranty Extension
All replaced product and parts become the property of ProSoft. These remedies are the Customer's only remedies for breach of warranty. ProSoft Technology, Inc. Page 27 of 33 January 28, 2008... -
Page 28: What Is Not Covered By This Warranty
ProSoft, contains information protected by copyright. No part of the guide may be duplicated or reproduced in any form without prior written consent from ProSoft. Page 28 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 29: Disclaimer Regarding High Risk Activities
7.4.6 Time Limit for Bringing Suit Any action for breach of warranty must be commenced within 15 months (or in the case of RadioLinx modules, 39 months) following shipment of the Product. ProSoft Technology, Inc. Page 29 of 33 January 28, 2008... -
Page 30: No Other Warranties
Customer. This allocation is recognized by both parties and is reflected in the price of the goods. The Customer acknowledges that it has read this Warranty, understands it, and is bound by its Terms. Page 30 of 33 ProSoft Technology, Inc. January 28, 2008... -
Page 31: Controlling Law And Severability
Warranty shall remain in full force and effect. Any cause of action with respect to the Product or Services must be instituted in a court of competent jurisdiction in the State of California. ProSoft Technology, Inc. Page 31 of 33 January 28, 2008... - Page 32 PC56 ♦ ControlLogix Platform Support, Service & Warranty In-Rack Industrial PC Page 32 of 33 ProSoft Technology, Inc. January 28, 2008...
-
Page 33: Index
What Is Not Covered By This Warranty • 28 Who Should Use This Manual • 7 Key OEM Features • 12 Your Feedback Please • 3 LIMITATION OF REMEDIES** • 29 LIMITED WARRANTY • 27 ProSoft Technology, Inc. Page 33 of 33 January 28, 2008...
