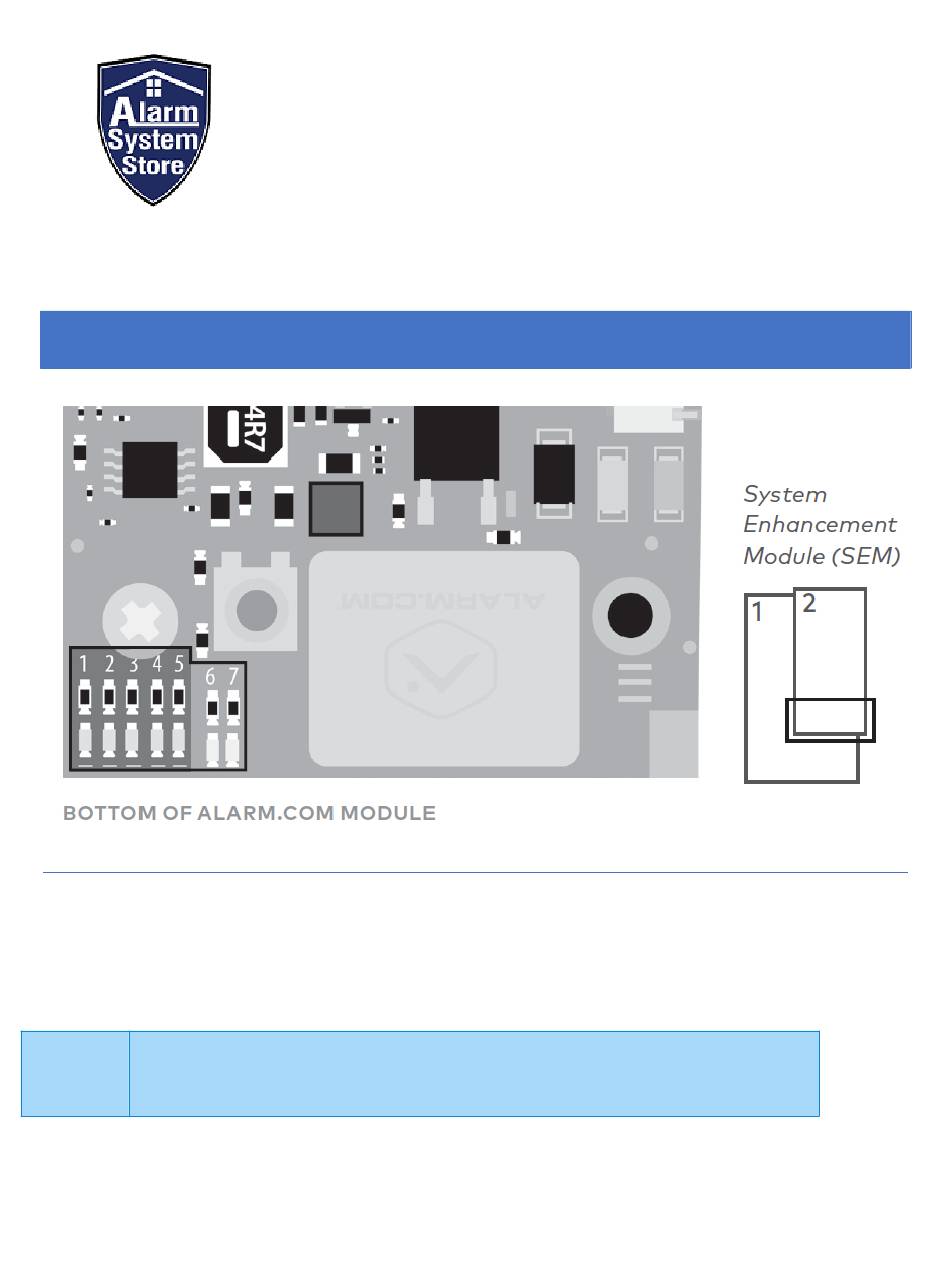

DUAL-PATH SEM-DSC POWERSERIES LEDS
The Alarm.com Module LEDs can be used to indicate communication errors, panel
communication, network communication, and signal strength.
LED
L1
General & Cellular Error LED
L1 flashes 1 to 8 times in a four-second interval to indicate

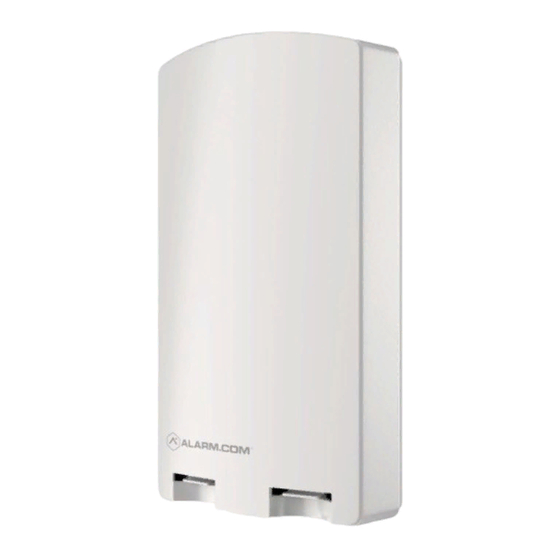

SEM210 TROUBLESHOOTING
GUIDE
GATEWAY LED REFERENCE
Function
Advertisement
Related Manuals for Alarm System SEM210
Summary of Contents for Alarm System SEM210
- Page 1 SEM210 TROUBLESHOOTING GUIDE GATEWAY LED REFERENCE DUAL-PATH SEM-DSC POWERSERIES LEDS The Alarm.com Module LEDs can be used to indicate communication errors, panel communication, network communication, and signal strength. Function General & Cellular Error LED L1 flashes 1 to 8 times in a four-second interval to indicate...
- Page 2 specific error conditions such as a network error, panel communication error, or radio error. Broadband & Panel communication LED L2 flashes every time the module communicates with the panel and flashes in patterns to indicate broadband troubles. Cell Radio LTE communication LED L3 flashes every time the cellular signal level is checked and when data packets are exchanged with Alarm.com and the LTE radio.
- Page 3 L1 flashes when an error is encountered. The number of flashes indicates the error number. If there are two or more errors at the same time, the errors flashes one after the other. The LED stays off for at least four seconds between errors. Note: It may take up to 10 minutes before L1 detects and flashes an error code.
-
Page 4: Led L2 (Yellow)
LED L2 (YELLOW) L2 flashes with every communication between the module and the panel and flashes in patterns to indicate broadband troubles. Normal pattern calls for a flash about every eight seconds. The following table describes the error flashes on L2. Number of Flashes Error and Solution Flashes for each communication with the panel. -
Page 5: Led L5 (Yellow)
In Connected mode, LED L4 toggles on and off. Important: Alarm.com recommends a steady signal level of two or higher for proper operation of the SEM. LED L5 (YELLOW) L5 indicates Z-Wave states and errors. If you can’t add a device to the network, try deleting the device and re-adding it to the network. - Page 6 Learn mode error (lasts The device was not successfully 60 seconds) added to the Z-Wave network. No node info No other nodes are in No devices have been added that the network (lasts until a can be controlled by the module device is added to the yet.
