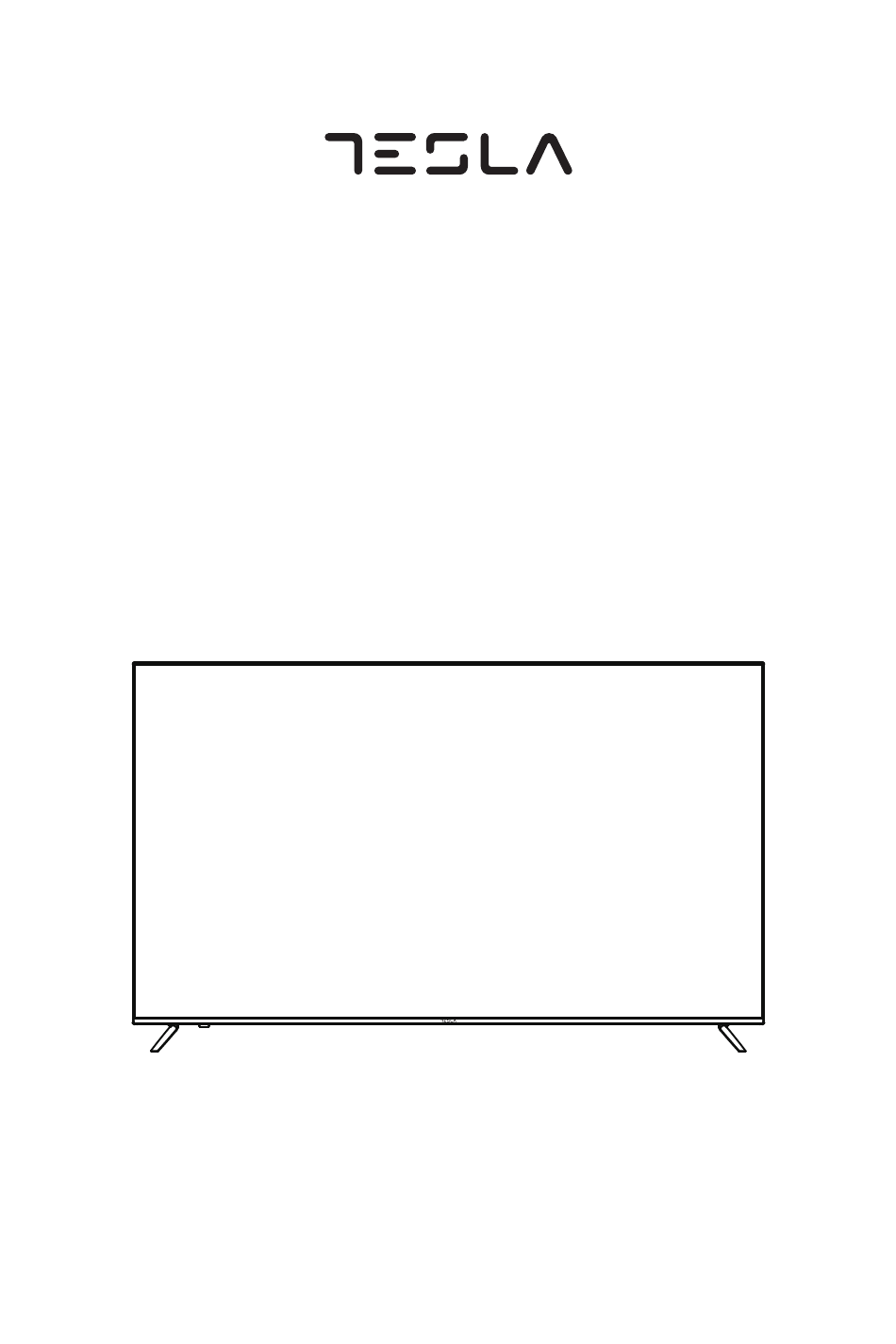

- Page 1 UHD SMART Android TV with ATSC CA65U22U CA70U22U CA75U22U UsrerManual...
-
Page 2: Table Of Contents
Contents Safety and warnings..................1-5 Introduction....................6 Installation....................7-10 Wall Mount ....................11 General Description..................12-14 External Connection..................15-17 Menu Operations...................18-25 Trouble Shooting...................26-27... -
Page 4: Safety And Warnings
SAFETY AND WARNINGS The lightning flash with arrowhead symbol within an CAUTION equilateral triangle is intended to alert the user to the RISK OF ELECTRIC SHOCK! presence of uninsulated “hazardous voltage” within the DO NOT OPEN! product’s enclosure, which may be of sufficient ATTENTION RISQUE DE CHOC ELECTRIQUE! magnitude to induce a risk of electric shock to persons. - Page 5 Important Safety Instructions 17) The apparatus should not be exposed to dripping 1) Read these instructions. or splashing, and no objects filled with liquids, such as vases, should be placed on the apparatus. 2) Keep these instructions. 18) No naked flame sources, such as lighted candles, 3) Heed all warnings.
- Page 6 WARNING 1) Stability Hazard The television set may fall, causing serious personal injury or death. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: •...
- Page 7 10) Unplug this TV from the power outlet and refer servicing to qualified service personnel under the following conditions: • When the power supply cord or plug is damaged or frayed. • If liquid has been spilled or objects have fallen into your TV.
- Page 8 Never stand on, lean on, or suddenly push the television or High voltages are used in the operation of this television its stand. You should pay special attention to children. receiver. Do not remove the cabinet back from your set. Serious injury may result if it falls.
-
Page 9: Introduction
INTRODUCTION Antenna Accessories Main features Wide screen for a complete home theater experience Infrared Remote Control....1 Super slim LCD TV with LED backlight User’ s M anual ....... 1 3840 x 2160 native resolution for UHD performance Battery(AAA) ........2 Integrated ATSC TV tuner for HDTV broadcast reception Beautiful color depth with a contrast ratio of 5000:1 Screws........... -
Page 10: Installation
INSTALLATION Front panel 75" 65"/70" ≤8m ≤8m 65"/70 Rocker " 75 Rocker " Bottom Bottom KEYBOARD 1. When the TV is turned on, press the local key for more than 3S to enter standby. 2. For the third-party application, main scene and USB, only the operations in 1) above are detected, and the following 3 operations are not executed;... - Page 11 INSTALLATION Antenna OUTDOOR OR INDOOR ANTENNA ADAPTER (NOT SUPPLIED) ( NOT SUPPLIED) PLUG 75Ω CABLE ANTENNA OR CABLE TV Note: Aerial connections:F connector. Input impendance:75 unbalanced. 70" 65" 75" Power connection Please note: After unpacking, allow the TV to reach ambient room temperature before connection the TV to the mains power socket.
- Page 12 INSTALLATION Base Stand Assembly Instruction The base stand Prepare to place the TV with the display side down on a flat surface. Due to the size and weight of this TV, the use of 2 people is recommended when moving it. Ensure the table or desk you use provides a flat, totally clean surface, and use a soft cloth between the face of the TV and the table to protect the TV's screen.
- Page 13 INSTALLATION AV Equipment You can use the rear input terminals as follows. HDMI VIDEO EQUIPMENT Note: It does not support headset with microphone, please plug in headphones only. HDMI Video Equipments: VCR, Multi Disc Player, DVD Player, Camcorder, Video Game, etc. -10-...
-
Page 14: Wall Mount
Wall Mount Instruction for Wall Mount A wall mount kit (purchased separately) would allow you to mount your TESLA TV on the wall. For detailed information on installing the wall mount, refer to the instructions provided by the wall mount manufacturer. It is strongly recommended to contact a technician for professional assistance for wall mount installation. -
Page 15: General Description
General Description General Description Installing Batteries in the Remote Control Installing Batteries Open the battery compartment cover on the back side. Insert two 1.5V AAA size batteries in correct polarity. Don´t mix old or used Point the remote towards the remote batteries with new ones. - Page 16 General Description Overview of remote control Loading batteries: 1) Remove the lid of the battery compartment. 2) Insert 2 size AAA batteries with polarities as indicated inside the compartment. 3) Replace the lid. Note: 1) A loading of batteries should be last one year under normal use. 2) If you don't intend to use the remote control for a long period of time, remove batteries to avoid damage due to leakage.
- Page 17 General Description Overview of remote control To set the TV to Standby or Power On modes. Open Input menu(TV, HDMI1,HDMI2,etc). Press to open NETFLIX. Press to open the YouTube. Press to open the Google Play store. Press to open the Prime Video. Press to select the CC mode To disable or enable the speaker sound output.
- Page 18 External Connection Connecting a Camcorder The rear panel jacks on your TV make it easy to connect a camcorder to your TV. They allow you to view the camcorder tapes without using a VCR. Each Camcorder has a different back panel configuration. When connecting a Camcorder or DVD, match the color of the connection terminal to the cable.
- Page 19 External Connection Connecting Digital Audio System This connection can only be made if there is a HDMI Output connector on the external device. HDMI Cable (Not supplied) What is HDMI? HDMI, or high-definition multimedia interface, is a next-generation interface that enables the transmission of digital audio and video signals using a single cable without compression.
- Page 20 External Connection Connecting PC The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV. The rear panel jacks on your TV make it easy to connect a Digital Audio System to your TV. Digital Audio System (Black) (Not included)
-
Page 21: Menu Operations
Menu Operations INITIAL SETUP The first you turn your TV,the setup wizard will guide you through setting up basic settings. Please according to the Text Tip to First Time Setup. Press to select the system language and press OK to confirm the language. Click “Accept”... - Page 22 Menu Operations Press to select the time zone you want and press OK to select ress OK to complete the setup For selecting the mode press key to select Home mode and press OK to confirm ress the OK to agree to Disclaime(Disclaimer). After setting is complete,You can watch TV.
- Page 23 Menu Operations INPUT SOURCE 1.In the HOME interface,press to select the “Inputs” icon,press OK to open the input source list,then press up to highlight an input and press OK to switch . Press button to select what you want set. INPUT 2.Under live TV press the...
- Page 24 Menu Operations CHANNEL ACCOUNTS&SIGN IN Press button to select Sign in or Skip. Select to set up your source. Channel Sources: Please follow the steps shown blow to search APPS for channels. In this menu,you can set the APP permissions,and read the app lists.
- Page 25 Menu Operations Power Off Timer Type: Press button to In this menu,you can read the information and settings select the option then press OK button to choose of TV. ON/OFF/ONCE. 1.Press button to select what you want set. 2.Press OK button to adjust. Auto Power Off Time: Press button to select the 3.After finishing your adjustment, Press BACK button...
- Page 26 Menu Operations POWER After connecting the HDMI device, click the Inputs icon at the Home Screen, you can see the name of the connected device. Switch to the HDMI input connected to the TV, press the MENU button on the remote control, select Settings->Device Preferences->...
- Page 27 Menu Operations Reset to Default Reset all settings to the factory STORAGE defaults. SOUND Internal shared storage : Press button to select the option then press OK button to enter the sub-menu. Removeable Storage : Press button to select the option then press OK button to enter the sub-menu.(Note:Show external devices if available) HOME SCREEN...
- Page 28 Menu Operations GOOGLE ASSISTANT Screen saver : Press button to select the option then press OK button to enter the sub-menu.(Optional: Turn screen off, Backdrop,Colors). When to Start Press button to select the option then press OK button to enter the sub-menu.(Optional: 5 minutes,15 minutes,30 minutes,1 hour,2 hours).
- Page 29 Menu Operations Audio Description Press / button to select 4.If the couldn’t pair appears, the connection the option then press OK button to choose ON/OFF. fails.Wait 30 seconds and then press the Visually Impaired Press / button to select the “...
-
Page 30: Troubleshooting
Troubleshooting If you have any problem, check the couter measures for each symptom listed below. The following symptoms may have been caused by inappropriate adjustment rather than actual malfunction of the unit. If the trouble persists, contact the Customer Care Centre, see back page for contact details Symptoms Possible solutions... - Page 31 Troubleshooting Check if the channel has been blocked in the main menu Channel cannot be settings. selected Please check connecting USB cable and power supply is connected. Hard drive has not been formatted. Please make USB not playing sure USB disk is compatible and the multimedia data formats are supported.
