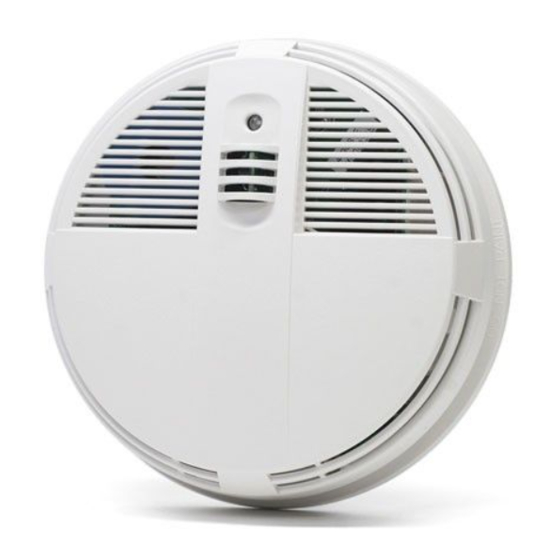

ESL 429/449 & 428/448 SERIES
Self-Diagnostic Photoelectric
Smoke Detectors
Installation Instructions
Part Number 14153
California State Fire Marshal Approved
MEA (New York City) Approved
U L
429/449
LISTED

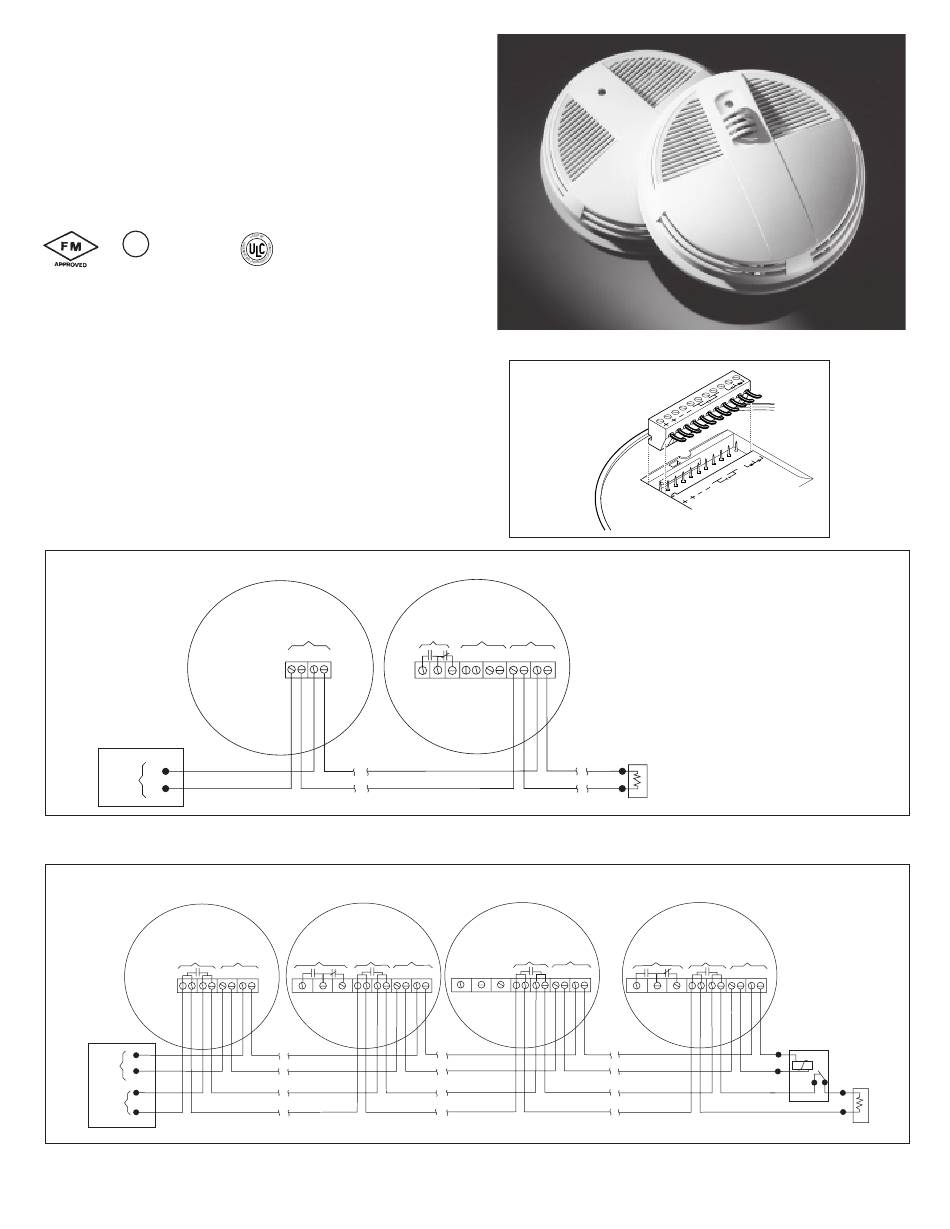

GENERAL DESCRIPTION

The ESL 429/449 and 428/448 Series low-profile, self-diagnostic, two-
and four-wire smoke detectors work on the light scattering principle. A
pulsed infrared light-emitting diode serves as the light source, and a
high-speed photo-diode as the sensing element. This design has
superior protection against false alarms caused by dust, insects, RF
and ambient-light.
These Series of smoke detectors are especially suited for residential
occupancies, including hotels, motels and dormitories, as well as other
commercial and industrial fire-system applications. This Series is
designed for 2-wire and 4-wire connection, respectively, to 6-24 V DC
fire alarm control panels, UL Listed for commercial or household fire
protection.
429 & 428 Series Wiring Diagram
Diagram 2
first
detector
COMPATIBLE
LISTED
CONTROL UNIT*
fire
alarm
+
initiating
circuit
449 & 448 Series Wiring Diagram
Diagram 3
models 449 & 448
AT, C, CT, CST, CSST
alarm
contact
first
detector
LISTED
CONTROL
UNIT
DC
+
power
circuit
fire
alarm
initiating
circuit
*448CSH and 448CSRH are smoke alarms.
428/448
models 429AT, 429C, 429CT,
429CST, 429CSST
power
-
-
+
+
models 449 & 448
CRT, CSRT, CLT, CSLT
auxiliary
contacts
(low temp output
alarm
power
CLT, SCLT)
contacts
-
-
-
+
+
firealarmresources.com
Plug-in terminal block
Diagram 1
model 429CRT
auxiliary
power
not used
contacts
-
-
+
+
detector
model 448CSH*
heat sensor
power
power
contacts
-
+
+
-
-
+

Two-Wire Compatibility

The ESL 429 Series two-wire, smoke detectors
last
offer the widest range of two-wire compatibility
in the industry. Refer to ESL's Compatibility
Index for compatible control panel listings.
END OF LINE
DEVICE
model 449 & 448*
CSRH
local non-
latching
heat sensor
smoke alarm
contacts
power
contacts
+
-
-
+
+
black
brown
last
detector
red
POWER
SUPERVISION
UNIT
brown

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 429 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel
