USER MANUAL

PREMIUM TRAIL CAMERA

SKU: AKEP-TRAILCAM02

Table of Contents

Need help?

Do you have a question about the AKEP-TRAILCAM02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kings Adventure AKEP-TRAILCAM02

Page 1 USER MANUAL PREMIUM TRAIL CAMERA SKU: AKEP-TRAILCAM02...
Page 2: Table Of Contents
CONTENTS 1. GENERAL INFORMATION 1.1 Introduction 1.2 Main Features 1.3 Application 1.4 Illustration 2. QUICK START 2.1 Batteries 2.2 Insert TF Card 2.3 Enter “SET” Mode 2.4 Enter Live Mode 3. ADVANCED SETTINGS 3.1 Parameter Settings 3.2 File Format 4. APPENDIX I 4.1 Technical Specification 5.
Page 3: General Information
1. GENERAL INFORMATION 1.1 INTRODUCTION The Trail Camera (also called Scouting/hunting camera) is as counting device. It can be triggered by sudden change of ambient temperature caused by any movement of human (or animals) in ascertain region of interested (ROI), which is detected by a high sensitive Passive Infra-Red (PIR) sensor,and then captures high quality pictures or records HD video clips automatically.
Page 4: Illustration

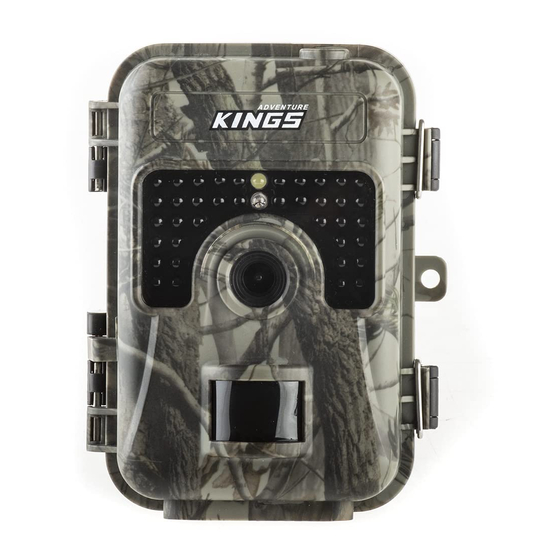

1.4 ILLUSTRATION • Figure 1-1 shows the front view of the camera. • Figure 1-2 shows the bottom and the side view of the camera. • Figure 1-3 shows the back view of the camera. • Figure 1-4 shows the inside view of the camera. 2.
Page 5: Insert Tf Card
2.2 INSERT TF CARD The camera does not come with internal memory. So it will not work without a TF memory card. Before inserting the TF card into the card slot, The supported memory capacity is up to 128GB. If you use a card capable of above 128GB, make sure it has been test before putting the camera in use.
Page 6: Advanced Settings
3. ADVANCED SETTINGS The trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure that the camera is in the SET mode. 3.1 PARAMETER SETTINGS Press “MENU” key to enter/exit the menu. Press “UP/DOWN” key to move the marker, press “Enter” key to confirm the change.
Page 7: File Format
lf set On, the camera will automatically take photos/videos according to the set interval, regardless of whether the PIR sensor has detected any game. Password set This is helpful when observing cold-blooded animals like snakes, or the process of flowering, etc Password set Set up a password to protect your camera from unauthorized users.
Page 8: Technical Specification
4. APPENDIX I 4.1 TECHNICAL SPECIFICATION Model Parameters Image Sensor 4 Mega Pixels color CMOS Max.Pixel Size 6144x3456 Lens F=1.8;FOV=90°; IR-Cut LCD Screen 2.0 inch TFT color screen Keypad 6 Keys, 1 Switch Memory TF Card (8~128GB) Picture Size 20MP; 16MP; 12MP; 8MP; 5MP; 3MP; 1MP 3840x2160@10fps;...
Page 9: Warranty
5. WARRANTY 12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
