Summary of Contents for A&D UN-019
- Page 1 Compressor Nebulizer Model UN-019 Instruction Manual Original Manuel d’instructions Traduction Manual de Instrucciones Traducción Manuale di Istruzioni Traduzione Bedienungsanleitung Übersetzung 1WMPD4004706...
-
Page 3: Table Of Contents
CONTENTS 1. DEAR CUSTOMERS ..............Page 2 2. PRELIMINARY REMARKS ............Page 2 3. SYMBOLS ................... Page 2 4. IMPORTANT SAFEGUARDS ............. Page 3 5. INTRODUCTION ................. Page 5 6. SPECIFICATIONS ..............Page 5 7. PARTS IDENTIFICATION ............Page 6 8. -
Page 4: Dear Customers

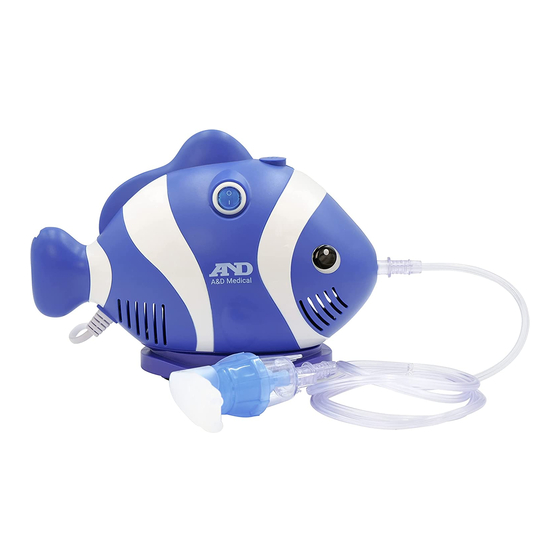

1. DEAR CUSTOMERS Thank you for purchasing the UN-019 Compressor Nebulizer. This device is a compact medical device designed to deliver the medication prescribed by your doctor. The compressor creates a stream of air that travels through the clear tubing to... -
Page 5: Important Safeguards
4. IMPORTANT SAFEGUARDS CAUTION: Federal Law restricts the sale or use of this device to an order by a physician. Follow the instructions of your physician when operating this device. This device is a nebulizer for the inhalation of medical aerosols and is suitable for solutions used by children. - Page 6 WARNING: Risk of burns, electrocution, fire or injury Electrical Shock Hazard: Do not remove the cabinet or open the cover. Disconnect the power cord from the electrical outlet before cleaning or servicing. Do not place this device near hot, sparking or burning objects. Do not use oil or grease on or near this device.
-
Page 7: Introduction
5. INTRODUCTION This compressor nebulizer is designed to deliver a prescribed medication solution to treat patient respiratory disorders, such as asthma, allergies and bronchitis. The device converts the medication solution into an aerosolized mist which is inhaled by the patient through the mouthpiece or nosepiece or mask. -
Page 8: Parts Identification
7. PARTS IDENTIFICATION 1. Main unit 6. Air tube 2. Adult mask 7. Nebulizer cup 3. Child mask 8. Air filters 4. Mouthpiece 9. Instruction manual 5. Nosepiece 10. Carrying pouch Filter cover Power switch (" ":ON, " ":OFF) Air outlet connector (Plug shape) C-plug: UN-019A-EC1B, BF-plug: UN-019A-EC2B Replacement parts list Appearance... -
Page 9: Operating Instructions
8. OPERATING INSTRUCTIONS Place the device on a stable, sturdy and flat surface so that the device can be easily reached when you are seated. Make sure that the device is in the "Off" (O) position by pressing on the upper side of switch. -
Page 10: Cleaning
9. CLEANING Turn the power off and unplug from the wall outlet. Remove the air tube from the air inlet connectors. TO CLEAN: Remove the mouthpiece, nosepiece, mask, and disassemble the nebulizer cup (cup, cap, and baffle), and wash these items in hot water with dish-washing detergent. -
Page 11: Troubleshooting
11. TROUBLESHOOTING Check the following if the device should fail during operation. You can also refer to the pages of this manual for complete instructions. Problem Cause Remedy Nothing happens The power cord is not Check that the plug is inserted in when the power connected correctly to the an electrical outlet. -
Page 12: Technical Data
12. TECHNICAL DATA Particle Size: **MMAD * approximately 3 um Appropriate Medication Quantities: 2 ml minimum – 6 ml maximum Nebulization rate: 0.33 ml/min (by weight loss) Aerosol Output: **0.33 ml (2 ml, 1%NaF) Aerosol Output Rate: **0.06 ml/min (2ml, 1%NaF) Result of cascade impactor **measurements for particle size MMAD = Mass Median Aerodynamic Diameter 13. - Page 13 Table 1 - EMISSION Limits - Phenomenon Compliance Conducted and radiated RF EMISSION CISPR 11 Group 1 Class B Harmonic distortion IEC 61000-3-2 Class A Voltage fluctuations and flicker IEC 61000-3-3 Compliance Table 2 - IMMUNITY TEST LEVELS : Enclosure Port - Phenomenon IMMUNITY TEST LEVELS Electrostatic discharge...
- Page 14 Table 4 - Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment - IMMUNITY Test Maximum Band Distance TEST Service Modulation power frequency (MHz) LEVEL (MHz) (V/m) Pulse 380 - 390 TETRA 400 modulation 18 Hz GMRS 460 ±5 kHz 430 - 470 FRS 460...
-
Page 15: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)
14. CORRECT DISPOSAL OF THIS PRODUCT (WASTE ELECTRICAL & ELECTRONIC EQUIPMENT) This marking shown on this product and its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. - Page 16 MEMO English 14...
- Page 17 A&D Company, Ltd. 1-243 Asahi , Kitamoto-shi, Saitama 364-8585, JAPAN Telephone: [81] (48) 593-1111 Fax: [81] (48) 593-1119 Shenzhen Bi-rich Medical Devices Co.Ltd, The 1st Building of No. 10, Xinqiao GangZai Road, Xinqiao Street, Bao'An District ,518125, Shenzhen City,Guangdong Province, P. R. China SUNGO Cert GmbH Lindenstraße 48-52, 40233 Dusseldorf, Germany A&D INSTRUMENTS LIMITED...
