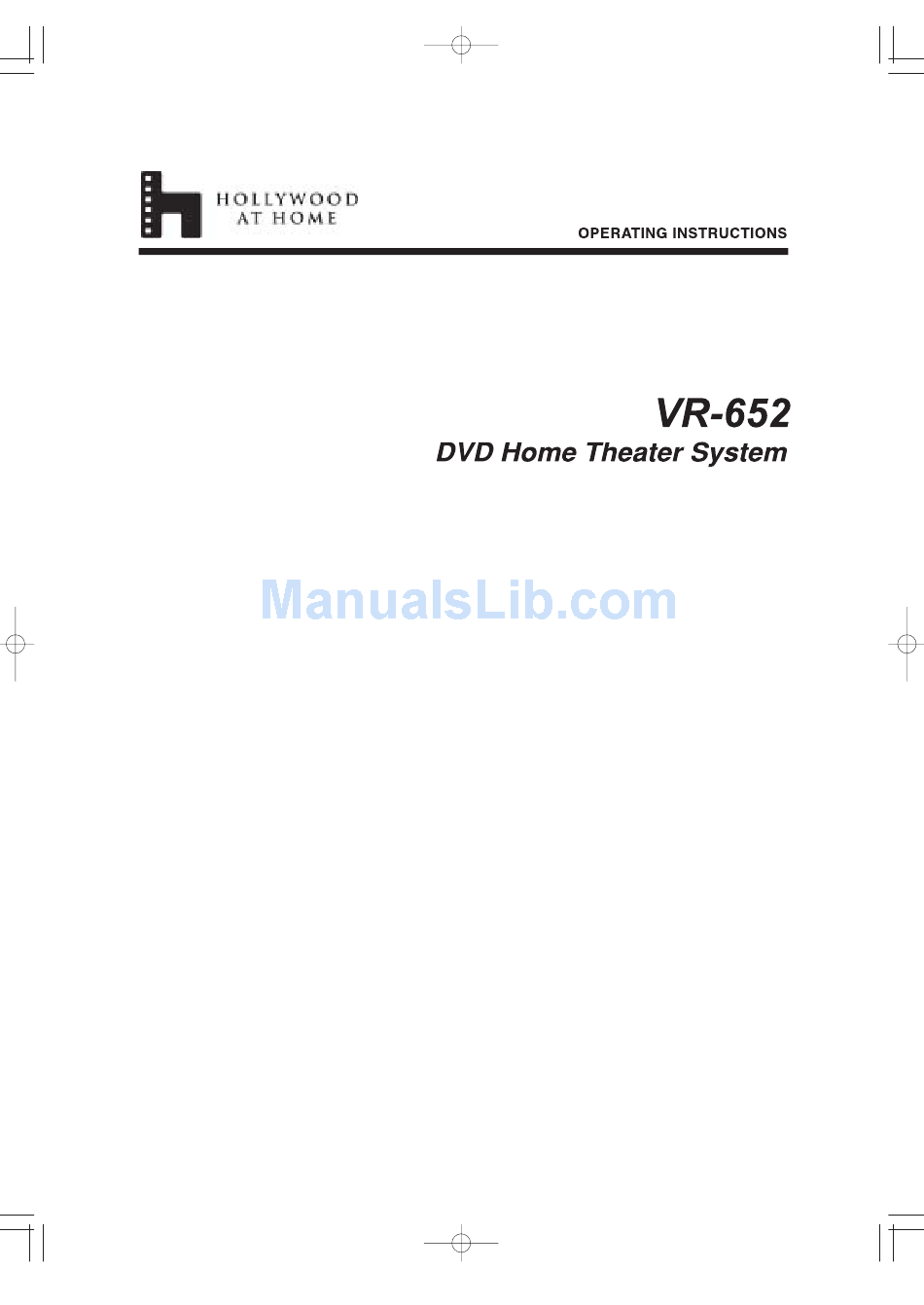

Hollywood VR-652 Operating Instructions Manual

Dvd home theater system
Hide thumbs
Table of Contents

Advertisement

Quick Links

VR-652(A) 2008.3.6 5:32 PM 페이지 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR-652 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hollywood VR-652

  • Page 1 VR-652(A) 2008.3.6 5:32 PM 페이지 1...

  • Page 2: Important Safety Instructions

    VR-652(A) 2008.3.6 5:32 PM 페이지 2 IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings.

  • Page 3: Introduction

    VR-652(A) 2008.3.6 5:32 PM 페이지 3 Introduction READ THIS BEFORE OPERATING YOUR UNIT : TO REDUCE THE RISK OF ELECTRIC CAUTION SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 4 VR-652(A) 2008.3.6 5:32 PM 페이지 4 FOR YOUR SAFETY Units shipped to the U.S.A and CANADA are designed for operation on 120 V AC only. Safety precaution with use of a polarized AC plug. However, some products may be supplied with a nonpolarized plug.

  • Page 5: Table Of Contents

    VR-652(A) 2008.3.6 5:32 PM 페이지 5 CONTENTS • IMPORTANT SAFETY INSTRUCTIONS • Introduction READ THIS BEFORE OPERATING YOUR UNIT • System Connections • Controls & Displays FRONT PANEL CONTROLS UNIVERSAL REMOTE CONTROLS ENTERING A SETUP CODE OPERATING COMPONENTS WITH REMOTE CONTROL...

  • Page 6: System Connections

    System Connections • Do not plug the AC input cord into the wall AC outlet until all connections are completed. • Be sure to observe the color coding when connecting audio and video cords. • Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the unit. CONNECTING ANTENNAS •...
  • Page 7 VR-652(A) 2008.3.6 5:32 PM 페이지 7 CONNECTING AUDIO COMPONENT CONNECTING VIDEO COMPONENT • The AUX 1 jacks can be connected to an audio component such as a CD player, tape deck, etc. • The analog audio IN/OUT jacks may also be connected to audio recording equipment such as a tape deck, an MD recorder, etc.
  • Page 8 VR-652(A) 2008.3.6 5:32 PM 페이지 8 CONNECTING TV • There are three types of MONITOR OUTs (COMPONENT, S-VIDEO, ((composite) VIDEO). Connect them to the corresponding video jacks of your TV according to their capability. • For your reference, the excellence in picture quality is as follows : "COMPONENT"...
  • Page 9 VR-652(A) 2008.3.6 5:32 PM 페이지 9 CONNECTING SPEAKERS SPEAKER PLACEMENT AC INPUT CORD Plug this cord into a wall AC outlet. • Be sure to connect speakers firmly and correctly according to the channel (left and right) and the polarity (+ and -).

  • Page 10: Controls & Displays

    VR-652(A) 2008.3.6 5:32 PM 페이지 10 Controls & DIsplays FRONT PANEL CONTROLS 1. PHONES jack 2. POWER ON/STANDBY button/indicator 3. FRONT AUX jack For details, see next page. 4. USB connector For details, see next page. 5. REMOTE SENSOR 6. DISC TRAY 7.
  • Page 11 VR-652(A) 2008.3.6 5:32 PM 페이지 11 FLUORESCENT DISPLAY 1. PARENTAL CONTROL indicator 2. TIMER indicator 3. USB indicator 4. DVD indicator 5. CD indicator 6. DTS SIGNAL indicator 7. DOLBY DIGITAL SIGNAL indicator 8. SURROUND MODE indicators FRONT AUX JACK •...

  • Page 12: Universal Remote Controls

    VR-652(A) 2008.3.6 5:32 PM 페이지 12 UNIVERSAL REMOTE CONTROLS This universal remote control can operate not only this unit but also most popular brands of video components such as TVs, VCRs, cable boxes, satellite receivers, etc. • To operate 4 components other than this unit, you should enter the setup code for each component.

  • Page 13: Entering A Setup Code

    VR-652(A) 2008.3.6 5:32 PM 페이지 13 FUNCTION TABLE of the NUMBERED BUTTONS Notes : • Some functions for each component may not be available or may work differently. • Depending on other kinds of components that are available for each DEVICE button, some functions may not be available or may work differently, too.

  • Page 14: Operating Components With Remote Control

    VR-652(A) 2008.3.6 5:32 PM 페이지 14 OPERATING COMPONENTS WITH REMOTE CONTROL Enter the setup code for each component other than this unit you wish to control. (For details, refer to "ENTERING A SETUP CODE" on page 13.) Turn on the component you want to operate.

  • Page 15: Basic Operation

    VR-652(A) 2008.3.6 5:32 PM 페이지 15 Basic Operation Before operation • Before operating this unit with the supplied remote control, refer to "UNIVERSAL REMOTE CONTROLS" on page 12 for details about operation. LISTENING TO A PROGRAM SOURCE Turn the power on.
  • Page 16 VR-652(A) 2008.3.6 5:32 PM 페이지 16 Adjusting the channel level(/setting the FM mode) • The volume level of each channel can be adjusted as desired. Press and hold down the SETUP button for more than 2 seconds. • Then "Lch" is displayed for several seconds.

  • Page 17: Operation Of Dvd Player

    VR-652(A) 2008.3.6 5:32 PM 페이지 17 Operation of DVD player PRELIMINARY KNOWLEDGE ABOUT DISCS Playable disc types This unit supports the following discs. • This unit supports CD-R and CD-RW discs recorded in audio CD format or MP3/WMA/JPEG in accordance with the ISO9660 format.

  • Page 18: Audio And Video Files

    VR-652(A) 2008.3.6 5:32 PM 페이지 18 AUDIO AND VIDEO FILES • Folder and file names are displayed up to 8 characters. • A total of 512 folders and maximum of 2048 files can be supported. • Characters except "A~Z", "0~9", " - " may be not displayed.

  • Page 19: Definition Of Terms

    VR-652(A) 2008.3.6 5:32 PM 페이지 19 DEFINITION OF TERMS DVD Video The format for storing MPEG-2 video on DVD, with interactive menus, multiple soundtracks, subtitles, camera angles, and so on. MPEG(Moving Picture Expert Group) It is regarded as an international standard for compressing and restoring digital video and audio signal.
  • Page 20 VR-652(A) 2008.3.6 5:32 PM 페이지 20 Interlaced scan In the conventional video system, a picture is shown on the screen in two halves. The interlaced scanning system places lines of the second half of the picture in-between lines of the first half of the picture.

  • Page 21: Basic Playback

    VR-652(A) 2008.3.6 5:32 PM 페이지 21 Before starting playback • Make the initial settings to suit your usage conditions the very first time this unit is turned on.(For details, refer to "Initial Settings" on page 36.) • For explanation purposes, this instructions explains the OSD(On-Screen Display) language displayed on TV in English.
  • Page 22 VR-652(A) 2008.3.6 5:32 PM 페이지 22 Continued In case of CD, press the PLAY/PAUSE To start playback from the menu of DVD Video Press the CURSOR ▲/▼/◀/▶ buttons to select the preferred item and press the ENTER button (or PLAY /PAUSE (▶/ ) button).
  • Page 23 VR-652(A) 2008.3.6 5:32 PM 페이지 23 To play files from USB mass storage device • When connecting a USB mass storage device to this unit, you can enjoy MP3, WMA or JPEG files stored on it through this unit. Compatible USB mass storage device : •...
  • Page 24 VR-652(A) 2008.3.6 5:32 PM 페이지 24 To stop playback To pause playback Frame advance playback • During playback or in the still picture mode. To skip ahead or back during playback • To skip ahead • When playback of a DVD Video is stopped, the unit memorizes the point where the STOP( ) button was pressed (RESUME function: DVD Video only).

  • Page 25: Displaying Disc Information During Playback

    VR-652(A) 2008.3.6 5:32 PM 페이지 25 Rapid playback during playback • You can play back discs at various speeds. Slow playback during playback DISPLAYING DISC INFORMATION DURING PLAYBACK • The unit features the on-screen display function showing disc information. Press the DISPLAY button.

  • Page 26: Playing A Specific Item

    VR-652(A) 2008.3.6 5:32 PM 페이지 26 PLAYING A SPECIFIC ITEM When using a title menu • If some DVD Videos which contain more than one title may have the menu like as a list of the titles, the TITLE button can be used to select the desired title.

  • Page 27: Repeat Playback

    VR-652(A) 2008.3.6 5:32 PM 페이지 27 REPEAT PLAYBACK • You can play a current title, chapter, folder, track, file, disc or part repeatedly. Note: • Repeat playback may not work correctly with some discs. Repeating a disc, title, chapter, folder, track or file During playback of the desired title, chapter, folder, track or file, press the REPEAT button.

  • Page 28: Random Playback

    VR-652(A) 2008.3.6 5:32 PM 페이지 28 RANDOM PLAYBACK In the stop mode, press the RANDOM PLAY button. Start the random playback. PROGRAMMED PLAYBACK Playing tracks in desired order • Up to 21 tracks can be programmed to be played in any desired order.
  • Page 29 VR-652(A) 2008.3.6 5:32 PM 페이지 29 Continued Press the CURSOR ◀/▶ buttons to select the program menu and press the CURSOR ▲/▼ buttons to select ADD, then press the ENTER button. Repeat the above steps 2 and 3 until the desired tracks are programmed.
  • Page 30 VR-652(A) 2008.3.6 5:32 PM 페이지 30 Continued Press the CURSOR ◀/▶ buttons to select the program menu and press the CURSOR ▲/▼ buttons to select INSERT, then press the ENTER button. Clearing the programmed tracks [To clear one by one] When displaying the program menu, press the CURSOR ◀/▶...
  • Page 31 VR-652(A) 2008.3.6 5:32 PM 페이지 31 Continued Press the CURSOR ▲/▼ buttons to select the desired file, then press the DISPLAY button to enter the program mode. Press the CURSOR ▲/▼ buttons to select ADD TO PLT, then press the ENTER button.
  • Page 32 VR-652(A) 2008.3.6 5:32 PM 페이지 32 Continued Clearing the programmed files [To clear one by one] When displaying the PROGRAM LIST, press the CURSOR ▲/▼ buttons to select the file to be cleared, then press the DISPLAY button to enter the program mode.

  • Page 33: Changing The Audio Language

    VR-652(A) 2008.3.6 5:32 PM 페이지 33 CHANGING THE AUDIO LANGUAGE • It is possible to change the audio language to a different language from the one selected at the initial settings. (For details, refer to "SETTING THE LANGUAGE SETUP" on page 37.) This operation works only with DVD Videos on which multiple audio languages are recorded.

  • Page 34: Changing The Camera Angle

    VR-652(A) 2008.3.6 5:32 PM 페이지 34 CHANGING THE CAMERA ANGLE • Some DVD Videos contain scenes which have been shot simultaneously from multiple camera angles. For these discs, the same scene can be viewed from each of these different angles.

  • Page 35: Changing The Video Signal Format

    VR-652(A) 2008.3.6 5:32 PM 페이지 35 CHANGING THE VIDEO SIGNAL FORMAT • Depending on the countries, this unit conforms to either the NTSC color system for U.S.A, Canada, etc., or the PAL for Europe, Australia, China, etc. If the color system of this unit is different from that of your TV monitor and the discs to be played, the screen may be somewhat hard to see or the picture quality may be poor.

  • Page 36: Initial Settings

    VR-652(A) 2008.3.6 5:32 PM 페이지 36 Initial Settings The initial settings of the unit at the factory can be modified as desired later. Even after the power of the unit is switched to the standby mode, the initial settings are stored in memory until it is changed the next time.

  • Page 37: Setting The Language Setup

    VR-652(A) 2008.3.6 5:32 PM 페이지 37 SETTING THE LANGUAGE SETUP Item menu Note: • If the selected language is not recorded in the DVD Video, one of the recorded languages is automatically selected. Press the CURSOR ▲/▼ buttons to select the preferred item.

  • Page 38: Setting The Video Setup

    VR-652(A) 2008.3.6 5:32 PM 페이지 38 SETTING THE VIDEO SETUP Item menu Press the CURSOR ▲/▼ buttons to select the preferred item. When selecting the TV DISPLAY • When you connect a normal TV with 4:3 aspect ratio to this unit, select either 4:3 PAN-SCAN or 4:3 LETTER BOX and when you connect a wide TV with 16:9 aspect ratio, select 16:9 WIDE.
  • Page 39 VR-652(A) 2008.3.6 5:32 PM 페이지 39 Continued When selecting the SCAN TYPE • You can select the resolution of video signals to be output from the COMPONENT MONITOR OUTs depending on the TV connected to this unit. (For details on the resolution compatible with your TV, refer to the operating instructions of that.) Notes: •...

  • Page 40: Setting The Audio Setup

    VR-652(A) 2008.3.6 5:32 PM 페이지 40 SETTING THE AUDIO SETUP Item menu Press the CURSOR ▶ button to select the setting menu. Press the CURSOR ▲/▼ buttons to select the preferred setting, then press the ENTER button. Press the CURSOR ◀ button to select the item menu.

  • Page 41: Setting The Other Setup

    VR-652(A) 2008.3.6 5:32 PM 페이지 41 SETTING THE OTHER SETUP Item menu When selecting the CAPTIONS, ANGLE MARK, SCREEN SAVER Press the CURSOR ▲/▼ buttons to select the preferred item. When selecting the CAPTIONS When selecting the ANGLE MARK When selecting the SCREEN SAVER •...
  • Page 42 VR-652(A) 2008.3.6 5:32 PM 페이지 42 Continued Press the CURSOR ▶ button to select the setting menu. Press the CURSOR ▲/▼ buttons to select the preferred setting, then press the ENTER button. Press the CURSOR ◀ button to select the item menu.
  • Page 43 VR-652(A) 2008.3.6 5:32 PM 페이지 43 Continued Press the CURSOR ▶ button to select the level menu. Press the CURSOR ▲/▼ buttons to select the preferred level, then press the ENTER button. Input a 4-digit password with pressing the NUMERIC buttons, then press the ENTER button.
  • Page 44 VR-652(A) 2008.3.6 5:32 PM 페이지 44 Continued When selecting the PASSWORD Press the CURSOR ▲/▼ buttons to select the PASSWORD. Press the CURSOR ▶ buttons to select the CHANGE, then press the ENTER button. Input 4-digit passwords in sequence for old password, new password and confirmation, then press the ENTER button.
  • Page 45 VR-652(A) 2008.3.6 5:32 PM 페이지 45 Continued When selecting the DEFAULTS Press the CURSOR ▲/▼ buttons to select the DEFAULTS. Press the CURSOR ▶ button to select the setting menu, then press the ENTER button. Press the CURSOR ◀ button to select the item menu.

  • Page 46: Operation Of Tuner

    VR-652(A) 2008.3.6 5:32 PM 페이지 46 Operation of Tuner LISTENING TO RADIO BROADCASTS Note : • When selecting the FM, if FM stereo broadcasts are poor because of weak broadcast signals, you can set the FM mode to FM MONO to reduce the noise. (For details, refer to "Adjusting the channel level(/setting the FM mode)" on page 16.) Auto tuning Select the tuner.
  • Page 47 VR-652(A) 2008.3.6 5:32 PM 페이지 47 Presetting radio stations • You can store up to 40 preferred stations in the memory. Tune in the desired station with auto or manual tuning. Press the PROGRAM button. Select the desired preset number (01~40) and press the PROGRAM button.

  • Page 48: Operation Of Other Functions

    VR-652(A) 2008.3.6 5:32 PM 페이지 48 Operation of Other Functions RECORDING WITH VIDEO • Depending on whether the video recording equipment or the audio recording equipment is connected to the VIDEO jacks, you can record the video and audio signals or the audio signals only. (For details, refer to "CONNECTING VIDEO COMPONENT"...

  • Page 49: Setting The Clock

    VR-652(A) 2008.3.6 5:32 PM 페이지 49 SETTING THE CLOCK • In case of setting the clock for the first time, perform the setting procedure from the step 2. • In the standby mode, you can set the clock, too. In this case, perform it from the step 2.

  • Page 50: Operating The Timer

    VR-652(A) 2008.3.6 5:32 PM 페이지 50 OPERATING THE TIMER • Once the timer is set to on, it will operate at the preset time once or everyday. Before setting the timer • Make sure the clock has been set correctly. If not, when the TIMER button is pressed, "CLOCK ADJust" message is displayed and it will enter the clock setting mode.
  • Page 51 VR-652(A) 2008.3.6 5:32 PM 페이지 51 Continued While flickering the input source, press the CURSOR UP/DOWN (▲/▼) buttons to select the desired input source and press the ENTER button. • Each time the CURSOR UP/DOWN (▲/▼) buttons are pressed, DVD or TUNER is selected.

  • Page 52: Adjusting The Brightness Of The Display

    VR-652(A) 2008.3.6 5:32 PM 페이지 52 Continued When selecting DVD as an input source Make preparations for timer play. ① Load a DVD Video or a CD. ② In case of a DVD Video, start playback. Notes : • Timer function cannot play back MP3, WMA, JPEG disc or USB mass storage device.

  • Page 53: Troubleshooting Guide

    VR-652(A) 2008.3.6 5:32 PM 페이지 53 Troubleshooting Guide If a fault occurs, run through the table below before taking your system for repair. If the fault persists, attempt to solve it by switching the unit off and on again. If this fails to resolve the situation, consult your dealer.
  • Page 54 VR-652(A) 2008.3.6 5:32 PM 페이지 54 [TUNER SECTION] PROBLEM Stations cannot be • No antenna is connected. received • The desired station frequency is not tuned in. • The antenna is in wrong position. Preset stations cannot be • An incorrect station frequency has been received memorized.

  • Page 55: Specifications

    VR-652(A) 2008.3.6 5:32 PM 페이지 55 Specifications [AMPLIFIER SECTION] • Front power output, stereo mode, 6 Ω, THD 0.7 %, 20 Hz~20 kHz • Subwoofer power output, 4 Ω, THD 10 %, 20 Hz~200 Hz • Total harmonic distortion, 6 Ω, 25 W, 1 kHz •...
  • Page 56 VR-652(A) 2008.3.6 5:32 PM 페이지 56 [AM TUNER SECTION] • Tuning frequency range • Usable sensitivity | 562 µV/m • Signal to noise ratio | 40 dB • Selectivity | 25 dB [GENERAL] • Power supply | 120 V ~ 60 Hz •...

  • Page 57: Setup Code Table

    VR-652(A) 2008.3.6 5:32 PM 페이지 57 Setup Code Table Admiral Aiko Akai Alaron Ambassador America Action Ampro Anam Audiovox Baysonic Belcor Bell & Howell Bradford Brockwood Broksonic Candle Carnivale Carver Celebrity Cineral Citizen Concerto Contec Craig Crosley Crown Curtis Mathes...
  • Page 58 VR-652(A) 2008.3.6 5:32 PM 페이지 58 Pilot Pioneer Portland Prism Proscan Proton Pulsar Quasar Radio Shack Realistic Runco Sampo Samsung Samsux Sansei Sansui Sanyo Scimitsu Scotch Scott Sears Semivox Semp Sharp Sherwood Shogun Signature Sony Soundesign Squareview Starlite Supreme Sylvania...
  • Page 59 VR-652(A) 2008.3.6 5:32 PM 페이지 59 Headquarter Hitachi Jensen Kenwood Kodak Lloyd’s Logik MGN Technology Magnasonic Magnavox Magnin Marantz Marta Matsushita Memorex Minolta Mitsubishi Motorola Multitech Nikko Noblex Olympus Opimus Orion Panasonic Penny Pentax Philco Philips Pilot Pioneer Profitronic Proscan...
  • Page 60 VR-652(A) 2008.3.6 5:32 PM 페이지 60 Lloyds Megavox 016 (TV use 010) 004 (TV use 008) Magnin Memorex 028 (TV use 042) Mitsubishi 027 (TV use 041) Orion Panasonic 004 (TV use 008) 028 (TV use 042) Penney 004 (TV use 008) 023...
  • Page 61 VR-652(A) 2008.3.6 5:32 PM 페이지 61 Quasar Radio Shack Recoton Regal Regency Rembrandt Rodgers Runco Samsung Scientific Atlanta Seren Service Electric Shaw Sherwood Sigecom Signal Signature SL Marx Sony Sprucer Starcom Stargate Starquest Susquehanna Teleview Time Warner Tocom Toshiba Tusa...
  • Page 62 VR-652(A) 2008.3.6 5:32 PM 페이지 62...
