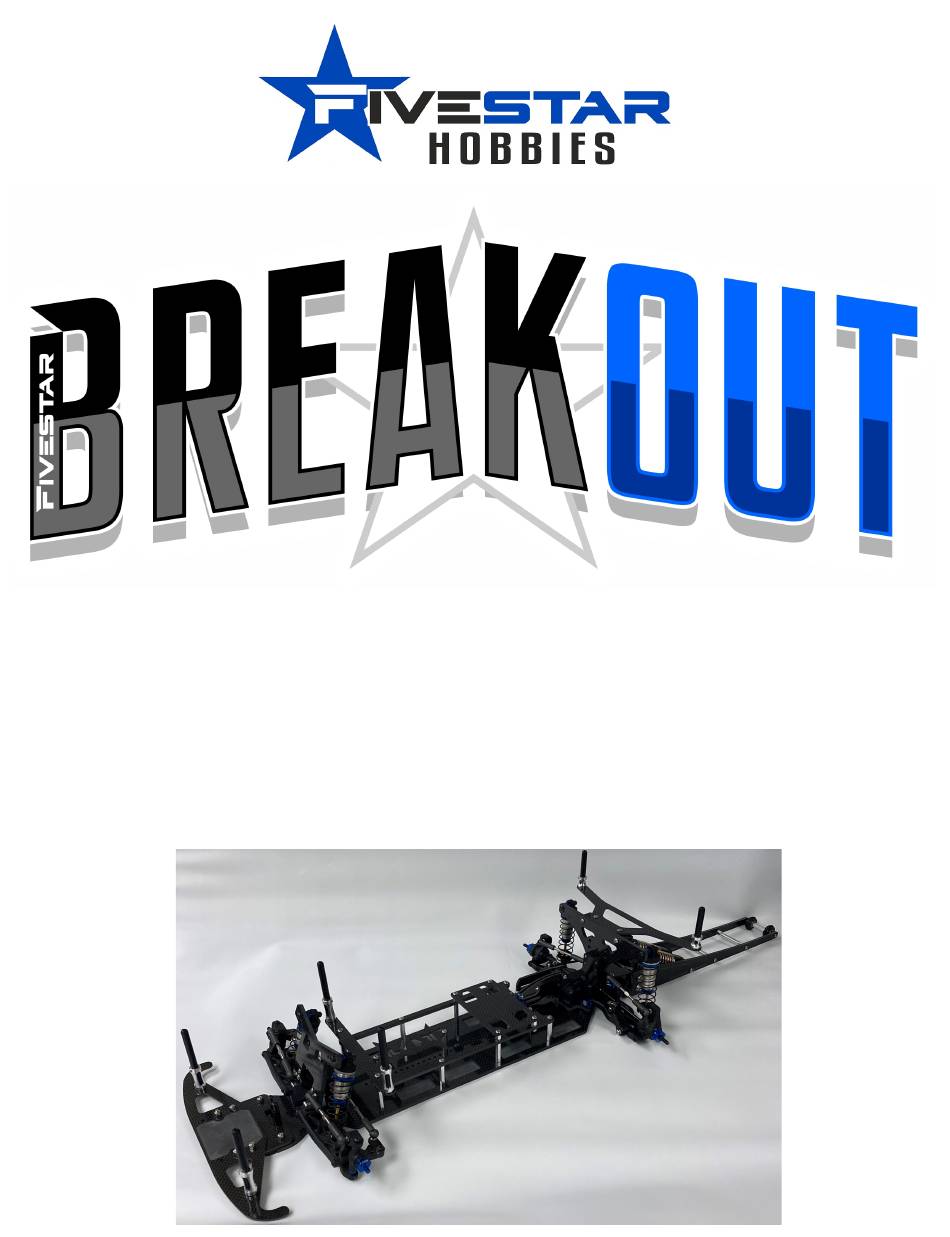

- Page 1 ASSEMBLY INSTRUCTIONS FOR AE B6.1, B6.2, B6.3 & RC10B6 BUILDERS KIT...
- Page 2 To Our Valued Customer: Thank you for your purchase from Five Star Hobbies. We are a small business with a goal to make high quality items that our customer can enjoy. The Breakout no prep kit has become wildly successful with the help of many when creating it. We also want to thank all of you, the customer, for believing in us and spending your hard earned money on our products.
-
Page 3: Description Of Product
To complete your Breakout build in "SLIDER" form, you will need the following items: PART NUMBER DESCRIPTION OF PRODUCT KIT61000 BREAKOUT KIT 90033 RC10B6 BUILDER'S SUPPORT KIT 91855 RC10B6.2 REAR SUSPENSION ARMS Popular items to change on your "SLIDER" are these items: DESCRIPTION OF PRODUCT PART NUMBER 91786... - Page 4 BAG 1 Part Number Description 61003 Front Bumper ‐ 2.5mm 61004 Front Mid Bumper ‐ 2.5mm 70218 2 5/8" threaded body post with 4‐40x1/4 BH 70220 Aluminum Body Post Holder long with set screws 4‐40x1/4in BH Body mount holders M3x10mm BH Mid Bumper to Front Bumper M3 Lock Nuts Mid Bumper to Front Bumper ATTACH FRONT BUMPER TO MID BUMPER USING THE M3X10MM SCREWS AND LOCK NUTS. THEN ATTACH THE ALUMINUM BODY POST HOLDERS TO THE FRONT BUMPER AS SHOWN IN THE PICTURE WITH THE 4‐40 SCREWS. INSERT THE BODY POSTS INTO THE HOLDERS AND TIGHTEN WITH THE SET SCREWS. BAG 2 Part Number Description 61002 Main Chassis Top Plate ‐ 4mm 25mm Stand Offs Attach to top plate in 6 of the 12 91719 Associated Servo Mount M3x6mm BH Associated Servo mount to Top Plate M3x10mm BH Top Plate to Stand Offs ATTACH THE 6 STAND OFFS TO THE LOCATIONS SHOWN IN THE PICTURES TO THE TOP CHASSIS PLATE USING THE M3X10MM SCREWS. ATTACH THE SERVO MOUNT WITH THE M3X6MM SCREWS.
- Page 5 BAG 3 Part Number Description 61021 ESC Tray 2.5mm M3x16mm BH To attach ESC Tray to Top Plate 6mm Stand Offs Between ESC and Upper Chassis Plate M3 Lock Nuts Back 2 screws RUN ALL M3X16MM SCREWS THROUGH THE ESC PLATE AND THE 6MM STAND OFFS. SET THIS ASIDE ALONG WITH THE 3MM LOCK NUTS TO USE LATER. BAG 4 Part Number Description 61011 Mid Body Mount ‐ 2.5mm 70216 1 5/8" threaded body post with 4‐40x1/4 BH 70220 Aluminum Body Post Holder long with set screws 4‐40x1/4in BH Body mount holders M3x22mm BH mid body mount to 10mm stand off to top chassis plate 10mm Stand Off between mid body mount and top chassis plate RUN THE 3X22MM SCREW THROUGH THE MID BODY MOUNT AND THE 10MM STANDOFF. THEN ATTACH THE BODY POST TO THE MID BODY MOUNT USING THE 4‐40 HARDWARE. INSERT THE BODY POST INTO THE HOLDER AND TIGHTEN WITH THE SET SCREWS.
- Page 6 BAG 5 Part Number Description 61001 Main Chassis ‐ 4mm 25mm Stand Offs top chassis plate to main chassis M3x10mm FH Chassis to Standoffs ATTACH THE 4 STAND OFFS TO THE MAIN CHASSIS WHERE THEY ARE NOT ALREADY ATTACHED ON THE TOP CHASSIS PLATE. ATTACH THE TOP CHASSIS PLATE TO THE MAIN CHASSIS PLATE WITH THE M3X10MM FLAT HEAD SCREWS. THEN ATTACH THE ESC PLATE AS SHOWN IN THE PICTURES USING THE M3 LOCKNUTS FROM BAG 3. BAG 6 Part Number Description 61005 Front Shock Tower ‐ 4mm 61013 15* Caster Blocks ‐ Aluminum ‐ EACH M3x8mm Flat Head Castor Blocks to Chassis M3x10mm Button Head To attach shock tower to caster blocks M3 Lock Nuts To attach ball stud to shock tower ATTACH THE CASTER BLOCKS TO THE CHASSIS USING THE M3X8MM FH SCREWS. THEN ATTACH THE SHOCK TOWER TO THE CASTER BLOCKS WITH THE M3X10MM BH SCREWS. USING THE BALL STUDS FROM YOUR ASSOCIATED KIT, INSTALL THOSE INTO THE SHOCK TOWER WITH THE PROVIDED 3MM LOCK NUTS.
- Page 7 BAG 7 Part Number Description LNS1342 3x42 Turnbuckle LNS1360 3x60 Turnbuckle INSTALL THE BALL CUPS FROM YOUR ASSOCIATED KIT ONTO THE SUPPLIED TURNBUCKLES FOR YOUR CAMBER LINKS AND STEERING LINKAGES. BAG 8 Part Number Description 3528 Molded Servo Mounts (PAIR) 3526 Molded Servo Saver Extender 5242 Large Servo Saver M3x6BH To secure Hinge Pin 3mm Flat Washer For M3x6BH hinge pin screws 3mm Spacer Spacer goes between shock tower and AE shock mount 3x25mm BH Used to mount the top of the shock to the tower using the 3mm spacer and AE shock mount 4‐40x5/16 Flat Head Servo Mount to Chassis 4‐40x3/8 Button Head Servo to Servo mounts USING THE 4‐40X5/16 FH SCREWS, ATTACH THE SERVO MOUNTS TO THE CHASSIS. THEN INSTALL THE SERVO EXTENDER ONTO THE SERVO SAVER AND INSTALL ON YOUR SERVO. SAND THE BALL CUPS THAT CONNECT TO THE SERVO SAVER SO THEY DO NOT RUB AND CONNECT THE TURNBUCKLES TO THE SERVO SAVER. WHEN INSTALLING THE AE PARTS, YOU WILL NEED TO USE THE 3MM SPACERS BETWEEN THE SHOCKS AND THE SHOCK TOWER TO GIVE IT THE CORRECT SPACING. ONCE YOU INSTALL THE FRONT ARMS AND HINGE PIN, YOU WILL NEED TO DRILL A SMALL HOLE CLOSE TO THE HINGE PIN SO THAT THE FLAT WASHER KEEPS THE HINGE PIN IN PLACE LIKE THE OTHER END OF IT WITH THE ASSOCIATED SCREW. BAG 9 Part Number Description M3x14mm FH to attach chassis to mid bumper with skid plate M3 Lock Nuts to attach chassis to mid bumper with skid plate...
- Page 8 BAG 10 Part Number Description 61022 F'n Star Battery holder 2.5mm M3x10mm FH Chassis to Battery standoff M3x10mm BH Chassis to Battery standoff 25mm Stand Offs Battery standoff INSTALL THE 25MM STAND OFFS WHERE NEEDED TO FIT YOUR BATTERY TO THE CHASSIS USING THE M3X10MM FH SCREWS. THEN INSTALL THE F'N STARS TO THE STAND OFFS WITH THE M3X10MM BH SCREWS. BAG 11 Part Number Description 61023 Drag Riser Plate ‐ 4mm M3x20mm FH To Attach transmission to rear of the chassis M3x12mm FH To attach transmission to chassis 61019 ARB Kit ‐wire, 2 6997, 2 3x12 BH, 1 70055 collar INSTALL THE RISER PLATE WITH THE C BLOCK FROM YOUR ASSOCIATED KIT WITH TWO OF THE 12MM FH SCREWS. THEN INSTALL THE TRANSMISSION FROM YOUR AE KIT WITH THE REMAINING 12MM AND 20MM SCREWS. THE 20MM SCREWS WILL GO THROUGH THE D BLOCK. RUN THE ANTI‐SWAY BAR THROUGH THE BACK OF THE TRANSMISSION WITH THE COLLAR IN THE MIDDLE AND ATTACH TO THE REAR ARMS AS SHOWN USING THE CONNECTING RODS. OPTIONAL ‐ YOU CAN USE THE HARDWARE THAT CAME WITH THE AE KIT FOR THE ARB. YOU CAN CONNECT THE BAR TO THE FACTORY ARB LOCATIONS USING THE 6997 FROM THE BREAKOUT KIT, ALONG WITH THE 91820 BALLCUP FROM YOUR AE KIT. TRIM THE ARB WIRE AS NEEDED.
- Page 9 BAG 12 Part Number Description 61010 Breakout Motor Plate ‐ 3mm M3x12mm FH to attach motor plate to transmission .062#4 spacer Top screws on motor plate when removing the spur guard, 1 between braces on transmission 61009 Water Fall Braces ‐ 2.5mm M3x16mm BH To Attach Water Fall Brace to Transmission M3x12mm BH To Attach Water Fall Brace to Servo Mount M3 Lock Nuts To attach Water Fall Brace to Servo Mount ATTACH THE MOTOR PLATE TO THE TRANSMISSION WITH THE 12MM FH SCREWS. WHEN NOT USING THE SPUR GUARD, YOU WILL USE TWO OF THE .062 SPACERS BETWEEN THE MOTOR PLATE AND THE TRANSMISSION. YOU MAY NEED TO CUT A FLAT SPOT ON THEM SO THEY FIT PROPERLY. INSTALL THE WATERFALL BRACES AT THE TRANSMISSION WITH A 16MM SCREW AND A .062 SPACER BETWEEEN THE BRACES. AT THE SERVO MOUNT, USE A 12MM BH SCREW AND 3MM NUT TO SECURE THE BRACES. BAG 13 Part Number Description 61008 Rear Shock Tower ‐ 4mm 61012 Rear Body Mount ‐ 2.5mm 12009 Rear Body mount Delrin Block 70216 1 5/8" threaded body post with 4‐40x1/4 BH screws 70219 Aluminum Body Post Holder short with set screws 4‐40x1/4in BH Body mount holders M3x12 BH To attache the shock tower to the transmission M3x16mm BH To attach body mount to the printed block M3 Lock Nuts To attach body mount to the printed block and the shock tower to the printed block M3x22mm BH...
- Page 10 BAG 14 Part Number Description 61014 Transmission Top Plate ‐ 2.5mm 61015 3D Printed Supports 61016 Wheelie Bar Side plates ‐ 2.5mm 70046 Bearings 70020 Wheelie bar wheels 70025 Wheelie bar wheel o rings 61043 STD Wheelie bar shock mount M3x18mm BH Front two holes of the 61014 to the transmission M3x10mm BH Attaches 61043 and 61014 to the top of 61015 M3x10mm BH 8 for side plates to stand offs, 8 to attach printed supports M3x18mm FH To attach wheelie bar to printed supports M3 Locknut This goes on the inside of the 61015 on the M3x18mm FH M3 Counter Sunk Washers Goes on the M3x18mm FH to attach wheelie bar to printed supports 45mm Stand Offs Supports between the side rails 30mm stand off between wheelie bar wheels M3X16mm BH 2 for wheelie bar wheels, 2 for lower shock mount M3 Lock Nut for wheelie bar wheels M3x12mm BH top shock mount for shock on wheelie bar M3 Lock Nut top shock mount for shock on wheelie bar 20mm stand offs lower shock mount...
- Page 11 KIT PICKED BY: BREAKOUT PICK LIST BAG 1 Part Number Description QTY QTY PICKED 61003 Front Bumper ‐ 2.5mm 61004 Front Mid Bumper ‐ 2.5mm 70218 2 5/8" threaded body post with 4‐40x1/4 BH screws 70220 Aluminum Body Post Holder long with set screws 4‐40x1/4" BH 70071 Bottom of 70220 M3x10mm BH M3 Lock Nuts BAG 2 Part Number Description QTY QTY PICKED 61002 Main Chassis Top Plate ‐ 4mm 25mm Stand Offs 91719 Associated Servo Mount M3x6mm BH M3x10mm BH BAG 3 Part Number Description QTY QTY PICKED 61021 ESC Tray 2.5mm M3x16mm BH 6mm Stand Offs M3 Lock Nuts BAG 4 Part Number...
- Page 12 BAG 6 Part Number Description QTY QTY PICKED 61005 Front Shock Tower ‐ 4mm 61013 15* Caster Blocks ‐ Aluminum ‐ EACH M3 Locknut M3x8mm Flat Head M3x10mm Button Head BAG 7 Part Number Description QTY QTY PICKED LNS1342 3x42 Turnbuckle LNS1360 3x60 Turnbuckle BAG 8 Part Number Description QTY QTY PICKED 3528 Molded Servo Mounts 3526 Molded Servo Saver Extender 5242 Large Servo Saver M3X6 BH Retaining Screw for Hinge Pin 3mm Flat Washer Used with retainng screw to capture hinge pin 3mm Spacer Goes between the shock tower and the AE shock mount 3x25mm BH For upper shock mount through tower hole 4‐40x5/16 Flat Head 70069 4‐40x3/8 Button Head BAG 9...
- Page 13 BAG 12 Part Number Description QTY QTY PICKED 61010 Breakout Motor Plate ‐ 3mm M3x12mm FH .062#4 spacer 1 for waterfall brace and 2 for motor plate 61009 Water Fall Braces ‐ 2.5mm M3x16mm BH M3x12mm BH M3 Lock Nuts BAG 13 Part Number Description QTY QTY PICKED 61008 Rear Shock Tower ‐ 4mm 61012 Rear Body Mount ‐ 2.5mm 12009 Rear Body mount Delrin Block 70216 1 5/8" threaded body post with 4‐40x1/4 BH screw 70219 Aluminum Body Post Holder short with set screws 4‐40x1/4" BH 70071 Body mount holders M3x16mm BH M3 Lock Nuts M3x12mm BH M3x22mm BH BAG 14 Part Number Description QTY QTY PICKED 61014 Transmission Top Plate ‐ 2.5mm 61015...
- Page 14 BAG 15 SPARE SAE HARDWARE Part Number Description QTY QTY PICKED 4‐40X3/8 BH 4‐40X1/4 BH 4‐40X5/16 FH BAG 16 SPARE METRIC HARDWARE Part Number Description QTY QTY PICKED 3mm Flat Washer 3x16mm set screw .062#4 SPACER Spacer 3MM M3 Lock Nut M3x6mm BH M3x10mm BH M3x12mm BH M3x16mm BH M3x18mm BH M3x20mm BH M3x22mm BH M3x25mm BH M3x8mm FH M3x10mm FH M3x12mm FH M3x14mm FH M3x18mm FH M3x25mm FH...
- Page 15 Part Number Description Retail Total needed per kit KIT61000 Breakout Drag Kit $399.99 Part Number Description Sold as Retail LNS1342 3x42 Turnbuckle PAIR $12.49 LNS1360 3x60 Turnbuckle PAIR $15.00 3526 Molded Servo Saver Extender EACH $3.00 3528 Molded Servo Mounts (PAIR) EACH $3.00 3529 Brass Servo Mounts EACH $14.00 5238 Aluminum Servo Mounts ‐ pair PAIR $12.00 5242 Large Servo Saver EACH $6.00 12009 Rear Body mount Printed Block EACH $7.00...
- Page 16 WW61004 2mm Mid Bumper EACH $8.00 WW61001 AE 3mm Chassis EACH $85.00 WW61008 3mm Rear Shock Tower EACH $24.00 WW61005 3mm Front Shock Tower EACH $22.00 WW61002 2.5mm Top Chassis Plate EACH $15.00 6mm standoff EACH $2.00 10mm standoff EACH $2.00 20mm standoff EACH $2.00 25mm standoff EACH $0.20 30mm standoff EACH $2.00 45mm standoff EACH $2.00 M3 Counter Sunk Washers EACH $0.20 3mm Flat Washer EACH...
- Page 17 CASTER * Caster Block Spacing: Rear Suspension: Ride Height: 20mm C Mount: D Mount: Aluminum Brass Aluminum Brass Camber: FiveStar roll bar Anti-Roll Bar: GULLWING Arm Type: Arm Spacing: BACK Hub Spacing: Forward Middle Back Camber Link Spacing: Shock Mounting Position:...
- Page 18 CHASSIS: Driver: Date: Track: RESULTS OF QUICKEST ET - 6' ET_______ 132' ET_________ MPH___________ SURFACE TYPE:_______________ Front Suspension: Ride Height: Bump Steer Spacing: Ball Stud Spacing: Camber: Toe: Anti-Roll Bar: Steering Plate: Arm Type: Axle Height: Tower Type: Steering Stop Spacing: Ball Stud Spacing: Caster Block Insert: Steering Block:...
