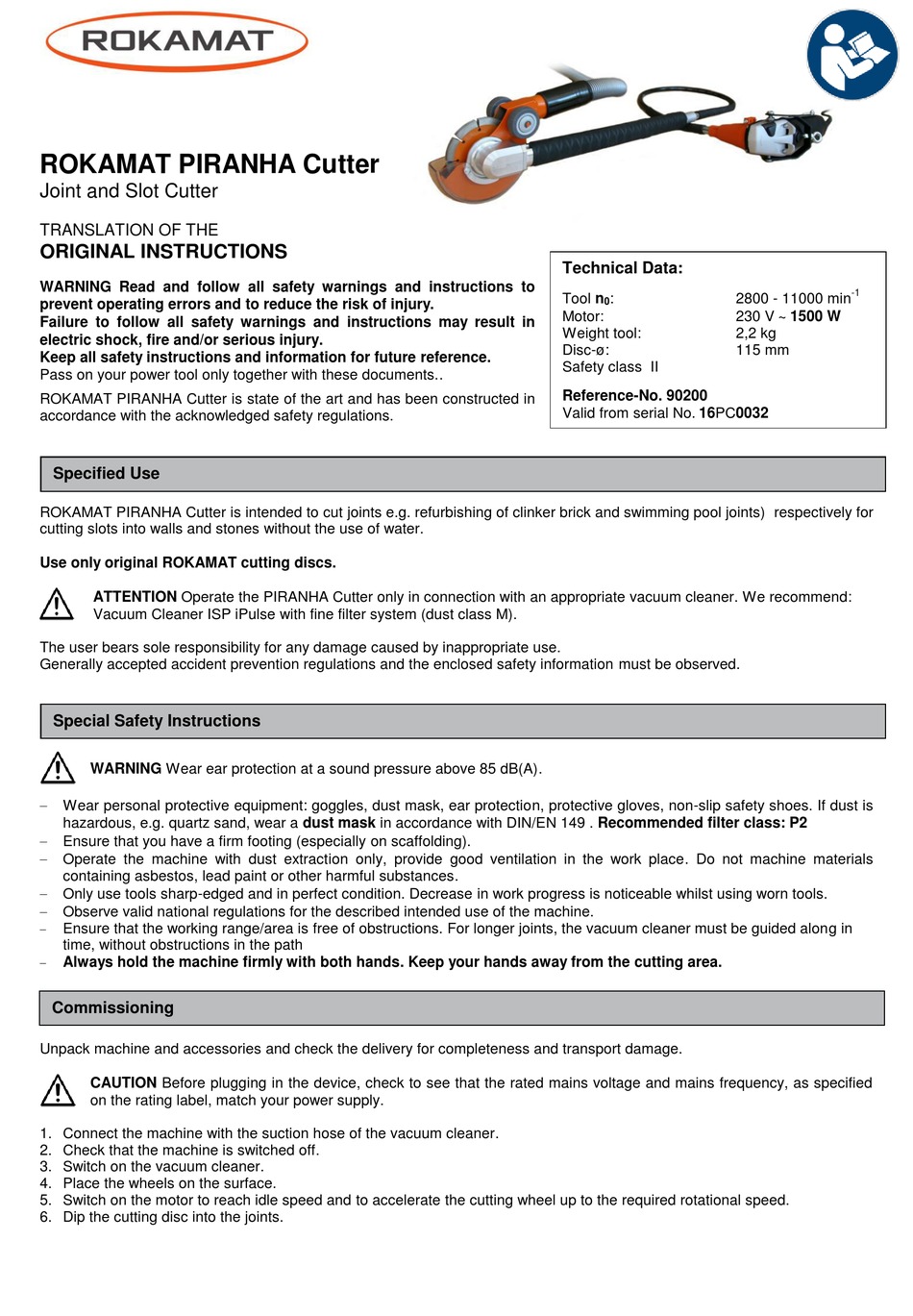

ROKAMAT PIRANHA Translation Of The Original Instructions

ROKAMAT PIRANHA Cutter
Joint and Slot Cutter
TRANSLATION OF THE
ORIGINAL INSTRUCTIONS
WARNING Read and follow all safety warnings and instructions to
prevent operating errors and to reduce the risk of injury.
Failure to follow all safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference.
Pass on your power tool only together with these documents..
ROKAMAT PIRANHA Cutter is state of the art and has been constructed in
accordance with the acknowledged safety regulations.

Specified Use

ROKAMAT PIRANHA Cutter is intended to cut joints e.g. refurbishing of clinker brick and swimming pool joints) respectively for
cutting slots into walls and stones without the use of water.
Use only original ROKAMAT cutting discs.
ATTENTION Operate the PIRANHA Cutter only in connection with an appropriate vacuum cleaner. We recommend:
Vacuum Cleaner ISP iPulse with fine filter system (dust class M).
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.

Special Safety Instructions

WARNING Wear ear protection at a sound pressure above 85 dB(A).
 Wear personal protective equipment: goggles, dust mask, ear protection, protective gloves, non-slip safety shoes. If dust is
hazardous, e.g. quartz sand, wear a dust mask in accordance with DIN/EN 149 . Recommended filter class: P2
 Ensure that you have a firm footing (especially on scaffolding).
 Operate the machine with dust extraction only, provide good ventilation in the work place. Do not machine materials
containing asbestos, lead paint or other harmful substances.
 Only use tools sharp-edged and in perfect condition. Decrease in work progress is noticeable whilst using worn tools.
 Observe valid national regulations for the described intended use of the machine.

Ensure that the working range/area is free of obstructions. For longer joints, the vacuum cleaner must be guided along in
time, without obstructions in the path

Always hold the machine firmly with both hands. Keep your hands away from the cutting area.
Commissioning
Unpack machine and accessories and check the delivery for completeness and transport damage.
CAUTION Before plugging in the device, check to see that the rated mains voltage and mains frequency, as specified
on the rating label, match your power supply.
1. Connect the machine with the suction hose of the vacuum cleaner.
2. Check that the machine is switched off.
3. Switch on the vacuum cleaner.
4. Place the wheels on the surface.
5. Switch on the motor to reach idle speed and to accelerate the cutting wheel up to the required rotational speed.
6. Dip the cutting disc into the joints.

Technical Data:

Tool n :
0
Motor:
Weight tool:
Disc-ø:
Safety class II
Reference-No. 90200
Valid from serial No. 16PC0032
-1
2800 - 11000 min
230 V ~ 1500 W
2,2 kg
115 mm
