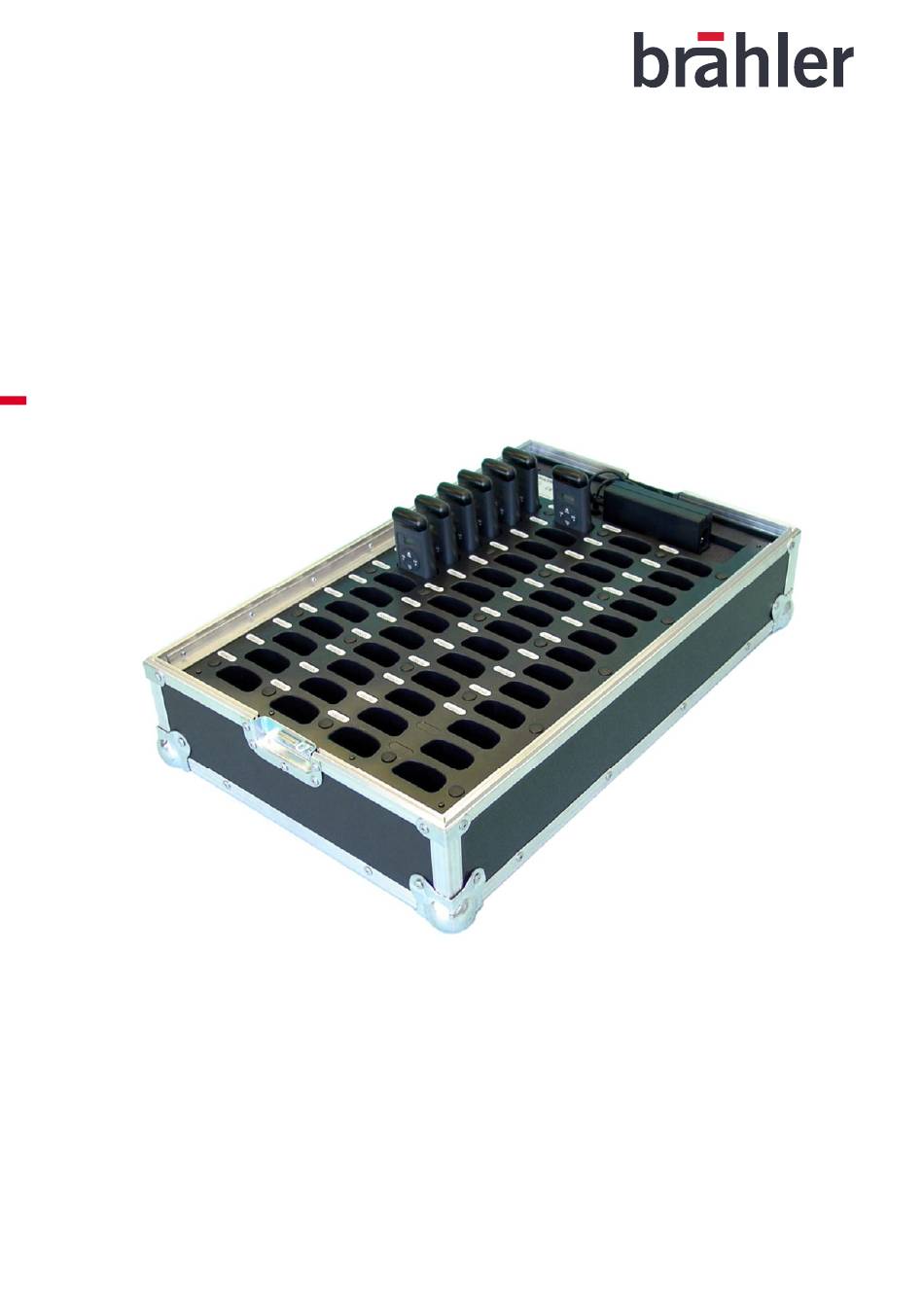

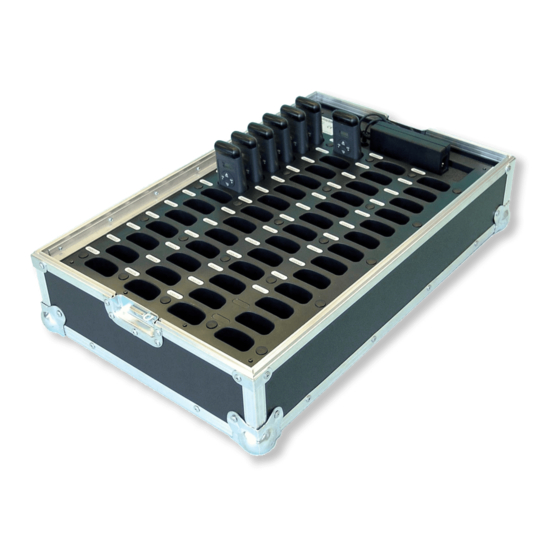

- Page 1 INFRACOM® TK50 Charging and Storage case for 50 receivers IRX Operating instructions Rev 2.0...
- Page 2 You will find further information about our products on the Internet at: www.braehler.com © 2008 BRÄHLER ICS AG, Königswinter All rights reserved, especially (also partly) the translation, reprint, reproduction through copying or other similar methods. BRÄHLER ICS reserves the right to make changes without notice. Operating instructions INFRACOM®, BGE-TK50.doc Jun-09...
- Page 3 INFRACOM® TK50 CAUTION DANGER OF ELECTRIC SHOCK DO NOT OPEN DEVICES! Do not open housing with mains cable connected. Maintenance operations may only be done by qualified personnel. Our equipment and installations have been built and tested according to the latest state of the art.
- Page 4 INFRACOM® TK50 Copyright by Brähler ICS...
-
Page 5: Table Of Contents
INFRACOM® TK50 Content About this manual ........................6 Symbols ..........................6 Important remarks........................7 For customers in the EU and in the USA................7 Safety............................ 7 Installation..........................7 Cleaning..........................7 Repacking..........................7 General ..........................8 Introduction ..........................9 Contents of basic delivery....................10 INFRACOM®... -
Page 6: About This Manual
INFRACOM® TK50 About this manual Symbols The meaning of the symbols and fonts used in this manual: Indicates an important note, if not minded, the functionality of the unit, the security of your data, or your health are put at risk. -
Page 7: Important Remarks
INFRACOM® TK50 Important remarks For customers in the EU and in the USA The equipment is complying with the standards of the CE regulations. These standards are specified to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. The equipment can radiate radio frequency energy and if not installed and used according to the user manual it may cause harmful interference to radio communications. -
Page 8: General
TK50 General Please keep this manual together with the storage tray TK50. If you pass on the unit to other parties, please include this manual. Please read the manual carefully, taking special care when you see this symbol as it... -
Page 9: Introduction
Alternatively to the TK50 Transportation case, you may order a charging and storage case with 50 receiver trays. This tray has all the functions available in the TK50 but comes with an external power supply. Any how you may upgrade your TK50 (IRX with disposable batteries) to a TK50 (for IRX) simply by adding the power supply. -
Page 10: Contents Of Basic Delivery
This manual INFRACOM® system components ® The TK50 storage tray operates as a single component in a wide system; a complete INFRACOM language distribution system also may contain the following components: IR-transmitter MSI8D and MSI8V (to modulate audio input) IR-radiator e.g. IRad (to transmit modulated audio by infrared light) -
Page 11: Operating Controls
INFRACOM® TK50 Operating controls In case of using the TK50 for IRX receivers equipped with recharging batteries, only plug in the additional power supply to mains power. The TK50 is ready for use. LED control Mains Connector Power supply IRX rechargeable battery... -
Page 12: Operation
During charging in the charging case TK50 display of receiver changes from "bA" to the measured battery voltage. If the receiver is set to Band IV operation a point is displayed additional, e.g. -
Page 13: Technical Data
Mains cable fitted with Euro plug 1.5m Option: TK50 Charging/Transportation Case • same as TK50 but with External Power Supply AC: 100 - 240V, 47 - 63Hz CSA/UL approved AC - Inlet IEC320/C14 „short cut protected“ 12VDC / 8.3A / 100W Copyright by Brähler ICS... -
Page 14: Trouble Shooting
INFRACOM® TK50 Trouble shooting Error description Error cause Error solution Switching on the system The mains cable connector is Check if there is no produces no POWER not properly connected to the connection to the mains ON condition (green corresponding socket of the unit... -
Page 15: Warranty
INFRACOM® TK50 Warranty ® BRÄHLER ICS allows for the INFRACOM products a warranty period of 24 months, from date of delivery, for faulty materials and/or manufacturing faults. The warranty does not include rechargeable or disposable batteries, misuse, negligence, breakage, wrong installation, use outside the existing rules and any unauthorised modifications. - Page 17 Service form Material return shipments for repair-, service-, or guaranty purposes please send to: BRÄHLER ICS Konferenztechnik AG, Auf der Alten Burg 6, D-53639 Königswinter, Germany Phone +49 (0)2244 930-100, Fax +49 (0)2244 930-450 Dear customer, Please ask our sales staff for the RMA number (Return of Material Authorization). Without RMA number a treatment is not possible! Please always include this service form, fully completed, with any complaint or repair wish you may have.
- Page 18 INFRACOM® TK50 Copyright by Brähler ICS...
-
Page 19: Contact Information
INFRACOM® TK50 Contact information Head office Germany Brähler ICS Konferenztechnik International Congress Service AG Wahlfelder Mühle 3 D-53639 Königswinter P.O. Box 3264 53627 Königswinter, Germany +49 (0) 2244 930-0 +49 (0) 2244 930-450 www.braehler.com Rental service Wahlfelder Mühle 3 53639 Königswinter, Germany... - Page 20 Phone: 02244 930-0 www.braehler.com TK50 / Jun-09 06.7090...
