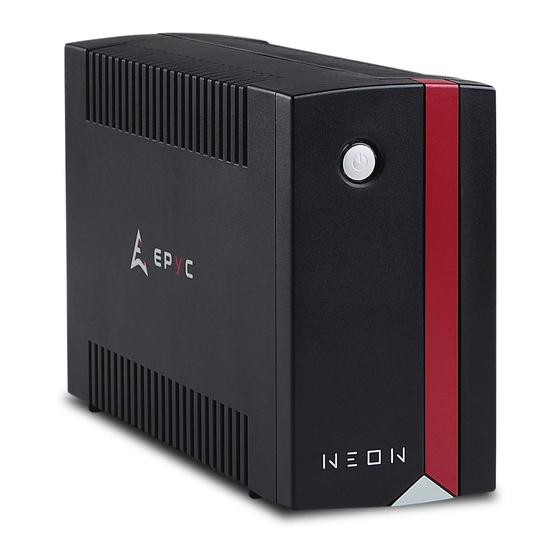

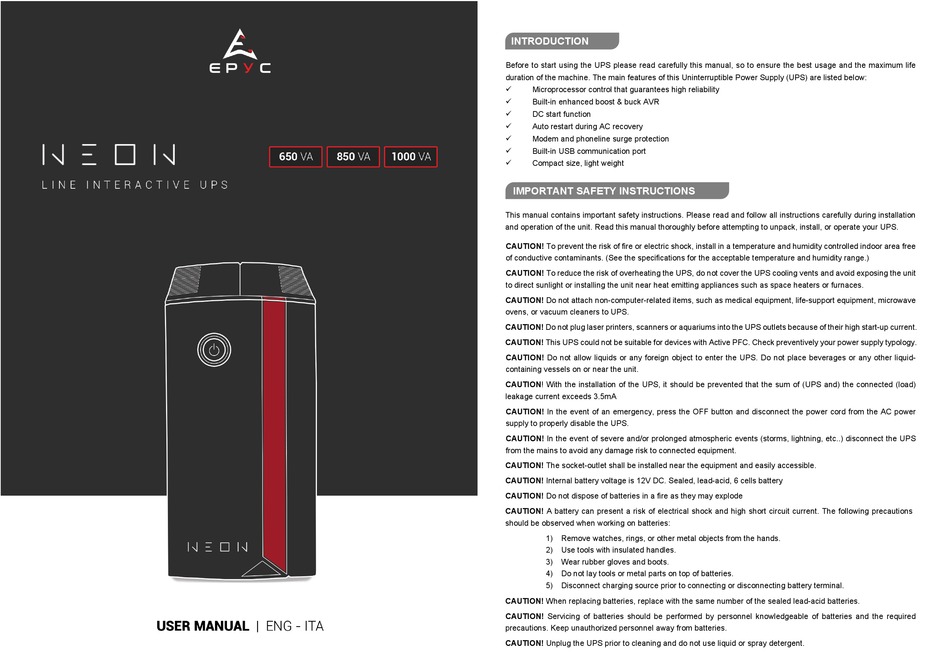

EPYC NEON User Manual

INTRODUCTION
Before to start using the UPS please read carefully this manual, so to ensure the best usage and the maximum life
duration of the machine. The main features of this Uninterruptible Power Supply (UPS) are listed below:
Microprocessor control that guarantees high reliability

Built-in enhanced boost & buck AVR

DC start function

Auto restart during AC recovery

Modem and phoneline surge protection

Built-in USB communication port

Compact size, light weight

IMPORTANT SAFETY INSTRUCTIONS
This manual contains important safety instructions. Please read and follow all instructions carefully during installation
and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free
of conductive contaminants. (See the specifications for the acceptable temperature and humidity range.)
CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS cooling vents and avoid exposing the unit
to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.
CAUTION! Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave
ovens, or vacuum cleaners to UPS.
CAUTION! Do not plug laser printers, scanners or aquariums into the UPS outlets because of their high start-up current.
CAUTION! This UPS could not be suitable for devices with Active PFC. Check preventively your power supply typology.
CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-
containing vessels on or near the unit.
CAUTION! With the installation of the UPS, it should be prevented that the sum of (UPS and) the connected (load)
leakage current exceeds 3.5mA
CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power
supply to properly disable the UPS.
CAUTION! In the event of severe and/or prolonged atmospheric events (storms, lightning, etc..) disconnect the UPS
from the mains to avoid any damage risk to connected equipment.
CAUTION! The socket-outlet shall be installed near the equipment and easily accessible.
CAUTION! Internal battery voltage is 12V DC. Sealed, lead-acid, 6 cells battery
CAUTION! Do not dispose of batteries in a fire as they may explode
CAUTION! A battery can present a risk of electrical shock and high short circuit current. The following precautions
should be observed when working on batteries:
1) Remove watches, rings, or other metal objects from the hands.
2) Use tools with insulated handles.
3) Wear rubber gloves and boots.
4) Do not lay tools or metal parts on top of batteries.
5) Disconnect charging source prior to connecting or disconnecting battery terminal.
CAUTION! When replacing batteries, replace with the same number of the sealed lead-acid batteries.
CAUTION! Servicing of batteries should be performed by personnel knowledgeable of batteries and the required
precautions. Keep unauthorized personnel away from batteries.
CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.
