- Page 1 User manual - iS Series Série iS User manual DOP_1457_A 10/2021...
- Page 2 User manual - iS Series General informations Série iS - User manual Version 10/2021 EN APG France (Active Audio / Arbane Groupe) 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio/fr DOP_1457_A 10/2021...
- Page 3 User manual - iS Series Table des matières 1. Remarques de sécurité et informations générales 2. La gamme iS 2.1 Description de la gamme 2.2 Description du produit 2.3 Connexions 2.4 Exemples de configurations 2.5 Rigging 2.6 Maintenance - Pièces détachées 2.7 Spécifications techniques...
- Page 4 Pay attention to the hearing protection of listeners when using APG systems. • Read this manual before use and keep it.
- Page 5 • Use a secondary safety system for any APG speaker rigging. • The product is intended for be used by professionals trained in professional audio work. • APG declines all responsibility in the event of the use of non-validated accessories or non-compliance with safety instructions and rules.

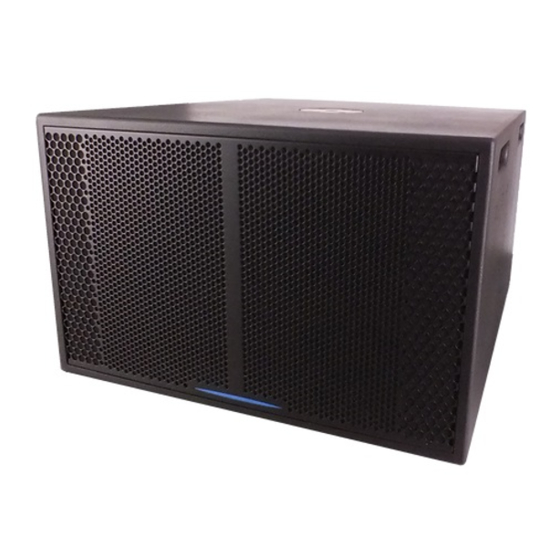

- Page 6 User manual - iS Series 2. The iS range 2.1 Description of the product line iS Series is a range made up of 3 high-quality bass speakers dedicated to professional installations. Aesthetic and compact, they deliver a high sound level while offering a high quality of sound reproduction. Designed for fixed installation, the iS Series speakers feature ergonomic options for quick and easy integration. DOP_1457_A 10/2021...
-
Page 7: Product Description
User manual - iS Series 2.2 Product description iS110 The iS110 subwoofer has been designed to add a deep bass extension to the speakers of the installation range while discreetly. The iS110 is equipped with a 10’’ speaker loaded with bass reflex. This exclusive acoustic design has the effect of greatly... - Page 8 User manual - iS Series iS112 The iS112 is a compact subwoofer dedicated to mobile applications and small-scale fixed installations. It is equipped with a 12’’ speaker. Its acoustic design has the effect of considerably reducing the load volumes in order to obtain the lowest possible {size / low cutoff frequency} ratio while improving acoustic efficiency. This dual speaker load with front and rear volume also provides true mechanical control of diaphragm travel and reduced distortion.
- Page 9 User manual - iS Series iS115 The iS115 model is a compact subwoofer suitable for both fixed installation and service. It is equipped with a 15’’ neodymium speaker, the acoustic load being the bass reflex. This exclusive acoustic design has the effect of greatly redu- cing the load volumes in order to achieve an optimal {size / low cutoff frequency} ratio while improving acoustic efficien- cy. This dual speaker load with front and rear volume also provides true mechanical control of diaphragm travel and reduced distortion. At the ergonomic level, the iS115 integrates multiple func- tions: two integrated handles, a fully recessed protected and discreet connection, a screw tube base and glides.
- Page 10 User manual - iS Series 2.3 Connections Thru Thru LINK The rear panel of the iS Series subwoofers are equipped with two NL4 connectors. The four pins of the two connectors are connected in parallel. The speakers occupy points 1 + / 1-. The IN connector is used to receive the audio signal. The LINK connector allows it to be redistributed to another iS subwoofer connected in parallel. The internal pinout of the iS subwoofers is shown in the table below.
- Page 11 User manual - iS Series 2.4 Examples of configurations 2 x iX5 2 x iS110 2 x iX6 2 x iS112 DOP_1457_A 10/2021...
- Page 12 User manual - iS Series 2 x iX8 2 x iS115 iX12 + iS115 iX12 + iS115 on the ground suspended DOP_1457_A 10/2021...
- Page 13 User manual - iS Series 2.5 Rigging iS110 hanging accessory The iS110 can be placed on the floor horizontally, or posi- tioned vertically against a wall with the iS110KMV mounting accessory. iS110KMV wall or ceiling mounting acces- sory 1. Place the mounting accessory on the underside of the enclosure then secure it using the M8x25 screws provided for this purpose. 4 x M8x25 2. If necessary, it is possible to fix the assembly on a section of wall using the fixing holes. Fixing holes for installa- tion on a wall DOP_1457_A 10/2021...
- Page 14 User manual - iS Series iS112 hanging accessory The iS112 can be placed on the floor or suspended using the iS112BH mounting accessory. Hanging bumper iS112BH 1. Place the mounting accessory on the underside of the enclosure then secure it using the M8x25 screws provided for this purpose. 4 x M8x25 2. Use the lifting rings to suspend and secure the subwoofer with a motor for example. Lifting rings DOP_1457_A 10/2021...
- Page 15 User manual - iS Series iS115 hanging accessory The iS115 can be placed on the floor or suspended using the iS115BH mounting accessory. Hanging bumper iS115BH 1. Place the mounting accessory on the underside of the speaker. WARNING : - For use alone, be sure to secure the hanging bumper to the corresponding attachment points (A and A ’) then secure it using the M8x25 screws provided for this purpose.
- Page 16 User manual - iS Series 2. Use the lifting rings to suspend and secure the subwoofer with a motor for example. Lifting rings DOP_1457_A 10/2021...
- Page 17 User manual - iS Series iS115 to iX12 connection accessory L’iS115 dispose aussi d’une pièce de jonction LKiS115-iX12 permettant un couplage avec une iX12. Connection accessory LKiS115-iX12 1. Place the iX12 loudspeaker horizontally and fix the junction pieces on each side of the iX12. 4 x M8x25 2. Assemble by approaching the iX12 under the iS115 then fix the junction pieces to the iS115 using the M8x25 screws. DOP_1457_A 10/2021...
- Page 18 User manual - iS Series 2.6 Maintenance - Spare parts iS110 loudspeaker REPERE REFERENCE DESIGNATION DOP_1457_A 10/2021...
- Page 19 User manual - iS Series iS112 loudspeaker REPERE REFERENCE DESIGNATION DOP_1457_A 10/2021...
- Page 20 User manual - iS Series iS115 loudspeaker REPERE REFERENCE DESIGNATION DOP_1457_A 10/2021...
-
Page 21: Technical Specifications
User manual - iS Series 2.7 Technical specifications iS110 loudspeaker Features Usable bandwidth (± 10 dB) 45 Hz - 150 Hz SPL Max @ 1m 132 dB SPL (1) Nominal directivity Omnidirectionnal (2) Nominal impedance 8 ohm Components 425,00 Transducers 1 x 10'' Ferrite Topology Acoustical load Bass Reflex Ways and amplification type 1 way, mono amplified Power 500 W (3) - Page 22 User manual - iS Series iS112 loudspeaker Features Usable bandwidth (± 10 dB) 45 Hz - 150 Hz SPL Max @ 1m 137 dB SPL (1) Nominal directivity Omnidirectionnal (2) Nominal impedance 8 ohm Components 525,00 Transducers 1 x 12'' ND Topology Acoustical load Bass Reflex Ways and amplification type 1 way, mono amplified Power 800 W (3) Maximum power handling 3200 W (4) Construction Dimensions H,W,D (mm) 12,7’’ x 20,6’’ x 24’’...
- Page 23 User manual - iS Series iS115 loudspeaker Features Usable bandwidth (± 10 dB) 42 Hz - 120 Hz SPL Max @ 1m 138 dB SPL (1) Nominal directivity Omnidirectionnal (2) Nominal impedance 8 ohm Components 598,00 Transducers 1 x 15'' ND Topology Acoustical load Bass Reflex Ways and amplification type 1 way, mono amplified Power 900 W (3) Maximum power handling 3600 W (4) Construction Dimensions H,W,D (mm) 14,7’’ x 23,5’’ x 27,1’’...
- Page 24 User manual - iS Series Arbane Groupe 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio DOP_1457_A 10/2021...
