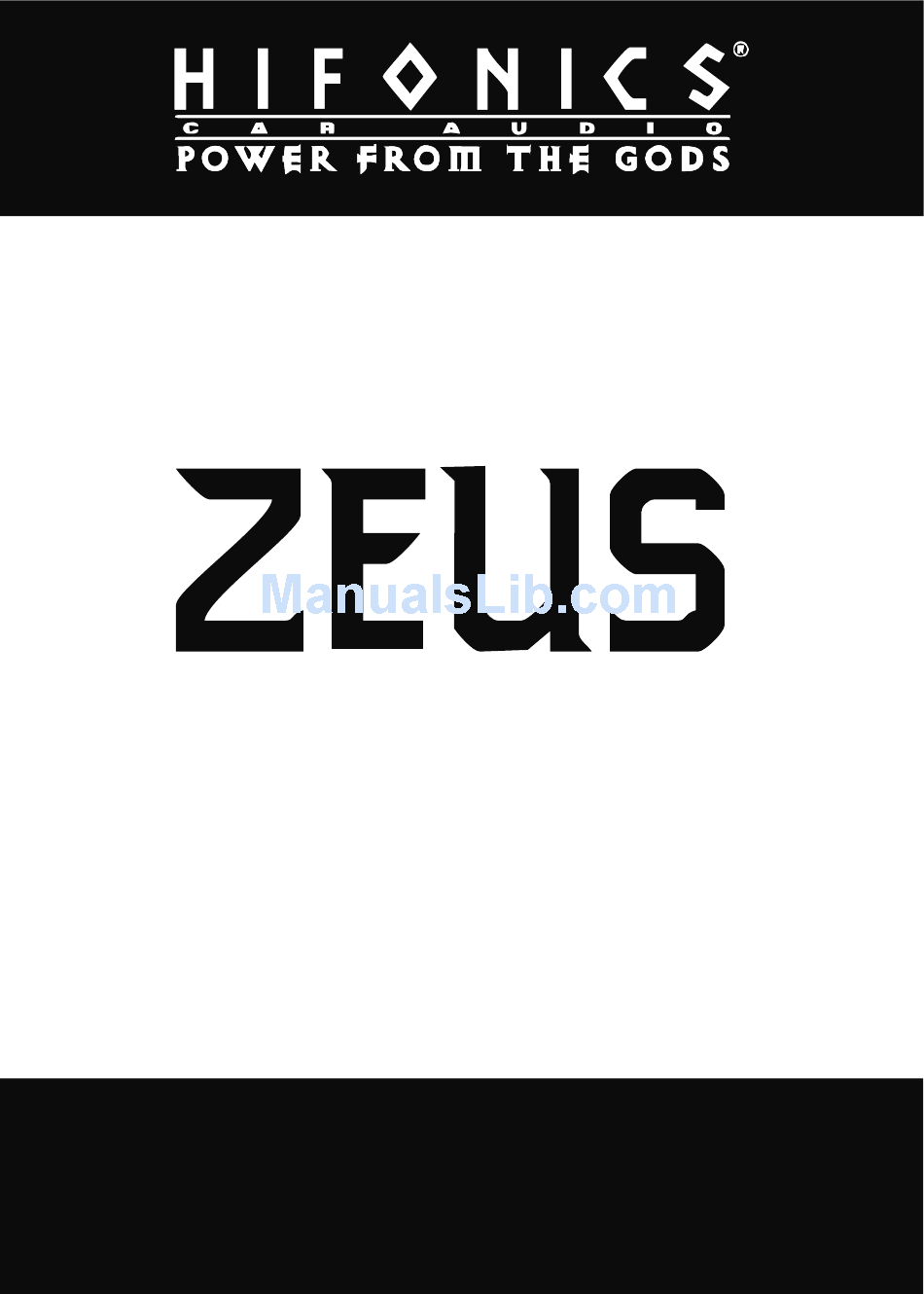

- Page 1 SUBWOOFERS ZX10D2 / ZX10D4 ZX12S4 / ZX12D2 / ZX12D4...
- Page 2 10” & 12” Round Subwoofers Rubber Surround Dual Flat Nomex Spider With Woven Tinsel Leads Polypropylene Cone Nickel Plated Push & Insert Speaker Terminals Heat Dispersing Ported Nickel Plated Back Plate Ultra Ridged Stamped Steel Basket Protective Rubber Magnet Wrap Operates In Sealed &...
-
Page 3: Enclosure Materials
SUBWOOFER INSTALLATION AND WIRING DIRECTIONS Enclosure Materials Typically, 5/8” or 3/4” MDF (Medium Density Fiber Board) is best for most applications. 3/4” MDF is recommended. Enclosure Build Materials Connecting joints need to be glued and screwed to ensure no air escapes and joints do not separate under high pressure. Mitered and rabbit joints also help to ensure the enclosure joints are secure. -
Page 6: Glossary Of Terms
The resonant frequency of a vented system The half-power (-3dB) frequency of a loud speaker enclosure Qtc The Q of a loud speaker at Fc in a closed box, considering both it’s electrical and mechanical resistance. QL The Q of a vented box, resulting from all box losses. - Page 7 Parallel + 2-Ohms Parallel Coils / Parallel Subs Series Coils / Parallel Subs DVC 4-Ohms Series - 8-Ohms - 1-Ohm + 8-Ohms...
- Page 8 Parallel Parallel Coils / Parallel Subs Series Coils / Parallel Subs DVC 2-Ohms + 1-Ohm Series - 4-Ohms - 0.5-Ohms + 2-Ohms...
- Page 9 SVC 4-Ohms Standard Parallel Subs Series Subs - 4-Ohms - 2-Ohms + 8-Ohms...
- Page 10 Subwoofer Dimensions Model A - Cut Out Diameter B - Mounting Depth ZX10 9.06” / 230mm 6.06” / 154mm ZX12 11.18” / 284mm 6.22” / 157.9mm...
- Page 11 Maxxsonics Limited Warranty As the manufacturer of Maxxsonics, MB Quart, Autotek, Crunch and Hifonics car audio products, Maxxsonics USA Inc. Warrants to the original consumer purchaser the amplifier to be free from defects in material and workmanship for one (1) Year from date of purchase. All other parts and accessories of the system are warrantied to be free from defects in material and workmanship for one (1) year from date of purchase.
- Page 12 PART#F808...
