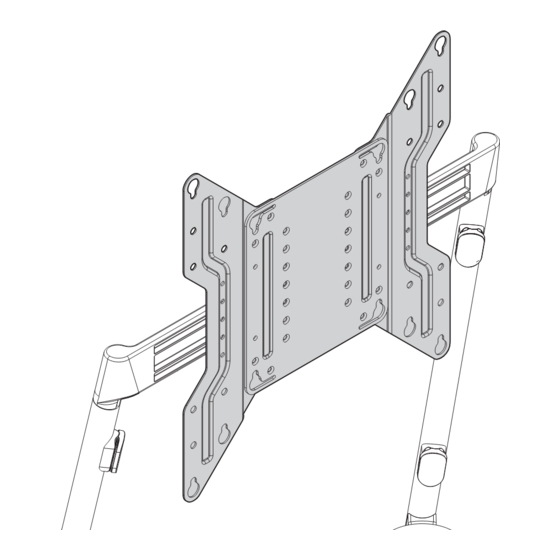

Flex Media Cart - Screen Adapter
Included:
1x
3 mm
M5-0.8x10
3mm Hex
10mm
4x
M5-0.8x12
3mm Hex
12mm
12x
Page 1 of 4
Doc # 159174 Rev C
Advertisement
Related Manuals for Steelcase Flex Media
Summary of Contents for Steelcase Flex Media
- Page 1 ® Flex Media Cart - Screen Adapter Included: 3 mm M5-0.8x10 3mm Hex 10mm M5-0.8x12 3mm Hex 12mm 888.STEELCASE (888.783.3522) * Intended for Institutional use. www.steelcase.com * Destiné à un usage institutionnel. Page 1 of 4 2021 Steelcase Inc. ©...
- Page 2 - Le déplacement de l'équipement audio et / ou vidéo vers un meuble non spécifiquement conçu pour supporter un équipement audio et / ou vidéo peut entraîner la mort ou des blessures graves en raison de l'effondrement du meuble ou du retournement sur un enfant" www.steelcase.com ADVERTENCIA ADVERTISSEMENT WARNING...
- Page 3 ® WARNING WARNING Intended monitor size: max. 65 inches (165cm) The maximum rated load Risk of Death or Serious Injury The maximum rated load weight for the weight for each self: For use with televisions weighing 50 lbs Video Monitor is 50lbs ( 22,7 Kg ) Top Shelf - 34 lbs ( 15,4 Kg ) (23 kg) or less.
- Page 4 ® Optional: NOTE: Must have four screws (2b) connecting adapter brackets (I) to cross bar (B). This may require the vertical position of the main plate (A) to be adjusted. M5-0.8x12 M5-0.8x10 3mm Hex 3mm Hex M5-0.8x12 12mm 10mm 3mm Hex 12mm Page 4 of 4 Doc # 159174 Rev C...
