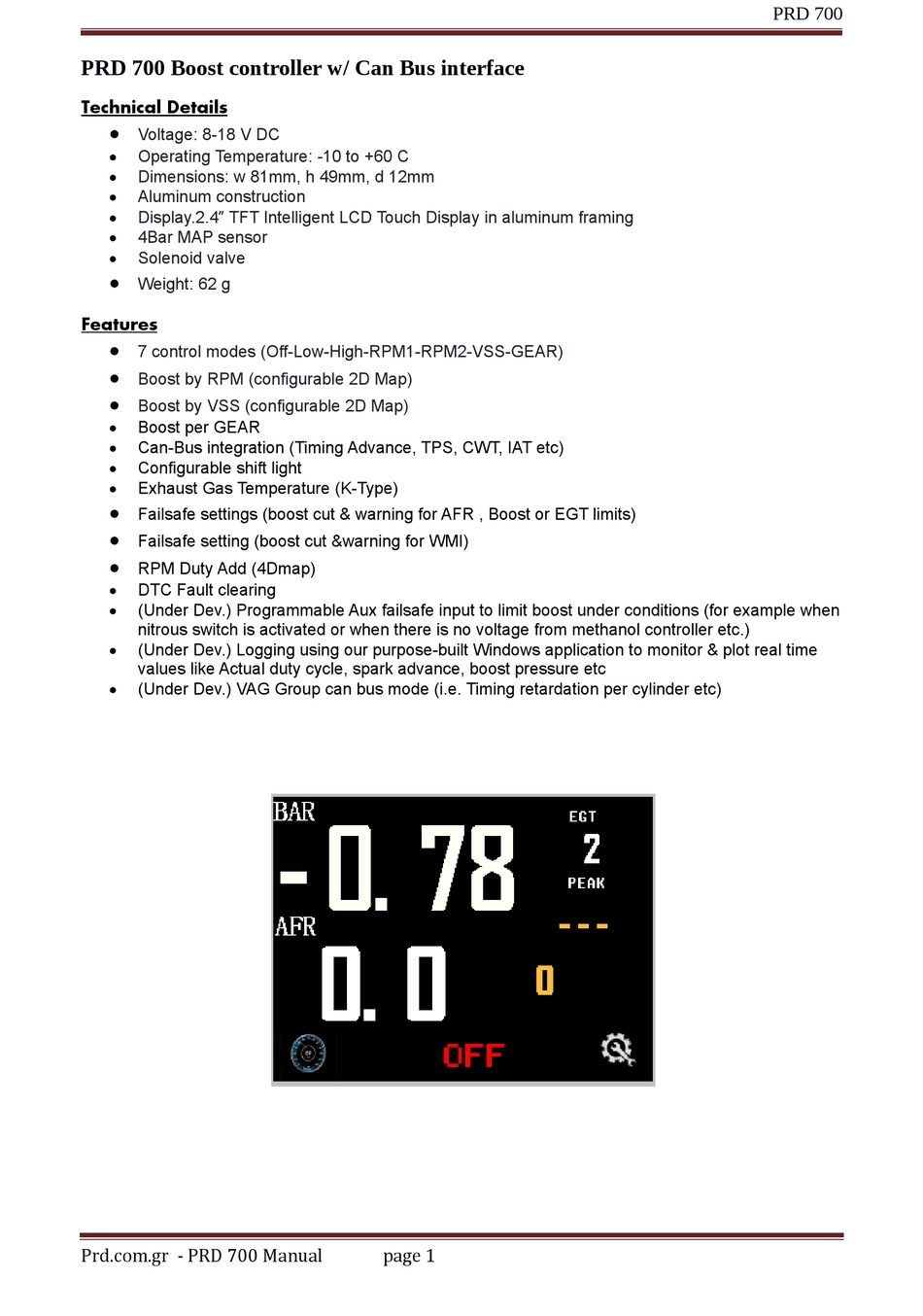

PRD 700 Manual

PRD 700 Boost controller w/ Can Bus interface
Technical Details

Voltage: 8-18 V DC

Operating Temperature: -10 to +60 C

Dimensions: w 81mm, h 49mm, d 12mm

Aluminum construction

Display.2.4" TFT Intelligent LCD Touch Display in aluminum framing

4Bar MAP sensor

Solenoid valve

Weight: 62 g
Features

7 control modes (Off-Low-High-RPM1-RPM2-VSS-GEAR)

Boost by RPM (configurable 2D Map)

Boost by VSS (configurable 2D Map)

Boost per GEAR

Can-Bus integration (Timing Advance, TPS, CWT, IAT etc)

Configurable shift light

Exhaust Gas Temperature (K-Type)

Failsafe settings (boost cut & warning for AFR , Boost or EGT limits)

Failsafe setting (boost cut &warning for WMI)

RPM Duty Add (4Dmap)

DTC Fault clearing

(Under Dev.) Programmable Aux failsafe input to limit boost under conditions (for example when
nitrous switch is activated or when there is no voltage from methanol controller etc.)

(Under Dev.) Logging using our purpose-built Windows application to monitor & plot real time
values like Actual duty cycle, spark advance, boost pressure etc

(Under Dev.) VAG Group can bus mode (i.e. Timing retardation per cylinder etc)
Prd.com.gr - PRD 700 Manual page 1
