Summary of Contents for Silent Angel Bremen B1

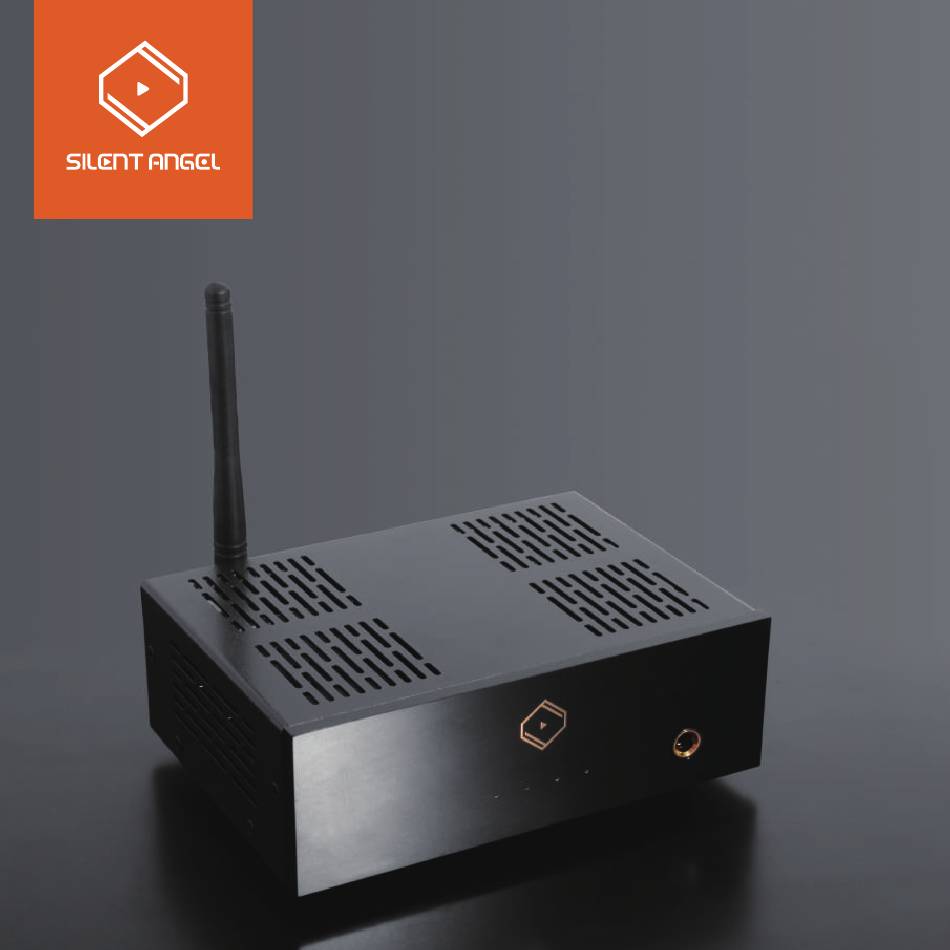

- Page 1 Quick Start Guide Bremen B1 Plug & Play Hi-Fi...
- Page 2 Quick Start Guide - B1 v1.1 Thank you for choosing Silent Angel...
-
Page 3: Table Of Contents
Quick Start Guide - B1 v1.1 Table of Contents Table of Contents Package Contents Front Panel Back Panel Assemble Antenna Signal Connections Audio Applications Power Connections Power On Install "VitOS Lite" App on a Pad or Phone Using iOS device to connect Using Android device to connect Bluetooth Connection Use Another Device to Connect Bluetooth... -
Page 4: Package Contents
Quick Start Guide - B1 v1.1 Package Contents Power Adaptor Ethernet Cable Quick Start Guide Antenna... -
Page 5: Front Panel
Quick Start Guide - B1 v1.1 Front Panel ① ② ③ ④ ⑤ ① Mute LED (Red) Static on: Playback volume is set to minimum. ② Power LED (Green) Static on: Powered on. ③ Syem Status LED (Amber) Fast blinking: System is booting. Slow blinking: Connecting to Wi-Fi, Ethernet, or Bluetooth. -
Page 6: Back Panel
Quick Start Guide - B1 v1.1 Back Panel ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑥ M-IO Expansion connector for extra peripherals. ⑦ Reset Button Wi-Fi connection mode: Short press: Switch to Bluetooth mode. Press and hold for over 5 seconds: Reset Wi-Fi settings to default vale. Bluetooth connection mode: Short press: Switch to Wi-Fi mode. - Page 7 Quick Start Guide - B1 v1.1 ⑩ AES / EBU Digital audio output that carries S/PDIF digital audio format with 110 ohm balanced cable. Pin assignments: PIN 1: Ground (G) PIN 2: Positive (+) PIN 3: Negative (-) ⑪ Digital audio output that supports native differential digital audio signal in LVDS signal standard with HDMI cable. Pin assignments as below figure.
-
Page 8: Assemble Antenna
Quick Start Guide - B1 v1.1 Assemble Antenna See the picture below, equipping the antenna to enjoy Bremen B1’s wireless functionalities (Wi-Fi & Bluetooh). -
Page 9: Signal Connections
Quick Start Guide - B1 v1.1 Signal Connections Make sure all audio devices are powered off. B1 supports Wi-Fi connection and Fast Ethernet connection. Hence, when wiredEthernet is connected, the Wi-Fi will be turned off; when wired Ethernet is not connected, the Wi-Fi will be turned on. ①... -
Page 10: Audio Applications
Quick Start Guide - B1 v1.1 Audio Applications ① Headphone ② Active Speaker... - Page 11 Quick Start Guide - B1 v1.1 ③ Speaker AES / EBU COAXIAL AES / EBU COAXIAL Amplifier...
- Page 12 Quick Start Guide - B1 v1.1 ④ Headphone AES / EBU COAXIAL AES / EBU COAXIAL Headphone Amplifier...
-
Page 13: Power Connections
Quick Start Guide - B1 v1.1 Power Connections Power Cord Power Adaptor AC Outlet Power On Power LED... -
Page 14: Install "Vitos Lite" App On A Pad Or Phone
Quick Start Guide - B1 v1.1 Install "VitOS Lite" App on a Pad or Phone Use below QR code to install "VitOS Lite" app on a pad or phone. -
Page 15: Using Ios Device To Connect
Quick Start Guide - B1 v1.1 ① Using iOS device to connect With Fast Ethernet Connection Found B1 in Press "Browse" to "Devices" page enter main menu... - Page 16 Quick Start Guide - B1 v1.1 With Wi-Fi Connection Use the VitOS Lite to discover and setup the Wi-Fi setting of Bremen B1. Press Press Press "Add Device" "OK" "Allow Once"...
- Page 17 Quick Start Guide - B1 v1.1 Press Press Enter password "Indicator is blinking" "Setup this device" and click "Next"...
- Page 18 Quick Start Guide - B1 v1.1 Wait for B1 to connect Found B1 in Press "Browse" to to the Wi-Fi network "Devices" page enter main menu...
-
Page 19: Using Android Device To Connect
Quick Start Guide - B1 v1.1 ② Using Android device to connect With Fast Ethernet Connection Finding B1 in Press "Browse" to "Device" page enter main menu... - Page 20 Quick Start Guide - B1 v1.1 With Wi-Fi Connection Searching and configuring Bremen B1’s Wi-Fi settings with VitOS Orbiter Press "OK" Press "Add Device"...
- Page 21 Quick Start Guide - B1 v1.1 Press "OK" Press "Once"...
- Page 22 Quick Start Guide - B1 v1.1 Press "indicator is blinking" Press "Setup this device"...
- Page 23 Quick Start Guide - B1 v1.1 Enter Wi-Fi password, Wait for the connection then press "Next" completed...
- Page 24 Quick Start Guide - B1 v1.1 Finding B1 in Press "Browse" to "Device" page enter main menu...
-
Page 25: Bluetooth Connection
Quick Start Guide - B1 v1.1 Bluetooth Connection After processing,go to "Setting" Press the "RESET" button on the rear Press "Bluetooth" to setup on your phone to discover and connect panel, and wait for 5 seconds the available "Bremen B1 XXXX" 00:05... -
Page 26: Use Another Device To Connect Bluetooth
Use Another Device to Connect Bluetooth Press the "RESET" Go to "Setting" on your phone to Press "Bluetooth" to button at rear panel, and wait for discover Bluetooth Device enter Bluetooth mode 5 seconds to process "Bremen B1 XXXX" and connect 00:05... - Page 27 Quick Start Guide - B1 v1.1 Trademark Attribution Notice Windows is a trademark or registered trademarks of Microsoft Corporation in the United States and other countries. iOS is a trademark or registered trademark of Cisco in the U.S. and other countries.Android is a trademark of Google LLC, registered in the U.S.
