AIMS Power SCC11ARPM Quick Start Manual

Quick Start Guide
Solar Charge Controller SCC11ARPM

Features

IP68 waterproof design
12V battery systems
Charges most battery types including lithium
PWM 2-stage charger
LED status indicators
PV MC4 input and output connectors
Extended leads for installation flexibility
1 ft input and 5ft output leads

Dimensions

2.5"
Solar Charge Controller
3"
3.25"

Wiring Instructions

Use caution when wiring your solar system. Light creates live
power. To connect always connect the battery first, positive
then negative. Once battery is connected, attach solar panel.
To disconnect always disconnect the panel first, then battery.
AIMS Power recommends using 10 AWG waterproof PV wire
and good quality MC4 connectors. NOTE POLARITY.
The battery input cable includes MC4 connectors to keep
"
the charge controller waterproof. You can use an extender
1.12"
cable (MC4 to lug ends) for your application. If you don't
1.7"
need an extender, simply cut off the MC4 connectors on the
"
battery output cable and add lugs. Make sure all
connections are tight and are good quality.
Solar Charge Controller

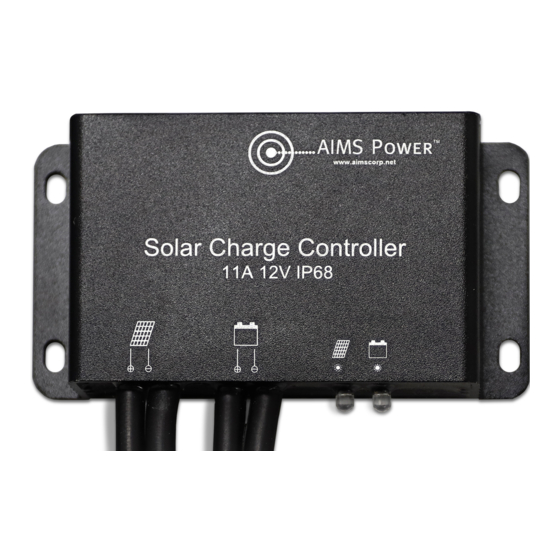

1. Solar Input Cable & Connector
2. Battery Output Cable & Connector
3. Solar Charge Indicator
4. Battery Status Indicator
