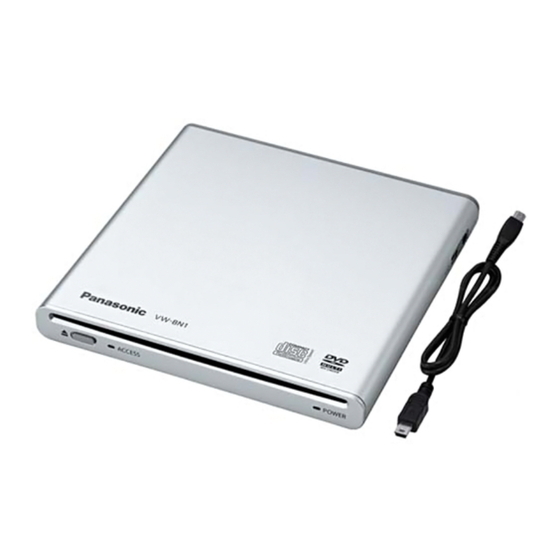

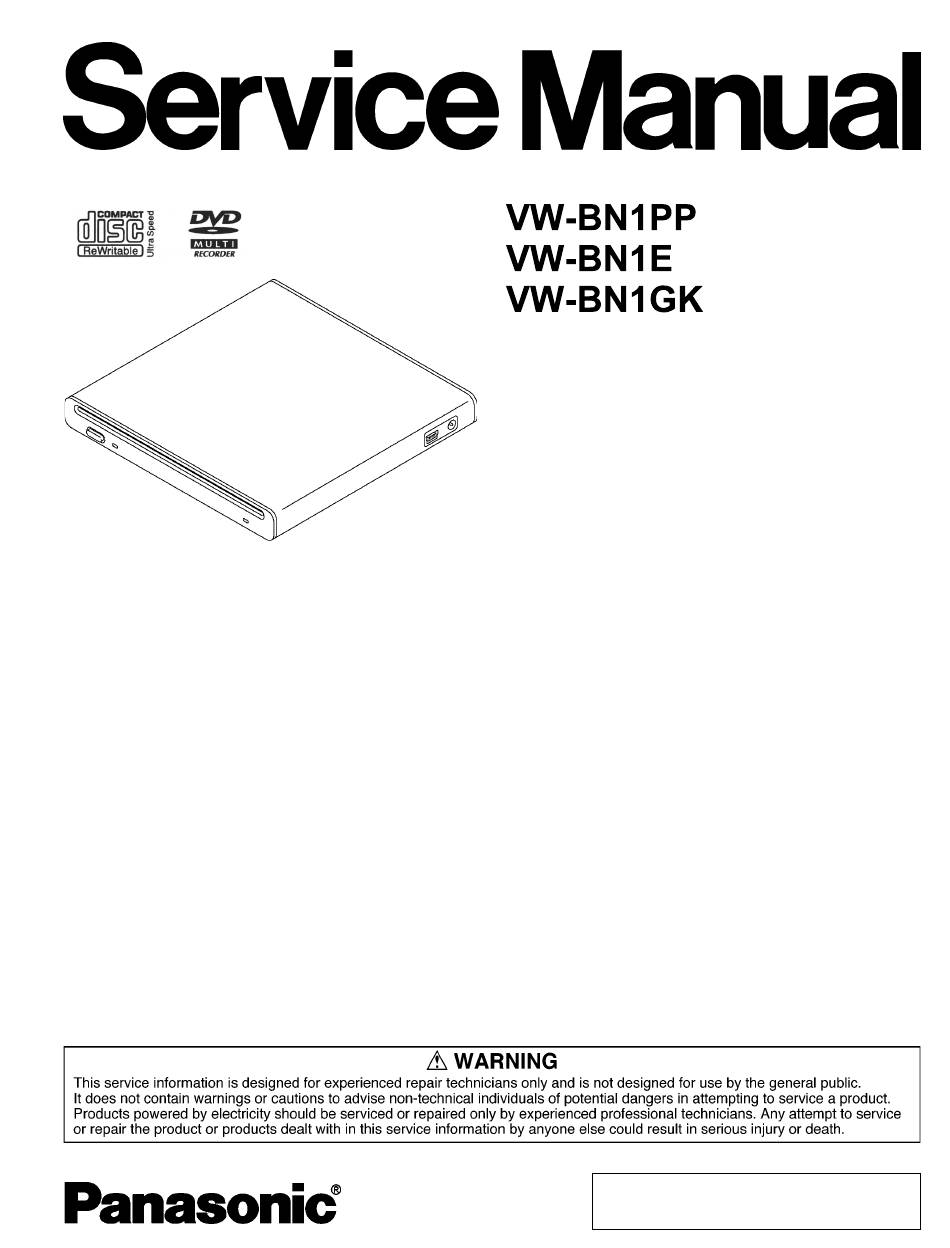

- Page 1 ORDER NO.VO0708003CE DVD Burner Colour (S)....Silver Type © 2007 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying distribution is a violation of law.
-
Page 2: Table Of Contents
VW-BN1PP / VW-BN1E / VW-BN1GK / CONTENTS Page Page 1 Safety Precaution 8 Measurements and Adjustments 1.1. General Guidelines 8.1. Service Positions 2 Warning 9 Block Diagrams 2.1. Prevention of Electrostatic Discharge (ESD) to 9.1. OVERALL BLOCK DIAGRAM Electrostatic Sensitive (ES) Devices 10 Schematic Diagrams 2.2. -
Page 3: Safety Precaution
VW-BN1PP / VW-BN1E / VW-BN1GK / 1 Safety Precaution 1.1. General Guidelines 1. IMPORTANT SAFETY NOTICE There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Layout, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent X-RADIATION, shock fire, or other hazards. -
Page 4: Warning
VW-BN1PP / VW-BN1E / VW-BN1GK / 2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatic Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip”... -
Page 5: Precautiopn Of Laser Diode
VW-BN1PP / VW-BN1E / VW-BN1GK / 2.2. Precautiopn of Laser Diode... -
Page 6: Service Caution Based On Legal Restrictions
VW-BN1PP / VW-BN1E / VW-BN1GK / 2.3. Service caution based on legal restrictions 2.3.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation. -
Page 7: Service Navigation
VW-BN1PP / VW-BN1E / VW-BN1GK / 3 Service Navigation 3.1. Service Information This service manual contains technical information which will allow service personnel´s to understand and service this model. Please place orders using the parts list and not the drawing reference numbers. -
Page 8: Specifications
VW-BN1PP / VW-BN1E / VW-BN1GK / 4 Specifications... -
Page 9: Location Of Controls And Components
VW-BN1PP / VW-BN1E / VW-BN1GK / 5 Location of Controls and Components... -
Page 10: Service Fixture & Tools
VW-BN1PP / VW-BN1E / VW-BN1GK / 6 Service Fixture & Tools 6.1. Service Tools and Equipment... -
Page 11: Disassembly And Assembly Instructions
VW-BN1PP / VW-BN1E / VW-BN1GK / 7 Disassembly and Assembly Instructions 7.1. Disassembly Flow Chart This flow chart indicates the disassembly steps the cabinet parts, P.C.B. and Mecha. Unit in order to access to be serviced. When reinstalling, perform the steps in the reverse order. -
Page 12: Measurements And Adjustments
VW-BN1PP / VW-BN1E / VW-BN1GK / 8 Measurements and Adjustments 8.1. Service Positions 8.1.1. List of the extension cables Use the following extension cables when checking individual circuit boards. 8.1.2. Checking and repairing individual circuit boards. How to use extension cables. -
Page 13: Block Diagrams
VW-BN1PP / VW-BN1E / VW-BN1GK / 9 Block Diagrams 9.1. OVERALL BLOCK DIAGRAM DVD DRIVE UNIT SODC IC4002 (SUPER OPTICAL DISC CONTROLLER) JK9001 (USB-ATAPI BRIDGE) (USB) MAIN IDE RESET IC9001 IDE A0 RS DP IDE A1 OPTICAL PICK-UP IDE A2... - Page 14 VW-BN1PP / VW-BN1E / VW-BN1GK /...
-
Page 15: Schematic Diagrams
VW-BN1PP / VW-BN1E / VW-BN1GK / 10 Schematic Diagrams 10.1. MAIN SCHEMATIC DIAGRAM IMPORTANT SAFETY NOTICE: NOTE: NOTE: For placing a purchase order of the parts, FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. -
Page 16: Sub Schematic Diagram
VW-BN1PP / VW-BN1E / VW-BN1GK / 10.2. SUB SCHEMATIC DIAGRAM NOTE: NOTE: For placing a purchase order of the parts, FOR SCHEMATIC DIAGRAM AND CIRCUIT BOARD LAYOUT NOTES, be sure to use the part number listed in the parts list. -
Page 17: Printed Circuit Board
VW-BN1PP / VW-BN1E / VW-BN1GK / 11 Printed Circuit Board 11.1. MAIN P.C.B. (LSEP8427A1) (COMPONENT SIDE) VW-BN1PP/E/GK (FOIL SIDE) MAIN P.C.B. - Page 18 VW-BN1PP / VW-BN1E / VW-BN1GK / NOTE: MULTI-LAYER P.C.B. IMPORTANT SAFETY NOTICE: THIS P.C.B. IS Multi-Layer P.C.B. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN COMPONENTS IDENTIFIED BY THE SIGN HAVE SPECIAL CHARACTERISTICS IMPORTANT FOR SAFETY. FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH WHEN REPLACING ANY OF THESE COMPONENTS, USE ONLY THE SPECIFIED PARTS..
-
Page 19: Sub P.c.b
VW-BN1PP / VW-BN1E / VW-BN1GK / 11.2. SUB P.C.B. (LSEP8428A1) NOTE: MULTI-LAYER P.C.B. NOTE: THIS P.C.B. IS Multi-Layer P.C.B. THIS CIRCUIT BOARD SHOWS COMPONENT LAYOUT-PATTERN CIRCUIT BOARD LAYOUT SHOWS COMPONENTS INSTALLED FOR VARIOUS MODELS. FOR COMPONENT SIDE AND FOIL SIDE. LAYOUT-PATTERNS ARE SINGLE PATTERN FOR EACH FOR PROPER PARTS CONTENT FOR THE MODEL YOU ARE SERVICING, SIDE THAT MAKE EASY TO SIGHT THE COMPONENT LAYOUT. - Page 20 VW-BN1PP / VW-BN1E / VW-BN1GK /...
-
Page 21: Appendix Infomation Of Schematic Diagram
VW-BN1PP / VW-BN1E / VW-BN1GK / 12 Appendix Infomation of Schematic Diagram 12.1. Voltage Chart Note) Circuit voltage and waveform described herein shall be regarded as reference information when probing defect point, because it may differ from an actual measuring value due to difference of Measurring instrument and its measuring condition and product itself. -
Page 22: Parts And Exploded Views
VW-BN1PP / VW-BN1E / VW-BN1GK / 13 Parts and Exploded Views 13.1. Exploded Views 13.1.1. Frame & Casing Section... - Page 23 VW-BN1PP / VW-BN1E / VW-BN1GK / 13.1.2. Packing & Accessories Section...
-
Page 24: Replacement Parts List
VW-BN1PP / VW-BN1E / VW-BN1GK / 13.2. Replacement Parts List Ref. Part No. Part Name & Remarks Description C4007 ECJ0EB1C103K C.CAPACITOR CH 16V Notes: 0.01U *Important safety notice: C4008 ECJ0EB1C103K C.CAPACITOR CH 16V 0.01U Components identified mark have special C4009 ECJ0EC1H080D C.CAPACITOR CH 50V... - Page 25 VW-BN1PP / VW-BN1E / VW-BN1GK / Ref. Part No. Part Name & Remarks Ref. Part No. Part Name & Remarks Description Description R1205 ERJ2RHD163X M.RESISTOR CH R4050 ERJ2GEJ470X M.RESISTOR CH 1/16W 16K 1/16W 47 R1206 ERJ2GE0R00X M.RESISTOR CH R4051 ERJ2GEJ470X M.RESISTOR CH...
