Velleman CARS5000 Manual

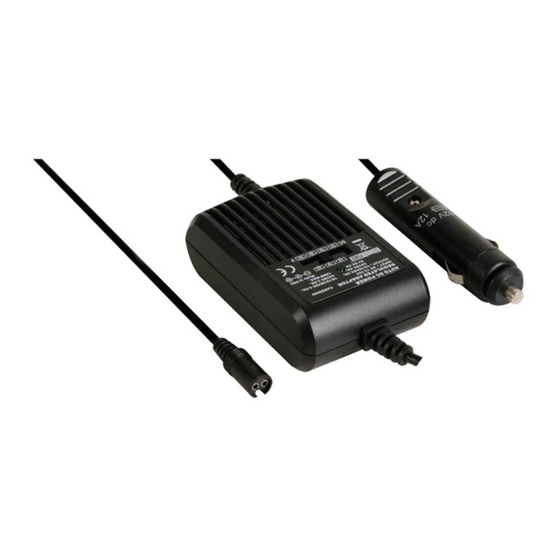

REGULATED SW I TCH I N G M OD E CAR AD APTER 1 0 0 W + USB
1 . I nt r oduct ion
To a ll r e side nt s of t he Eur ope a n Un ion
I m por t a nt e nvir onm e nt a l infor m a t ion a bout t his pr oduct
This sym bol on t he device or t he package indicat es t hat disposal of t he dev ice aft er it s lifecycle could harm t he
environm ent . Do not dispose of t he unit ( or bat t eries) as unsort ed m unicipal wast e; it should be t aken t o a
specialized com pany for recycling. This device should be ret urned t o your dist ribut or or t o a local r ecycling
service. Respect t he local environm ent al rules.
I f in doubt , cont a ct your loca l w a st e disposa l a ut hor it ie s.
Thank you for choosing Vellem an! Please read t he m anual thoroughly before bringing t his device into service. I f the device was
dam aged in transit , don't inst all or use it and cont act your dealer.
out put volt a ge cur r e nt
15- 16V 5A
18- 19- 20V 4.5A
22V 4A
24V 3.5A
5V ( USB) 2A
2 . Sa fe t y I nst r uct ions
Ke e p t he de vice a w a y fr om childr e n a nd una ut hor iz e d use r s.
FOR I N D OOR USE ON LY. Keep t his device away from rain, m oist ure, splashing or dripping liquids.
Never put obj ect s filled wit h liquid on t op of or close t o t he device.
Protected t he device against extrem e heat and dust .
D O N OT disassem ble or open t he cover. No user- serviceable part s inside. Refer t o an aut horized dealer
for service and/ or spare part s.
• Dam age caused by disregard of certain guidelines in t his m anual or by user m odificat ions to t he device is not covered by
the warrant y and the dealer will not accept responsibilit y for any ensuing defects or problem s. All m odificat ions of t he
device are forbidden for safet y reasons.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void t he warranty.
• Protect this device from shocks and abuse. Avoid brute force when operat ing the device.
• Fam iliarise yourself with the funct ions of t he device before actually using it .
3 . Caut ion
• Alw ays m ak e sure t he load on t he adapter does not exceed the rated out put current of t he power supply (see t able).
• Do not use t his adapt er wit h an appliance t hat requires m ore t han 1 0 0 W .
• For 1 2 VD C car use only! I nput volt age m ust be bet ween 12VDC and 16VDC.
• Alw a ys st art t he car engine before plugging t he adapt er in t he cigaret t e socket .
• Alw a ys swit ch t he connect ed device off before disconnect ing t he adapt er.
4 .

Use

• Use t he swit ch on the front of t he device to select 15, 16, 18, 19, 20, 22 or 24 VDC out put , or use the USB port for a fixed
5VDC out put . Ma k e sur e t he connect ed device com plies w it h t he select ed volt age, current a nd polar it y!
• Determ ine t he proper connector plug.
• The connector t ip is posit ive. I nsert t he plug in
the j ack (see drawing) .
• I nsert t he ot her end of the plug in a suit able device
and plug t he car plug into t he cars socket. A green
LED indicates t hat t he device is powered. Switch on
the appliance.
• When using t he USB port , connect t he included
USB cable to t he USB port of t he adapter, and
insert a plug as described above. Note t hat t he plugs for USB applicat ions only fit in the j ack of t he USB cable. DO N OT
force!
The r e t a ile r a nd t he dist r ibut or w ill not be he ld r e sponsible for da m a ge d or lost soft w a r e or da m a ge
t o a con n e ct e d de vice
5 .

Fuse

• The fuse is located inside the car plug. Sim ply unscrew t he t ip of the plug to release t he fuse.
• Alw ays replace the fuse with an ident ical rated fuse (12A) .
Use t his de vice w it h or igina l a cce ssor ie s only. V e lle m a n nv ca nnot be h e ld r e sponsible in t he e ve nt of da m a ge
or inj ur y r e sult e d fr om ( incor r e ct ) use of t his de vice .
For m or e in fo con ce r n in g t h is pr odu ct , ple a se visit ou r w e bsit e w w w .ve lle m a n .e u .
The in for m a t ion in t his m a nua l is subj e ct t o cha nge w it hout pr ior not ice .
CARS5 0 0 0
plug dim e nsions
A 2.1/ 5.5 x 12m m
B 2.5/ 5.5 x 12m m
C 1.7/ 4.75 x 9.5m m
D 3.0/ 6.3 x 14m m
E 4.4/ 6.5 x 14m m ( pin 1.4m m )
plug dim e nsions
F Dell plug
G 3.4/ 5.0 x 11.5m m ( pin 1.0m m )
H 1.9/ 5.5 x 12.3m m
K 5.1/ 7.4 x 12m m
USB 7 int erchangeable plugs available
