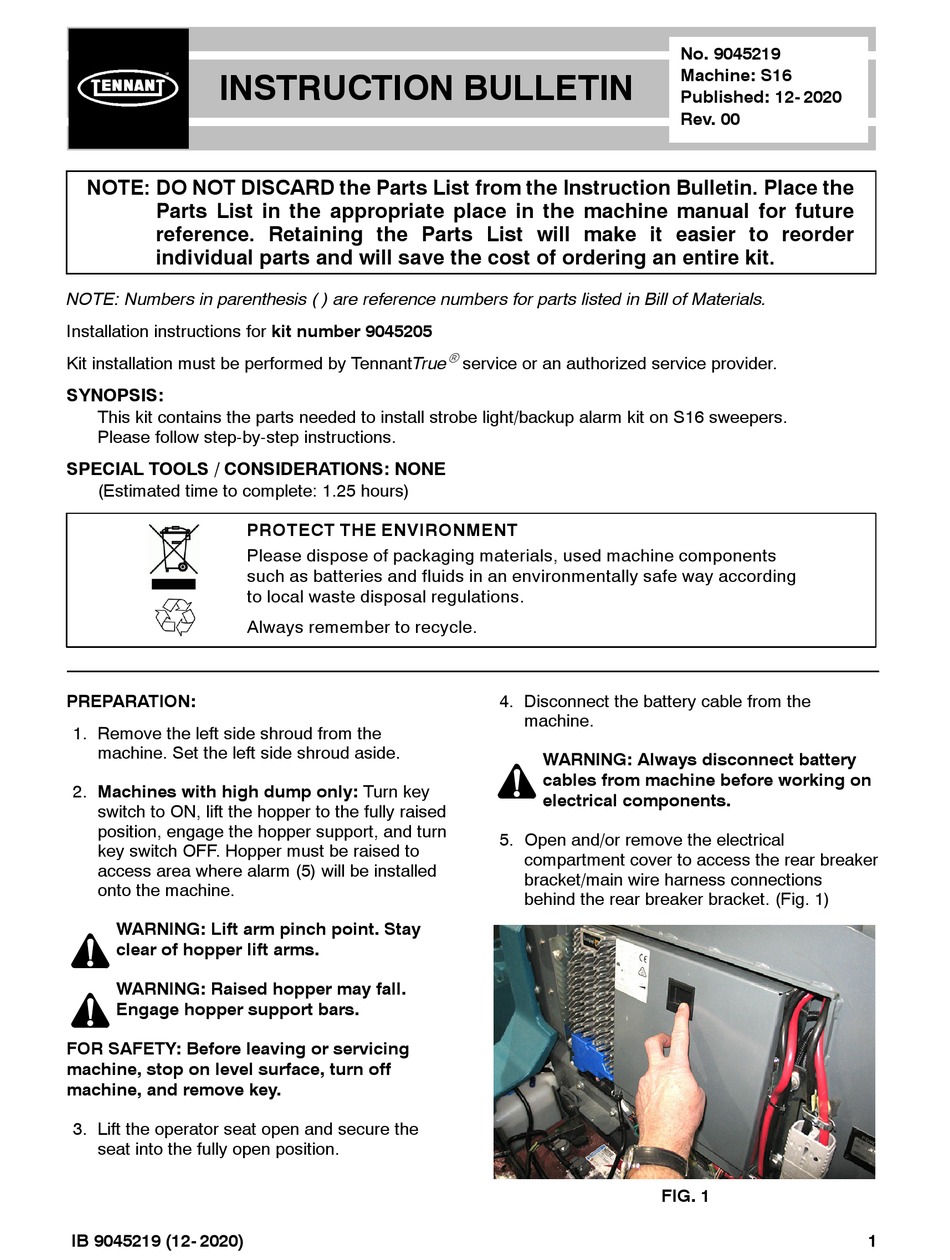

INSTRUCTION BULLETIN
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9045205
Kit installation must be performed by TennantTrue
SYNOPSIS:
This kit contains the parts needed to install strobe light/backup alarm kit on S16 sweepers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1.25 hours)
PREPARATION:
1. Remove the left side shroud from the
machine. Set the left side shroud aside.
2. Machines with high dump only: Turn key
switch to ON, lift the hopper to the fully raised
position, engage the hopper support, and turn
key switch OFF. Hopper must be raised to
access area where alarm (5) will be installed
onto the machine.
WARNING: Lift arm pinch point. Stay
clear of hopper lift arms.
WARNING: Raised hopper may fall.
Engage hopper support bars.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
3. Lift the operator seat open and secure the
seat into the fully open position.
IB 9045219 (12- 2020)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
service or an authorized service provider.
4. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
5. Open and/or remove the electrical
compartment cover to access the rear breaker
bracket/main wire harness connections
behind the rear breaker bracket. (Fig. 1)
No. 9045219
Machine: S16
Published: 12- 2020
Rev. 00
FIG. 1
1
Advertisement
Table of Contents
Summary of Contents for Tennant 9045205
- Page 1 NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials. Installation instructions for kit number 9045205 Kit installation must be performed by TennantTrue service or an authorized service provider.
- Page 2 INSTALLATION: 11. Remove the hardware securing the control panel to the front shroud and carefully lift the 1. Route the light harness (10) through the the control panel from the shroud. Do not break leg of the light bracket (1) that will be installed any wire or cable connection when lifting the on the left side of the machine.
- Page 3 FIG. 2 FRONT Route light harness down Control through this leg panel of light bracket Front shroud Bulk head bracket FRONT FIG. 3 IB 9045219 (12- 2020)
- Page 4 FIG. 4 IB 9045219 (12- 2020)
- Page 5 Bill Of Materials For Light Kit, Strobe/BU Alarm, CI [S16] - 9045205 Tennant Part No. Ref. Description Qty. 1251334 Bracket Wldt, Light 1020341 Screw, Hex, M8 X 1.25 X 29, SS, SEMS 1075283 Light, Strobe, Amb, 12- 48VDC [LED] 1205799 Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx...
