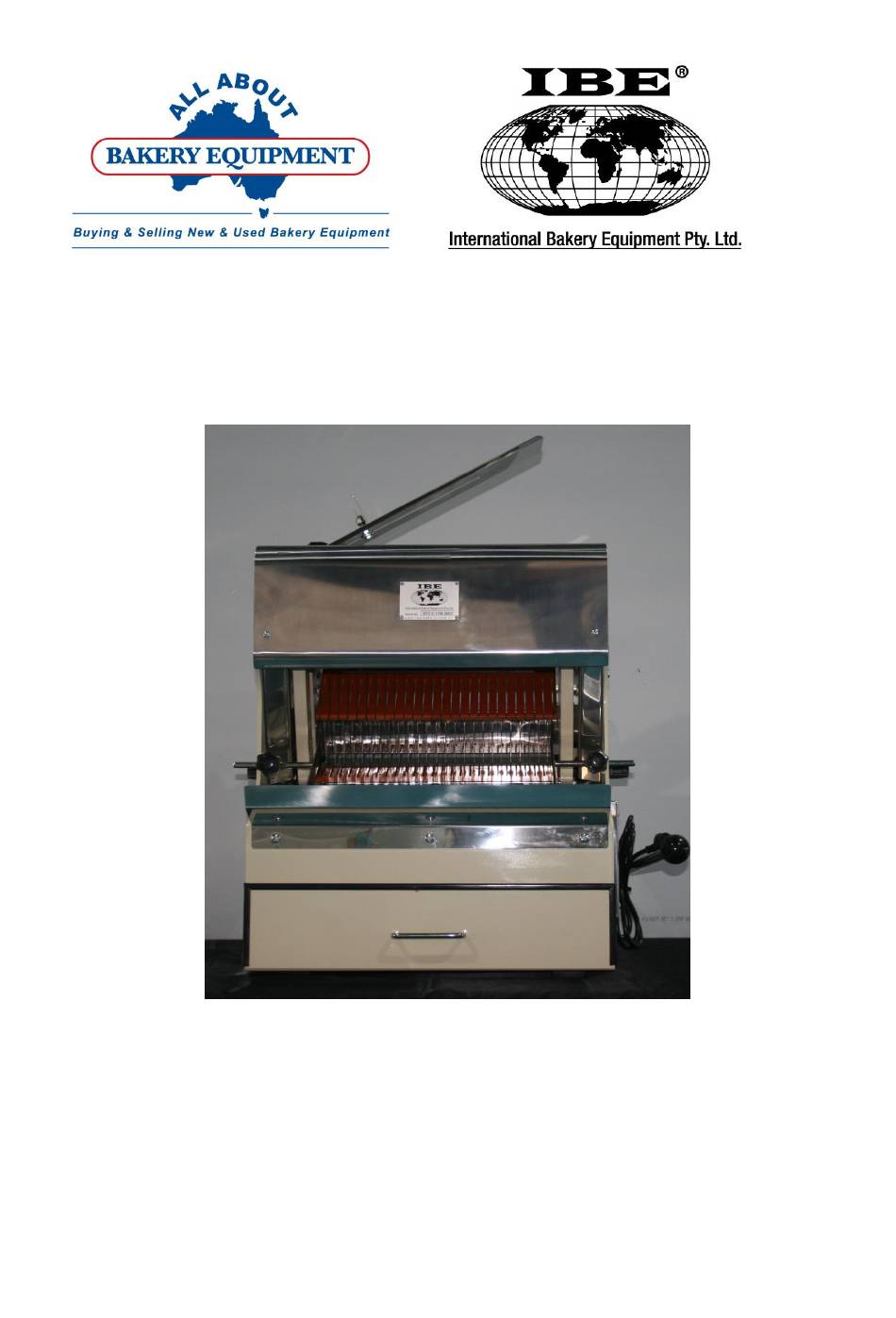

- Page 1 Instruction Manual for Bread Slicer BTS15 INSTRUCTION MANUAL BREAD SLICER MODEL: BTS15 www.allaboutbakery.com.au...
-
Page 2: Table Of Contents
Instruction Manual for Bread Slicer BTS15 Contents 1. General Information: 1- Documentation supplied: 2- Contact details 3- Use of this manual 4- Intellectual property rights 5- Warranty terms and conditions 6- Machine specifications 7- Machine identification details 8- Main components of the machine... -
Page 3: General Information
Instruction Manual for Bread Slicer BTS15 1. General Information: 1.1 Documentation supplied Instruction manual Spare parts list Wiring diagrams 1.2 Contact Details International Bakery Equipment Pty Ltd t/as All About Bakery Equipment Address: 20 Brewer Street, CLONTARF QLD 4019... -
Page 4: 4- Intellectual Property Rights
Instruction Manual for Bread Slicer BTS15 1.4 Intellectual Property Rights This manual contains copyright information. All rights are reserved. No part of this manual can be reproduced or photocopied without prior written permission of International Bakery Equipment Pty Ltd. Permission to use this documentation has only been given to the customer who this manual has been supplied as part of the machine’s equipment and only for... -
Page 5: 6- Machine Specifications
Instruction Manual for Bread Slicer BTS15 Note: I.B.E. reserves the right to make the final decision on all Warranty coverage Pty Ltd questions. The decision of the Company is final. What is covered under this Warranty: Parts that fail due to defects in material workmanship. -
Page 6: 7- Machine Identification Details
Instruction Manual for Bread Slicer BTS15 Power Supply Details: Single Phase, 10amp 3-pin plug top (supplied) Note: Loaves per hour are dependant on the slicer operator. The manufacturer will not be liable for electrical defects, breakdowns or malfunctioning of the machine for the non-compliance with the power supply stated. -
Page 7: 8- Main Components Of The Machine
Instruction Manual for Bread Slicer BTS15 1.8 Main Machine Components Bagging Spoon Slicing Blades Lift handle upwards to open pusher of slicer Out feed chute, with Guides Handle for Safety Loaf Pusher Handle Bread crumb Draw www.allaboutbakery.com.au... -
Page 8: Transport And Installation
Instruction Manual for Bread Slicer BTS15 1.9 Safeguards This machine has been fitted with safeguards to ensure safe operation of this machine, in accordance please ensure the following; Ensure training in the safe operation of this machine is carried out with all operators. - Page 9 Instruction Manual for Bread Slicer BTS15 Do not climb on or place body under machine crate when it is being lifted from the ground or transport veichcle. When lifting the machine crate ensure forks are spread to the maximum width of the crate and the crate is against the cradle of the forklift (Fig2.1).
-
Page 10: 3- Testing & Safeguards
Instruction Manual for Bread Slicer BTS15 2.3 Testing the safeguards Before starting the machine, the safety devices should be checked according to the following procedure: When the handle is lifted up fully, ensure the safety guard is opening and the power is shut off. -
Page 11: Cleaning & Maintenance
Instruction Manual for Bread Slicer BTS15 4. Cleaning & Maintanance: 4.1 Cleaning Always turn power off at the wall and unplug machine prior to any cleaning or maintenance procedures to be carried out. Keeping the machine cleaned helps to maintain the efficient hassle free operation of the machine. - Page 12 Instruction Manual for Bread Slicer BTS15 4.2 Maintenance It is recommended that this machine should be serviced once every 12 months by a qualified technician to maintain hassle free operation (blades may need changing more frequently). If in the event the machine does not operate correctly it is recommended that you contact your supplier to ensure a qualified technician services the machine for you.
- Page 13 Instruction Manual for Bread Slicer BTS15 Screw out, then you can loosen the tension of the blade in order to change the blade (see figure 4.2b) Figure 4.2b Replacing Slicing Blades Adjusting the Belt of the Drive Pulley Should the tension of the belt of the drive pulley (No. 1) becomes loose or tight occasionally and causes slicing to be inefficient, you will need to adjust the belt.
- Page 14 Instruction Manual for Bread Slicer BTS15 Note: Any attempt to modify this machine in any way will result in the warranty being voided. Tampering with the mechanical or electrical systems in this machine will void warranty. 4.2 Spare Parts Lists and Diagrams a.
- Page 15 Instruction Manual for Bread Slicer BTS15 Diagram 4.2a Machine Body www.allaboutbakery.com.au...
- Page 16 Instruction Manual for Bread Slicer BTS15 PARTS - Machine Body Description Description Body Fixing Plate Crumb Drawer Rubber Ring Bolt 3/16”*3/16” Upper Lid Bolt ¼” 3/8” Rear Guide Board Bolt 5/6”*3/8” Front Guide Board Right side cover Screw Seat Bolt 5/6”*3/8”...
- Page 17 Instruction Manual for Bread Slicer BTS15 Diagram 4.2b Knives Frame Unit PARTS - Knives Frame Unit Knives Frame A Knives Frame B Frame Holder Fixed Plate Knives Hook Full Set of Blades Fixed Nail Knives Knives Holder Set Screw ½”*1-½”...
- Page 18 Instruction Manual for Bread Slicer BTS15 Diagram – 4.2c – Upper Comb Unit PARTS - Upper Comb Unit Guide Arm Pressing Guide Board Bush Axle Spring Bolt 5/16”*½” Washer 5/16” Nut 5/16”*18NC Bolt ¼”*5/8” Washer 5/16” Bolt 5/16”*5/8” Upper Comb Fixing Plate www.allaboutbakery.com.au...
- Page 19 Instruction Manual for Bread Slicer BTS15 Diagram 4.2d – Pusher Unit PARTS - Pusher Unit Description Description Knob Starting Crank Screw Shaft Pusher Axle Fork-Pusher Wheel Support Washer ¼” Rod-Right Rod- Left Ball Bearing 6204 Washer 3/8” Slide Seat-Right Slide Seat – Left Bolt ¼”*1”...
- Page 20 Instruction Manual for Bread Slicer BTS15 Diagram 4.2e – Motor Unit PARTS – Motor Unit Description Description Bolt ½”*3 Motor Nut 5/16” Motor Bearing Bolt 5/16”*5/8” Shaft-Motor Bearing Bearing Housing Ball Bearing 6205 Bush Ball Bearing 6203 Pulley Ball Bearing 6204...
- Page 21 Instruction Manual for Bread Slicer BTS15 Diagram 4.2f – Transmission Unit PARTS – Transmission Unit Description Description Shaft Bearing Support Shaft Housing Washer ¼” Spring Washer ¼” Crank-Knives Frame Bolt ¼”*5/8” Clamp Block Bolt ¼”*½” Support Shaft Bolt ¼”*1” Clamp Ring Bolt 5/16”*1”...
- Page 22 Instruction Manual for Bread Slicer BTS15 Diagram 4.2g – Safety Guard PARTS – SAFETY GUARD Description Description Safety Guard Bush Left Cover Spacer Cap Screw ¼”*5/16” Right Cover Bolt ¼”*5/8” Fixing Plate Pin 3*L1” Support Shaft Set Screw 3/16”*5/16” Support Shaft Bolt 3/16”*5/8”...
- Page 23 Instruction Manual for Bread Slicer BTS15 4.3 Electrical Wiring Diagram www.allaboutbakery.com.au...
