Summary of Contents for dtm Azymut

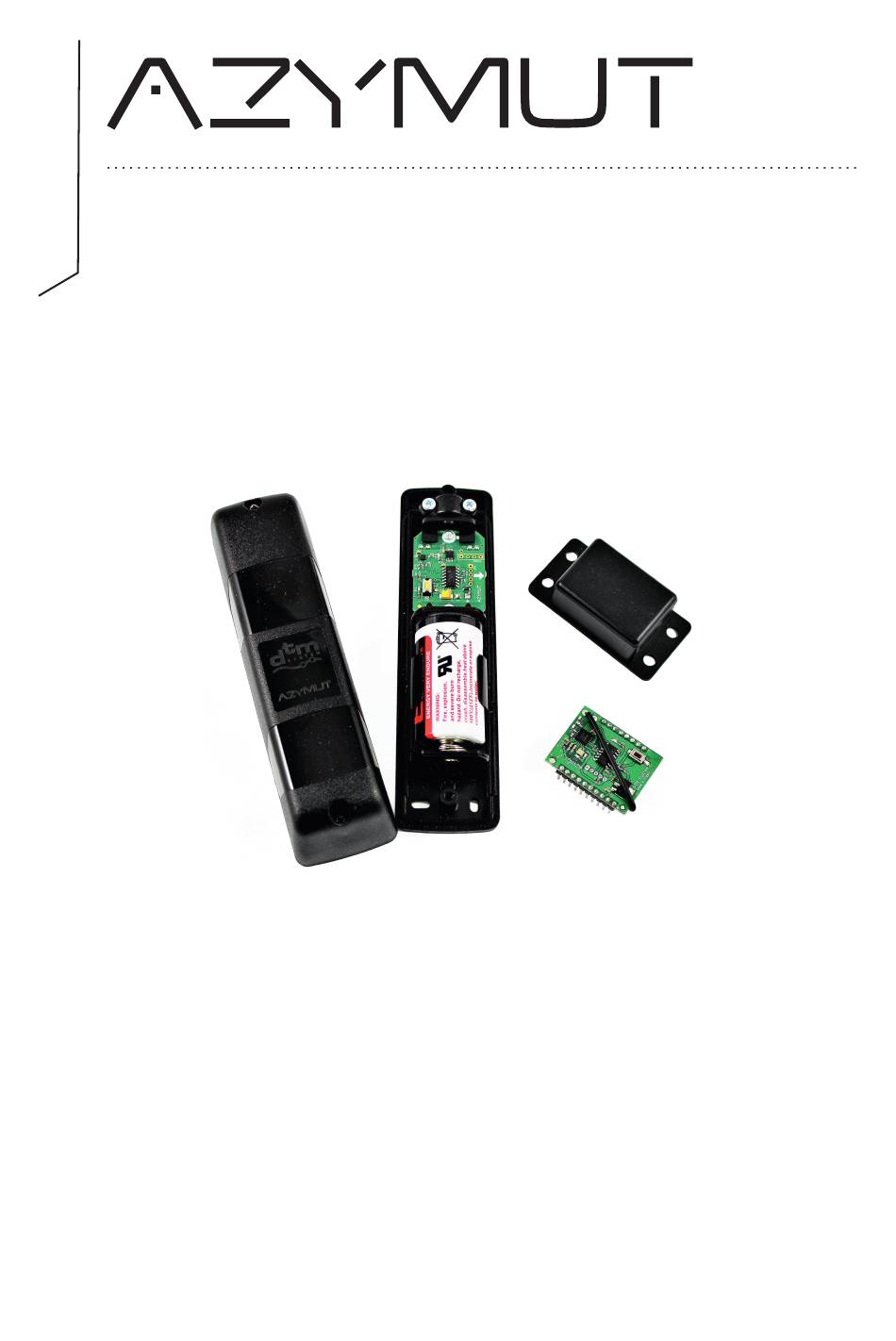

- Page 1 WIRELESS GATE STATE SENSOR v.1.5 Installation and operating manual www.dtm.pl...
- Page 2 WARNING ! ! ! The set includes a neodymium magnet that generates a very strong magnetic field. Neodymium magnets, due to their strong magnetic field, should not be close to any kind of data carriers and electronic and electrical equipment as well as RTV and household appliances. In particular, NEVERAPPROACH devices such as:...

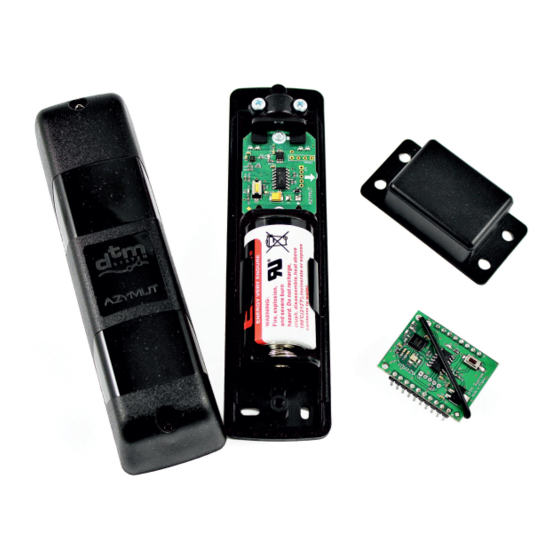

- Page 3 GENERAL INFORMATION Azymut is a wireless, magnetic gate state sensor designed to work with a FLEX receiver. MODULES AND TECHNICAL DATA Azymut consists of three modules: AZ-TX transmitter for mounting on the gate frequency: channel 1 - 868.45MHz, channel 2 - 868.31MHz, channel 3 - 868.18MHz...
- Page 4 MONTAGE The AZYMUT sensor is designed to work with the FLEX receiver. It can be mounted on gates of any type. The distance between the AZ-MG magnet and the AZ-TX transmitter with the gate closed should be in the range of 1-30 cm...
- Page 5 One-leaf gate 1. Mount the AZ-FLEXRX receiving module in the FLEX receiver (Fig. 3). Set the input in the signaling mode in the FLEX receiver menu - 'Sr.St = on' option (see the FLEX receiver manual). 2. Mount theAZ-MG magnet on the post,AZ-TX transmitter on the gate wing (or vice versa), in such a way that the magnet and the transmitter are opposite each other when the gate is closed (Fig.5).
- Page 6 PRESENTATIONOFTHEGATESTATE Appropriate mounting of the AZYMUT sensor allows you to check the gate state on a mobile device or computer. The status of the gate is visible after adding a FLEX receiver, equipped with an WL card, to the CloudFlex account (www.cloudflex.dtm.pl), and in the V-PILOT mobile application available for...
- Page 7 CHANGINGTHE RADIOCHANNELOFTRANSMITTER - RECEIVERCOMMUNICATION The set communicates with each other on one of three frequencies. In the case of work in the vicinity of several sets of transmitter - receiver, for operational reliability, it is recommended to set a different radio channel for communication between the transmitter and the receiver in each set.
- Page 8 DTM System hereby declares that the device complies with Directive 2014/53 / EU. The full text of the EU Declaration of Conformity is available at www.dtm.pl. DTM System ul. Brzeska 7, 85-145 Bydgoszcz, Polska, tel. +48 52 340 15 83, www.dtm.pl...
